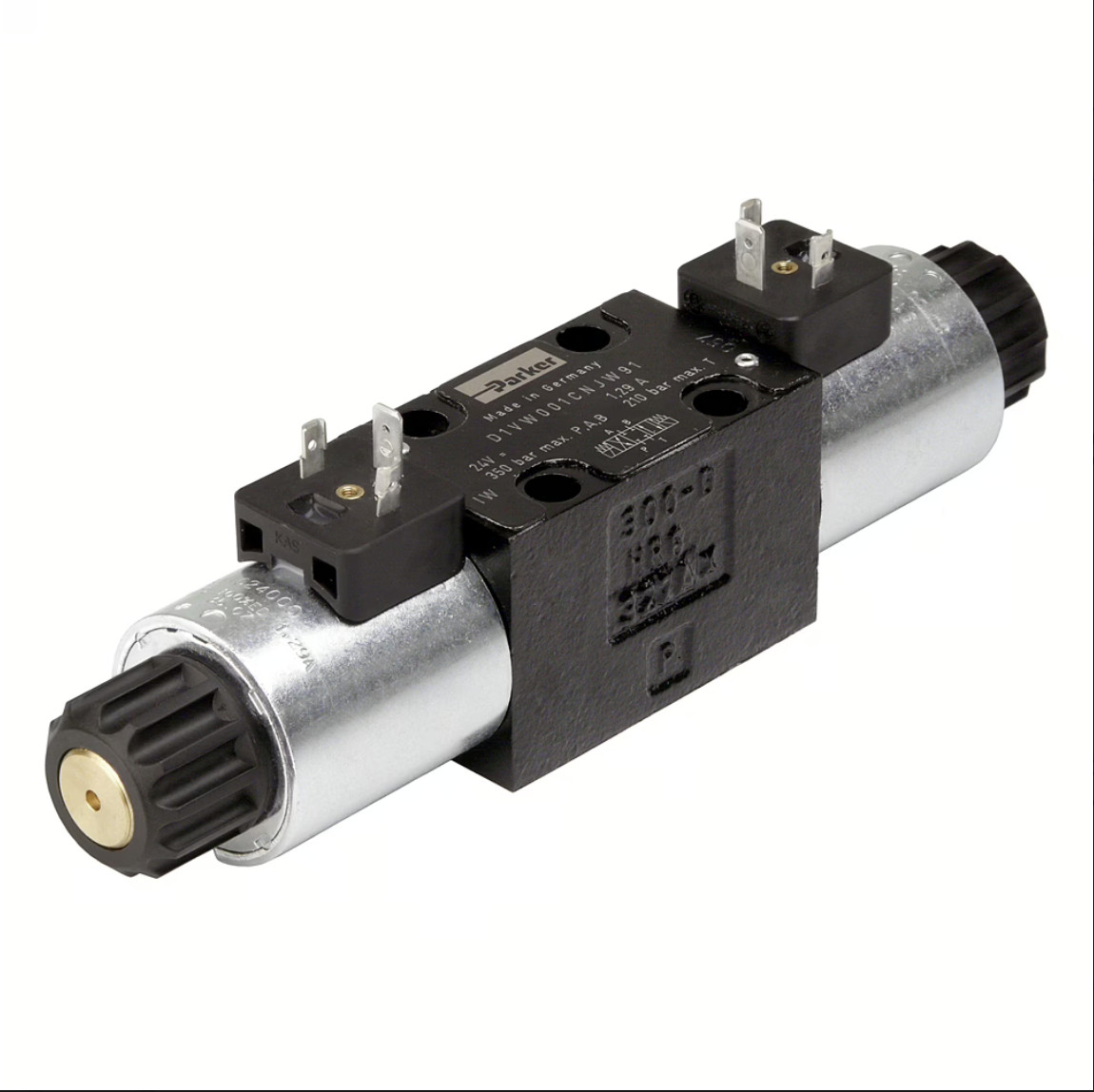

Directional Control Valve - Series D1VW

Brand : Parker

Vitillo Electromagnetic Valves Directional Control Valve - Series D1VW

The directional control valve is based on the standard D1VW design. The low watt, low current solenoid (< 0.5 A) of this on/off valve allows a direct connection to a PLC.

Product series:Directional control valvePort Connection:NG06 / CETOP 03
Mounting type:subplate mountingMounting position:Unrestricted, preferably horizontal
Operation type:DirectActuation type:Solenoid
Input voltage:24 VDCBody material:Cast Iron
Function:2-way, 3-wayMaximum operating pressure:350 Bar
Maximum flow rate:60 L/minMaximum operating temperature:60 C
Minimum operating temperature:-25 CFor fluid type:Hydraulic oil, Water glycol
Seal material:NBR, FPMWeight:With 1 solenoid - 1.5kg, with 2 solenoid - 2.1kg
