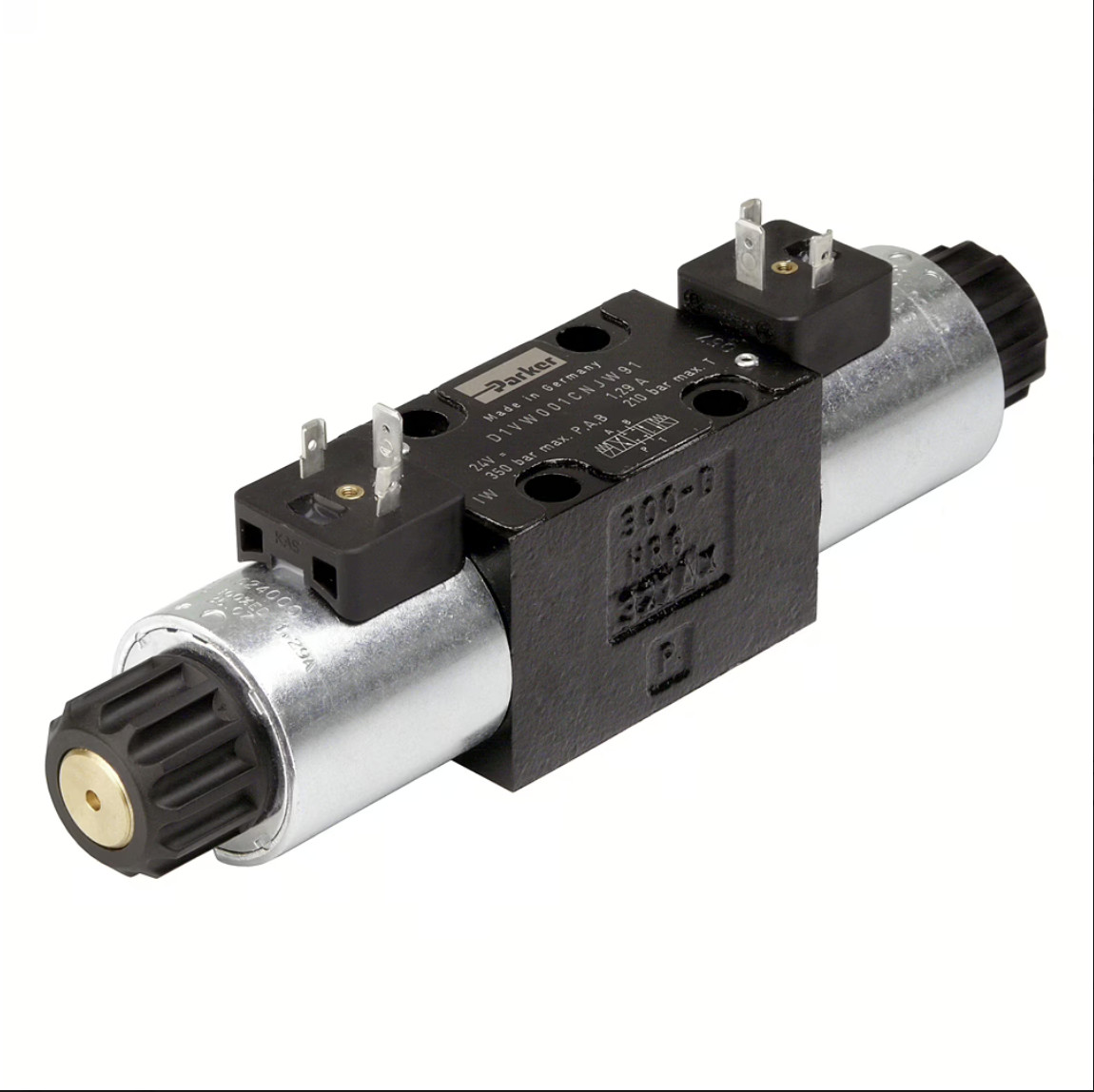

The directional control valve is based on the standard D1VW design. The low watt, low current solenoid (< 0.5 A) of this on/off valve allows a direct connection to a PLC.
| Product series: | Directional control valve | Port Connection: | NG06 / CETOP 03 |
| Mounting type: | subplate mounting | Mounting position: | Unrestricted, preferably horizontal |
| Operation type: | Direct | Actuation type: | Solenoid |
| Input voltage: | 24 VDC | Body material: | Cast Iron |
| Function: | 2-way, 3-way | Maximum operating pressure: | 350 Bar |
| Maximum flow rate: | 60 L/min | Maximum operating temperature: | 60 C |
| Minimum operating temperature: | -25 C | For fluid type: | Hydraulic oil, Water glycol |
| Seal material: | NBR, FPM | Weight: | With 1 solenoid - 1.5kg, with 2 solenoid - 2.1kg |
