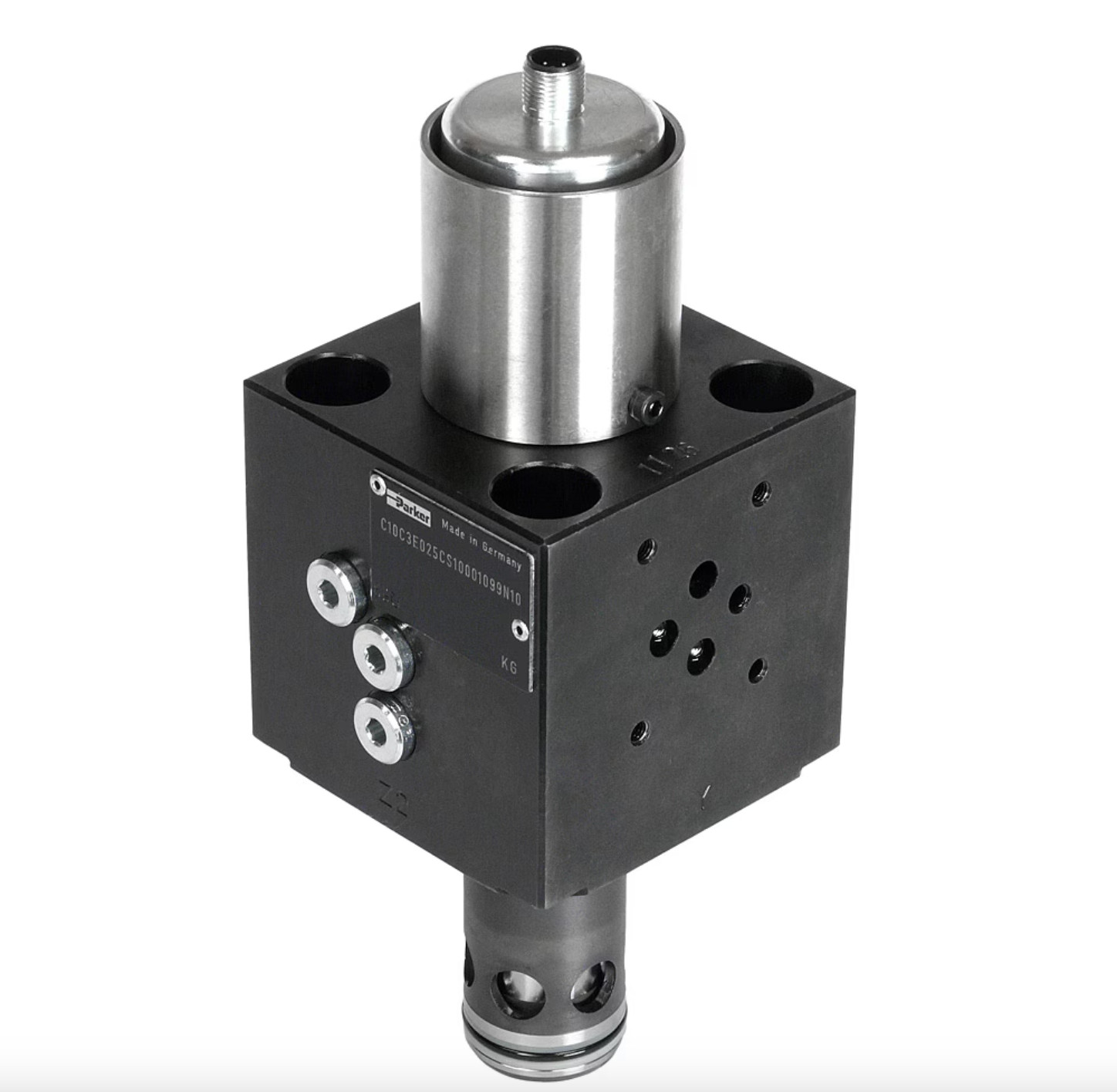

Parker 2/2-way seat valves series C10C*E in slip-in cartridge design are the preferred choice for safety-relevant applications because they enable a reliable shut-off and safe hold of loadings. C10 valves are equipped with an inductive switch to monitor the closed position. The poppet has a 60/40 area ratio (AA = 0.6 AC, AB = 0.4 AC) and is capable for flow in both directions.

The safety overlap of the poppet avoids opening of the valve before the signal of the inductive switch has changed. For sizes NG80 and NG100 a proximity switch is used.

Markets:
• Industrial

Features/Benefits:
• Cavity and mounting pattern according to ISO 7368 - for quick, easy integration
• 8 sizes, NG16 up to NG100 - allows extremely variable use
• Poppet with safety overlap - guaratees safe switching
• Short delivery time for most sizes - no warehousing necessary
• Cover to mount a directional control valve (on the side) for cover 3 (only for sizes NG16 to NG63, not included in the delivery)
• Monitored closed position
• Inductive switch CE conform
• Optionally with poppet sealing between pilot flow C and port B

Applications:
• Suitable for general hydraulic applications
• General presses
• Die cast
