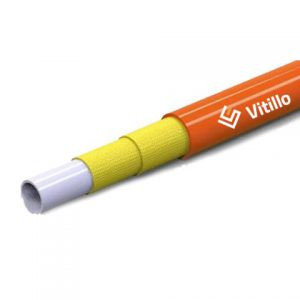

TEKNO R8 NON CONDUCTIVE

Brand : Vitillo


Code	D.N.	Hose size	Outside Diameter	Max Working Pressure	Minimum Burst Pressure	Minimum Bend Radius	Weight	Cover Type
THR802NC	3	3.5 mm 1/8 “	7.1 mm 0.28 inch	420 bar 6090 psi	1680 bar 24360 psi	30 mm 1.18 inch	0.04 kg/mt 0.02 lb/ft	Standard
THR803NC	5	4.8 mm 3/16 “	10.0 mm 0.39 inch	350 bar 5075 psi	1400 bar 20300 psi	35 mm 1.38 inch	0.07 kg/mt 0.05 lb/ft	Standard
THR804NC	6	6.4 mm 1/4 “	11.8 mm 0.46 inch	350 bar 5075 psi	1400 bar 20300 psi	50 mm 1.97 inch	0.09 kg/mt 0.06 lb/ft	Standard
THR805NC	8	8.0 mm 5/16 “	14.3 mm 0.56 inch	325 bar 4712 psi	1300 bar 18850 psi	60 mm 2.36 inch	0.13 kg/mt 0.08 lb/ft	Standard
THR806NC	10	9.7 mm 3/8 “	16.0 mm 0.63 inch	280 bar 4060 psi	1120 bar 16240 psi	70 mm 2.75 inch	0.15 kg/mt 0.10 lb/ft	Standard
THR808NC	12	13.0 mm 1/2 “	20.3 mm 0.80 inch	245 bar 3553 psi	980 bar 14210 psi	95 mm 3.74 inch	0.23 kg/mt 0.15 lb/ft	Standard
THR810NC	16	16.0 mm 5/8 “	23.5 mm 0.92 inch	195 bar 2828 psi	780 bar 11310 psi	125 mm 4.92 inch	0.27 kg/mt 0.18 lb/ft	Standard
THR812NC	19	19.2 mm 3/4 “	26.5 mm 1.04 inch	165 bar 2393 psi	660 bar 9570 psi	150 mm 5.90 inch	0.35 kg/mt 0.24 lb/ft	Standard
THR816NC	25	25.6 mm 1 “	34.7 mm 1.37 inch	145 bar 2103 psi	580 bar 8410 psi	200 mm 7.87 inch	0.51 kg/mt 0.34 lb/ft	Standard
