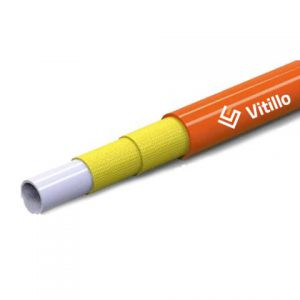

TEKNO R8 NON CONDUCTIVE

Brand : Vitillo

Vitillo Thermoplastic Hoses TEKNO R8 NON CONDUCTIVE

CodeD.N.Hose sizeOutside DiameterMax Working PressureMinimum Burst PressureMinimum Bend RadiusWeightCover Type
THR802NC33.5 mm
1/8 “
7.1 mm
0.28 inch
420 bar
6090 psi
1680 bar
24360 psi
30 mm
1.18 inch
0.04 kg/mt
0.02 lb/ft
Standard
THR803NC54.8 mm
3/16 “
10.0 mm
0.39 inch
350 bar
5075 psi
1400 bar
20300 psi
35 mm
1.38 inch
0.07 kg/mt
0.05 lb/ft
Standard
THR804NC66.4 mm
1/4 “
11.8 mm
0.46 inch
350 bar
5075 psi
1400 bar
20300 psi
50 mm
1.97 inch
0.09 kg/mt
0.06 lb/ft
Standard
THR805NC88.0 mm
5/16 “
14.3 mm
0.56 inch
325 bar
4712 psi
1300 bar
18850 psi
60 mm
2.36 inch
0.13 kg/mt
0.08 lb/ft
Standard
THR806NC109.7 mm
3/8 “
16.0 mm
0.63 inch
280 bar
4060 psi
1120 bar
16240 psi
70 mm
2.75 inch
0.15 kg/mt
0.10 lb/ft
Standard
THR808NC1213.0 mm
1/2 “
20.3 mm
0.80 inch
245 bar
3553 psi
980 bar
14210 psi
95 mm
3.74 inch
0.23 kg/mt
0.15 lb/ft
Standard
THR810NC1616.0 mm
5/8 “
23.5 mm
0.92 inch
195 bar
2828 psi
780 bar
11310 psi
125 mm
4.92 inch
0.27 kg/mt
0.18 lb/ft
Standard
THR812NC1919.2 mm
3/4 “
26.5 mm
1.04 inch
165 bar
2393 psi
660 bar
9570 psi
150 mm
5.90 inch
0.35 kg/mt
0.24 lb/ft
Standard
THR816NC2525.6 mm
1 “
34.7 mm
1.37 inch
145 bar
2103 psi
580 bar
8410 psi
200 mm
7.87 inch
0.51 kg/mt
0.34 lb/ft
Standard
