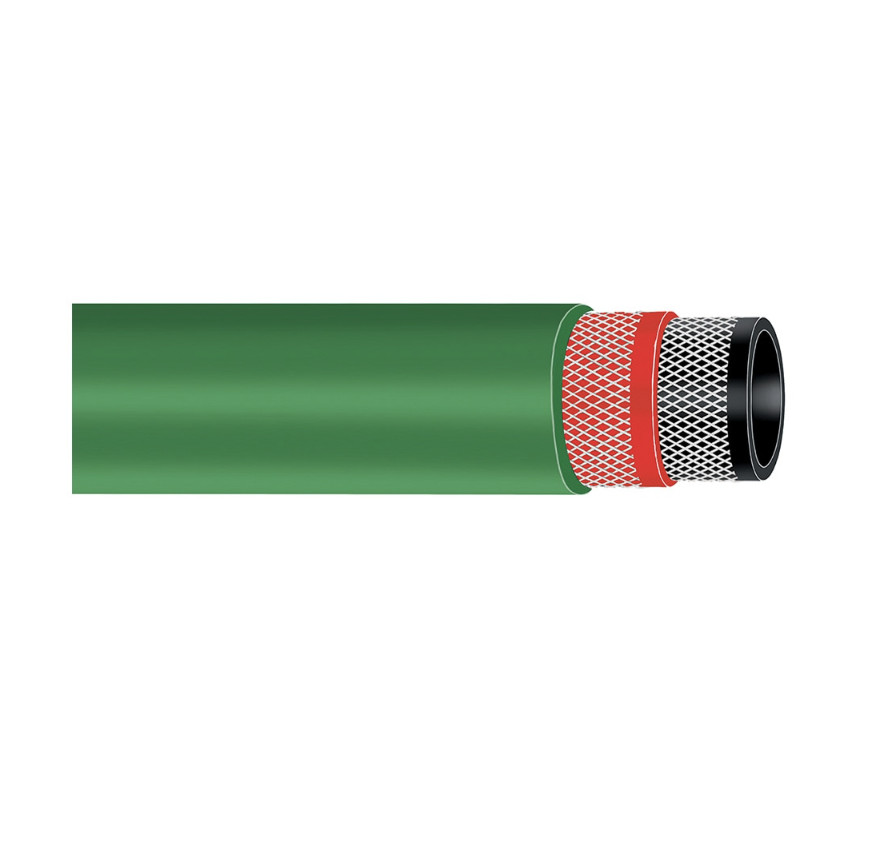

Over the course of time Python NV/L 20 green has come to the fore as a premium quality rubber medium pressure multipurpose hose range designed to transfer a wide range of fluids. Python is now synonymous with a prestigious and attractive hose product of high quality. Easy to handle, it totally adjusts itself to the application environment. Even under extreme working conditions the elasticity and solidity characteristics remains unchanged thank to premium grade compounds ingredients and particular formulation. The non-marking cover does not stain room and equipment surfaces. Versatile, durable and appreciated on the market helps to keep a controlled stock.
Markets
• Processing
• Industrial
Features/Benefits
• Antistatic tube and cover to prevent dangerous accumulation of electric charges is suitable for Atex applications
• High/low temperature and aging reistance ideal for all service conditions
• Available also in black color for color-code identification
• Nitrosamine free compounds to protect the natural environment and the quality of life
• Design Factor 3:1 to enhance safety of operators and equipment
Applications
• Air
• Cold and hot water
• MIld chemicals
| Weight: | 0.15 to 1.18 lb/ft, 0.22 to 1.76 kg/m |
| Industry: | General Industrial |
| Hose Inner Tube Material: | Ethylene Propylene Diene Monomer (EPDM) |
| Brand: | Parker |
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Maximum Operating Pressure: | 2.0 MPa, 20 bar, 300 psi |
| Application: | Multipurpose |
| Product Type: | Air Hose, Transfer Hose, Water Hose |
| Technology: | Fluid & Gas Handling |
| Cover Material: | Ethylene Propylene Diene Monomer (EPDM) |
| Materials of Construction: | Rubber |
| Design Factor: | 3:1 |
| Division: | Polymer Hose Division Europe |
| Product Style: | Delivery |
| Minimum Bend Radius: | 2.362 to 19.685 inch, 60 to 500 mm |
| Specifications Met: | Parker Specifications |
| Compatible Fitting: | Refer to www.parker.com/crimpsource-euro |
| Inside Diameter: | 0.394 to 2 inch, 10 to 50 mm |
| Maximum Operating Temperature: | 120 °C with peaks up to 140°C., 248 °F with peaks up to 284°F. |
| Hose Reinforcement Material: | Synthetic Textile Yarn |
| Outside Diameter: | 0.669 to 2.598 inch, 17 to 66 mm |
| Media: | Mild Chemicals - Check your fluid compatibility with our catalogue chart., Water (Hot Water) |
| Products | Hose I.D. (mm) |
|---|---|
| IH30351200/40 | 10 |
| IH30351201/40 | 13 |
| IH30351202/40 | 15 |
| IH30351203/40 | 19 |
| IH30351204/40 | 25 |
| IH36351201/40 | 32 |
| IH36351202/40 | 38 |
| IH36351203/40 | 42 |
| IH36351204/40 | 50 |
