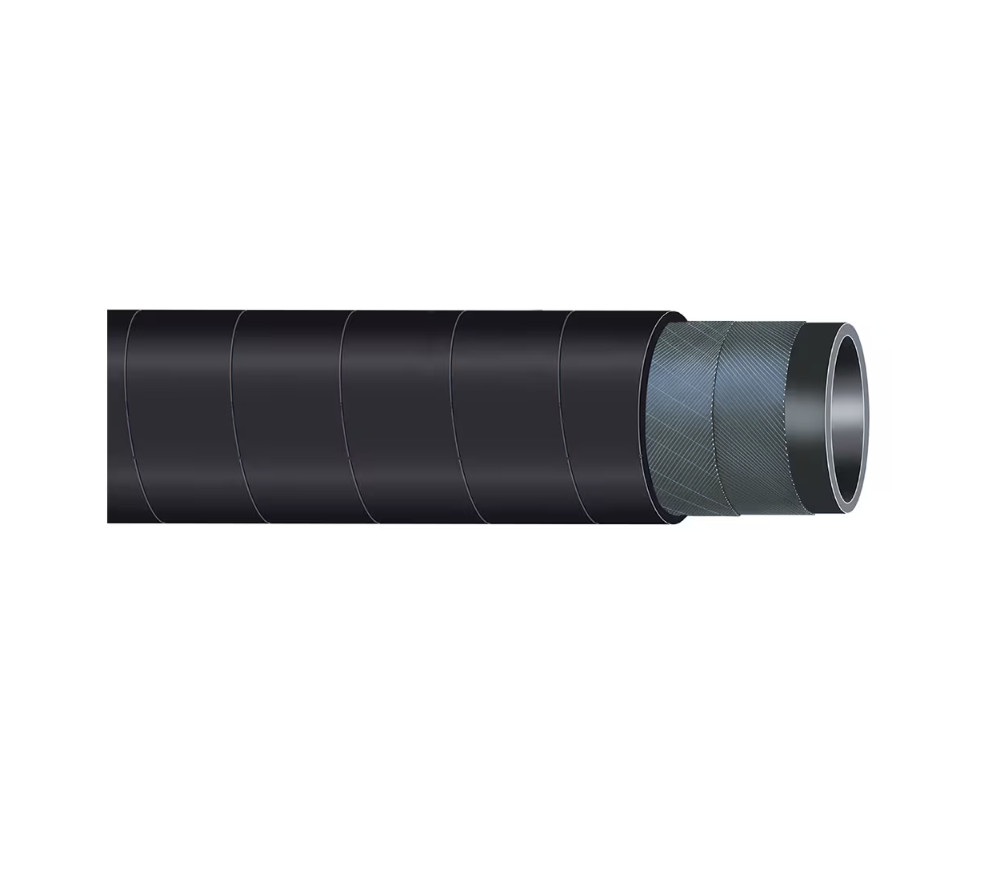

Radior 3 (Cut Length) is a hose developed for cooling systems of automotive engines and stationary engines. The EPDM tube is suitable for hot water and steam and the light and flexible structure makes this hose ideal in narrow spaces. The construction is resistant to abrasion, heat, aging and weathering for an outstanding longevity of use. Nitrosamine free compounds formulated to respect the natural environment, to safeguard the quality of life and to assure an easy disposal after use.
Markets
• Industrial
• Transportation
• Construction
• Agriculture
Features/Benefits
• Pre-cut in 1 mt length to speed up assembling operation and to facilitate the storage into limited space
• Straight piece without snake effect facilitates routing and positioning
• Design Factor 3:1 enhances safety for operators and equipment
Application
• Industrial and vehicle coolant systems
• Hot water
• Coolant
• Mild chemicals
| Weight: | 0.23 to 2.63 kg/m, 0.15 to 1.77 lb/ft |
| Hose Inner Tube Material: | Ethylene Propylene Diene Monomer (EPDM), Nitrosamine Free |
| Brand: | Parker |
| Maximum Operating Temperature: | 100 °C, 212 °F |
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Maximum Operating Pressure: | 0.3 MPa, 3 bar, 43.5 psi |
| Product Type: | Coolant Hose, Transfer Hose, Water Hose |
| Cover Material: | Nitrosamine Free, Ethylene Propylene Diene Monomer (EPDM) |
| Technology: | Fluid & Gas Handling |
| Product Style: | Delivery |
| Materials of Construction: | Rubber |
| Design Factor: | 3:1 |
| Division: | Polymer Hose Division Europe |
| Specifications Met: | Parker Specifications |
| Compatible Fitting: | n/a |
| Inside Diameter: | 0.591 to 3.937 inch, 15 to 100 mm |
| Application: | Cooling Systems of automotive engines and stationary engines, Hot Water, Steam |
| Hose Reinforcement Material: | Synthetic Textile Fabric/Yarn |
| Minimum Bend Radius: | n/a |
| Outside Diameter: | 0.827 to 4.449 inch, 21 to 113 mm |
| Products | Hose I.D. (inch) | Hose I.D. (mm) |
|---|---|---|
| IH36830023/1 | 0.591 | 15 |
| IH36830001/1 | 0.709 | 18 |
| IH36830002/1 | 0.787 | 20 |
| IH36830003/1 | 0.866 | 22 |
| IH36830004/1 | 0.984 | 25 |
| IH36830005/1 | 1.102 | 28 |
| IH36830006/1 | 1.181 | 30 |
| IH36830007/1 | 1-1/4 | 32 |
| IH36830008/1 | 1-3/8 | 35 |
| IH36830009/1 | 1-1/2 | 38 |
| IH36830010/1 | 1.575 | 40 |
| IH36830011/1 | 1.654 | 42 |
| IH36830012/1 | 1-3/4 | 45 |
| IH36831030/1 | 1-7/8 | 48 |
| IH36830013/1 | 2 | 50 |
| IH36830014/1 | 2.165 | 55 |
| IH36830015/1 | 2-3/8 | 60 |
| IH36830016/1 | 2.559 | 65 |
| IH36830017/1 | 2-3/4 | 70 |
| IH36831031/1 | 2.953 | 75 |
| IH36830018/1 | 3-1/8 | 80 |
| IH36830019/1 | 3.543 | 90 |
| IH36830020/1 | 3.937 | 100 |
