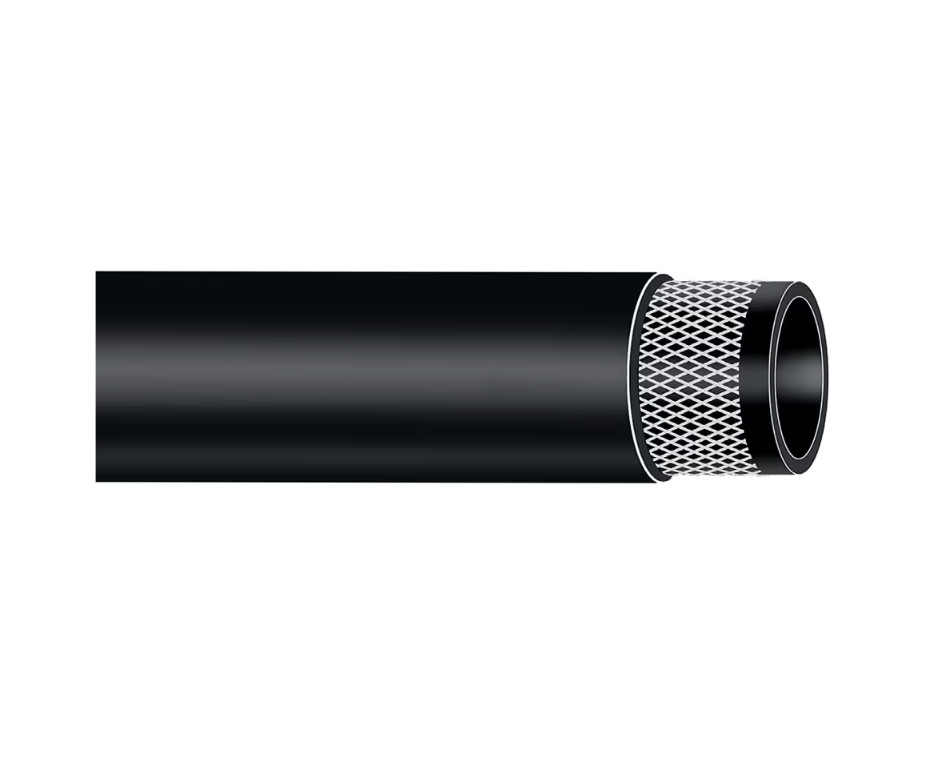

Carboblue N/L 20 is a hose that is engineered to dispense or transfer additive composed by 32% urea aqueous solution (AUS 32). It can be used in Selective Catalytic Reduction (SCR) system of automotives such as buses, heavy trucks and off-road vehicles with diesel engines.
Extensive tests on our compounds formulated specifically for this product have proven the absence of contaminant particles or substances in the urea. This aspect is fundamental to guarantee the efficiency and performance of the SCR system.
Markets
• Transportation
• Construction
• Agriculture
Features/Benefits
• Made with special compounds to avoid urea contamination
• Nitrosamine free compounds to protect the natural environment and the quality of life
• Design Factor 3:1 enhances safety for operators and equipment
• Materials resistant to mechanical and environmental stress
Applications
• Urea transfer
• Dispensing
| Weight: | 0.18 to 0.51 lb/ft, 0.27 to 0.76 kg/m |
| Hose Inner Tube Material: | Ethylene Propylene Diene Monomer (EPDM), Nitrosamine Free |
| Brand: | Parker |
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Application: | Automotive, Boat, Fluid Transfer (AdBlue) |
| Product Type: | Chemical Hose, Specialty Hose, Transfer Hose |
| Technology: | Fluid & Gas Handling |
| Cover Material: | Nitrosamine Free, Ethylene Propylene Diene Monomer (EPDM) |
| Materials of Construction: | Rubber |
| Design Factor: | 3:1 |
| Division: | Polymer Hose Division Europe |
| Product Style: | Delivery |
| Minimum Bend Radius: | 1.575 to 5.906 inch, 40 to 150 mm |
| Media: | Chemicals (Urea) - Check your fluid compatibility with our catalogue chart. |
| Specifications Met: | Parker Specifications |
| Compatible Fitting: | Refer to www.parker.com/crimpsource-euro |
| Inside Diameter: | 0.236 to 0.984 inch, 6 to 25 mm |
| Maximum Operating Temperature: | 100 °C with peaks up to 120°C., 212 °F with peaks up to 248°F. |
| Maximum Operating Pressure: | 10 to 20 bar, 150 to 300 psi |
| Hose Reinforcement Material: | Synthetic Textile Fabric |
| Outside Diameter: | 0.472 to 1.457 inch, 12 to 37 mm |
| Products | Maximum Working Pressure (Bar) | Hose I.D. (mm) | Hose I.D. (inch) | Length (m) |
|---|---|---|---|---|
| IH30515030/100 | 10 | 16 | 5/8 | 100 |
| IH30515031/80 | 10 | 19 | 3/4 | 80 |
| IH30515032/50 | 10 | 25 | 0.984 | 50 |
| IH30515043/100 | 20 | 6 | 0.236 | 100 |
| IH30515044/100 | 20 | 8 | 5/16 | 100 |
| IH30515045/100 | 20 | 10 | 0.394 | 100 |
| IH30515046/100 | 20 | 13 | 0.512 | 100 |
| IH30515040/80 | 20 | 16 | 5/8 | 80 |
| IH30515041/80 | 20 | 19 | 3/4 | 80 |
| IH30515047/50 | 20 | 25 | 0.984 | 50 |
