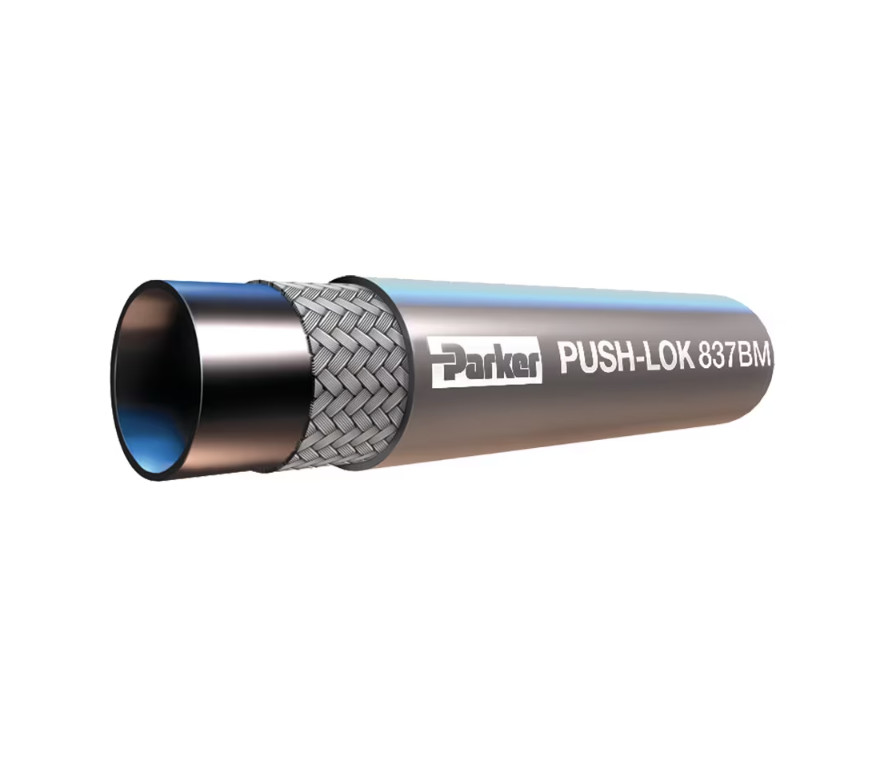

Parker's Low Pressure Push-Lok hose 837BM has been designed with a combination of high flexibility, high abrasion resistance and free of wetting disturbing substances. These product features make the Push-Lok hose 837BM ideal for low pressure applications in the automotive industry.The Parker Low Pressure Push-Lok hose range is complemented by a full selection of compatible Push-Lok fittings in steel and stainless steel.
Markets:
• Industrial
• Automotive
Features/Benefits:
• Matched hose and fitting system guarantees an approved and safe combination and the highest quality and
safety, combined with the longest service life of the final product to the end-users.
• The hose cover is made of high performance synthetic rubber in different colors and therefore the hose is suitable for
applications which require high flexibility combined with high abrasion resistance.
• Free of wetting disturbing substances and therefore ideal for application in the automotive industry.
• Different cover colors make the hose suitable for multiline assemblies conveying different media or for color-coded
supply and return lines.
• The Parker Low Pressure Push-Lok hose range is complemented by a full selection of compatible Push-Lok
fittings in steel and stainless steel.
Applications:
• Automotiver Industry
• Automotive water and air applications
The Parker Low Pressure Push-Lok®self-grip hose system is compatible with Push-Lok fittings series 82. ®
| Weight: | 0.09 to 0.37 lb/ft, 0.13 to 0.55 kg/m |
| Industry: | Industrial Manufacturing Equipment |
| Hose Inner Tube Material: | Synthetic Rubber |
| Brand: | Parker |
| Minimum Operating Temperature: | -40 °F |
| Maximum Operating Pressure: | 1.6 MPa, 16 bar, 235 psi |
| Product Type: | Push-Lok and Push-on Hoses |
| Technology: | Fluid & Gas Handling |
| Cover Material: | Synthetic Rubber High Performance |
| Materials of Construction: | Rubber |
| Design Factor: | 4:1 |
| Division: | Polymer Hose Division Europe |
| Minimum Bend Radius: | 2.559 to 9.843 inch, 65 to 250 mm |
| Specifications Met: | Parker Specifications |
| Compatible Fitting: | 82 Series |
| Inside Diameter: | 1/4 to 1 inch, 6.4 to 25.4 mm |
| Maximum Operating Temperature: | 100 °C (Water 85°C / Air 70°C), 212 °F (Water 185°F / Air 158°F) |
| Application: | All Markets (for a variety of applications), Automotive for water/air applications |
| Hose Reinforcement Material: | Braid of High Tensile Fiber |
| Vacuum Pressure Rating: | 0.51 to 0.95 bar, 15.06 to 28.05 inch-Hg, 382.53 to 712.56 mm-Hg |
| Outside Diameter: | 0.476 to 1 .299 inch, 12.1 to 33.0 mm |
| Media: | Air (Dry Air), Air (General Industrial Air), Coolants (Water-Oil emulsion, Water-Glycol) |
| Products | Hose I.D. (size) | Cover Color | Hose Inside Diameter | Maximum Operating Pressure |
|---|---|---|---|---|
| 837BM-4-BLK-RL | -4 | Black | 6.4 mm - 1/4 inch | 16 bar |
| 837BM-4-BLU-RL | -4 | Blue | 6.4 mm - 1/4 inch | 16 bar |
| 837BM-4-RED-RL | -4 | Red | 6.4 mm - 1/4 inch | 16 bar |
| 837BM-4-GRN-RL | -4 | Green | 6.4 mm - 1/4 inch | 16 bar |
| 837BM-4-GRA-RL | -4 | Grey | 6.4 mm - 1/4 inch | 16 bar |
| 837BM-6-BLK-RL | -6 | Black | 9.5 mm - 3/8 inch | 16 bar |
| 837BM-6-BLU-RL | -6 | Blue | 9.5 mm - 3/8 inch | 16 bar |
| 837BM-6-RED-RL | -6 | Red | 9.5 mm - 3/8 inch | 16 bar |
| 837BM-6-GRN-RL | -6 | Green | 9.5 mm - 3/8 inch | 16 bar |
| 837BM-6-GRA-RL | -6 | Grey | 9.5 mm - 3/8 inch | 16 bar |
| 837BM-8-BLK-RL | -8 | Black | 12.7 mm - 1/2 inch | 16 bar |
| 837BM-8-BLU-RL | -8 | Blue | 12.7 mm - 1/2 inch | 16 bar |
| 837BM-8-RED-RL | -8 | Red | 12.7 mm - 1/2 inch | 16 bar |
| 837BM-8-GRN-RL | -8 | Green | 12.7 mm - 1/2 inch | 16 bar |
| 837BM-8-GRA-RL | -8 | Grey | 12.7 mm - 1/2 inch | 16 bar |
| 837BM-10-BLK-RL | -10 | Black | 15.9 mm - 5/8 inch | 16 bar |
| 837BM-10-BLU-RL | -10 | Blue | 15.9 mm - 5/8 inch | 16 bar |
| 837BM-10-RED-RL | -10 | Red | 15.9 mm - 5/8 inch | 16 bar |
| 837BM-10-GRN-RL | -10 | Green | 15.9 mm - 5/8 inch | 16 bar |
| 837BM-10-GRA-RL | -10 | Grey | 15.9 mm - 5/8 inch | 16 bar |
| 837BM-12-BLK-RL | -12 | Black | 19.1 mm - 3/4 inch | 16 bar |
| 837BM-12-BLU-RL | -12 | Blue | 19.1 mm - 3/4 inch | 16 bar |
| 837BM-12-RED-RL | -12 | Red | 19.1 mm - 3/4 inch | 16 bar |
| 837BM-12-GRN-RL | -12 | Green | 19.1 mm - 3/4 inch | 16 bar |
| 837BM-12-GRA-RL | -12 | Grey | 19.1 mm - 3/4 inch | 16 bar |
| 837BM-16-BLK-RL | -16 | Black | 25.4 mm - 1 inch | 16 bar |
| 837BM-16-BLU-RL | -16 | Blue | 25.4 mm - 1 inch | 16 bar |
| 837BM-16-RED-RL | -16 | Red | 25.4 mm - 1 inch | 16 bar |
| 837BM-16-GRN-RL | -16 | Green | 25.4 mm - 1 inch | 16 bar |
| 837BM-16-GRA-RL | -16 | Grey | 25.4 mm - 1 inch | 16 bar |
