Parker's Chemical Resistant PTFE hoses have exceptional chemical compatibility and handle temperatures as high as +450°F, except in jacketed designs. PTFE Braided hoses are used in numerous applications including, but not limited to, chemical transfer lines, high temperature general hydraulics, and coolant lines. The PTFE core tube resists moisture and offers the lowest coefficient of friction of any known plastic, therefore minimizing pressure drops and deposits.
Parker 919B PTFE Hoses should be used when conveying non-conducting fluids such as oils, paints, fuels, or steam.

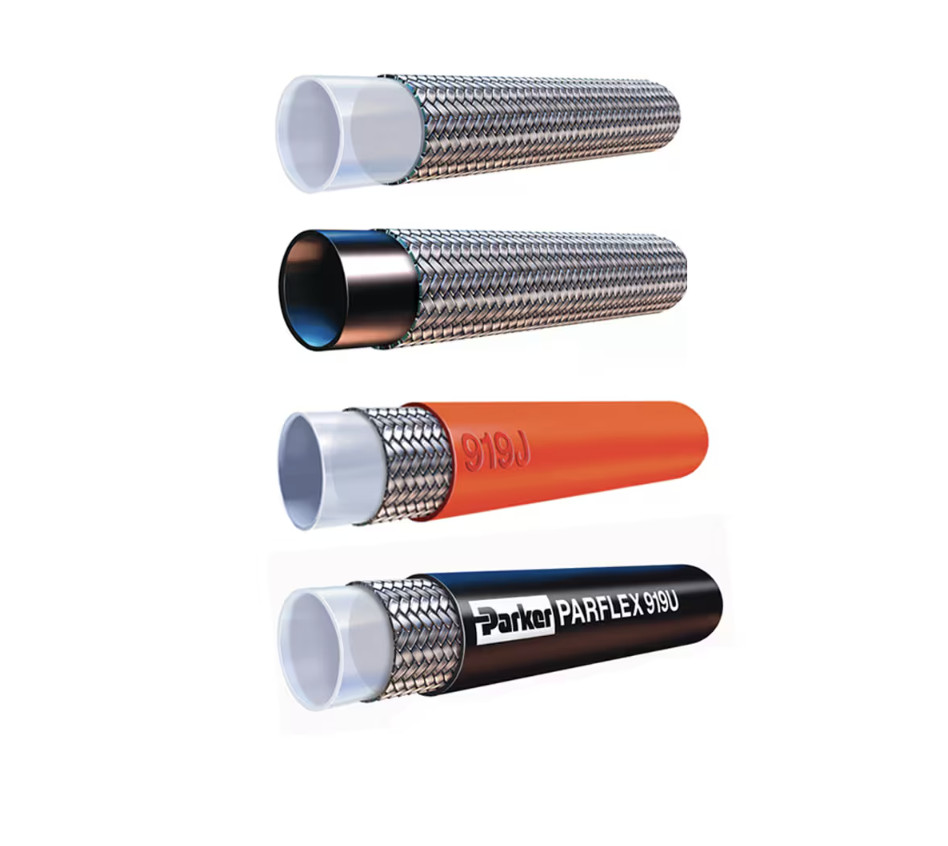

Parker’s stainless steel braided PTFE hoses are available with silicone or polyurethane jackets..
Markets:
• Fluid Handling
• Medical
• Oilfield Service
• Transportation
• Military
• Compressed Gas
Features/Benefits:
•PTFE lines provide excellent chemical compatibility for successful chemical transfer between lines
• Handles extreme temperatures from -100°F to +450°F
• Resists moisture
• Low friction minimizes pressure drops and deposits
• Steam cleanable
• Available with extruded silicone jacket to provide a clean, smooth cover (919J)
• Available with non-marring, abrasion-resistant polyurethane jacket to shield the stainless steel wire reinforcement against wear, fraying and contaminants (919U)
Applications:
• Chemical Transfer Lines
• General Hydraulics
• Compressed Air/Gases
• Adhesive Dispensing
• Coolant Lines
• Medical Gases
Technical Specifications:• Use hose type 919B with static-dissipative core tube when conveying non-conducting fluids such as oils, paints, fuels, steam, etc.
• Hoses with covers must be skived prior to fitting attachment
• Burst pressure is 4x max working pressure at 73°F (23°C)
• Hose I.D. is nominal
• Hose O.D. is maximum
• Other colors available upon request
| Design Factor: | 4 |
| Cover Color: | Brown, Natural, Red |
| Media: | Air, Chemicals (Adhesive), Chemicals - Check your fluid compatibility with our catalogue chart., Food & Beverage (Cooking Oil), Industrial Fluids, Water |
| Specifications Met: | FDA 21 CFR 177.1550 (Natural Tube), SAE 100R1, Type 4A, SAE 100R1, Type 4B |
| Compatible Fitting: | 90 Series, 91 Series, 91N Series |
| Weight: | 0.09 to 0.58 kg/m, 0.06 to 0.39 lb/ft |
| Inside Diameter: | 3/16 to 1-1/8 inch, 5 to 29 mm |
| Maximum Operating Temperature: | 135 to 232 °C, 275 to 450 °F |
| Minimum Operating Temperature: | -40 to -73 °C, -40 to -100 °F |
| Product Style: | Static Dissipative |
| Maximum Operating Pressure: | 69 to 207 bar, 6.9 to 20.7 MPa, 1000 to 3000 psi |
| Outside Diameter: | 0.330 inch, 0.400 inch, 0.460 inch, 0.560 inch, 0.580 inch, 0.660 inch, 0.790 inch, 1.060 inch, 8.2 to 26.9 mm |
| Size: | -4 to -20 |
| Application: | Chemical Transfer, Fluid Handling, Industrial, Instrumentation, Manufacturing, Medical, Packaging, Pharmaceutical, Transportation |
| Hose Inner Tube Material: | Natural Static Dissipative, Polytetrafluoroethylene (PTFE) Static Dissipative |
| Cover Material: | Silicone, Polyurethane |
| Hose Reinforcement Material: | Braid of Stainless Steel |
| Products | Hose Type | Size | Length |
|---|---|---|---|
| 919-3 | SS Braid, Natural | -3 | Random |
| 919-4-100 | SS Braid, Natural | -4 | 100 ft |
| 919-5-100 | SS Braid, Natural | -5 | 100 ft |
| 919-6-100 | SS Braid, Natural | -6 | 100 ft |
| 919-8-100 | SS Braid, Natural | -8 | 100 ft |
| 919-10-50 | SS Braid, Natural | -10 | 50 ft |
| 919-12-50 | SS Braid, Natural | -12 | 50 ft |
| 919-16-50 | SS Braid, Natural | -16 | Random |
| 919-20 | SS Braid, Natural | -20 | Random |
| 919B-4 | SS Braid, Static Dissipative | -4 | Random |
| 919B-5 | SS Braid, Static Dissipative | -5 | Random |
| 919B-6 | SS Braid, Static Dissipative | -6 | Random |
| 919B-8 | SS Braid, Static Dissipative | -8 | Random |
| 919J-4-RED | Silicone Jacket, Natural | -4 | Random |
| 919J-5-RED | Silicone Jacket, Natural | -5 | Random |
| 919J-6-RED | Silicone Jacket, Natural | -6 | Random |
| 919J-8-RED | Silicone Jacket, Natural | -8 | Random |
| 919J-10-RED | Silicone Jacket, Natural | -10 | Random |
| 919J-12-RED | Silicone Jacket, Natural | -12 | Random |
| 919U-4 | Polyurethane Jacket, Natural | -4 | Random |
| 919U-6 | Polyurethane Jacket, Natural | -6 | Random |
| 919U-8 | Polyurethane Jacket, Natural | -8 | Random |
| 919U-12 | Polyurethane Jacket, Natural | -12 | Random |
| 919U-16 | Polyurethane Jacket, Natural | -16 | Random |
| 919-10 | SS Braid, Natural | -10 | Random |
| 919-12 | SS Braid, Natural | -12 | Random |
| 919-16 | SS Braid, Natural | -16 | Random |
| 919-4 | SS Braid, Natural | -4 | Random |
| 919-5 | SS Braid, Natural | -5 | Random |
| 919-6 | SS Braid, Natural | -6 | Random |
| 919-8 | SS Braid, Natural | -8 | Random |
| 919BJ-4-ORG | Silicone Jacket, Static Dissipative | -4 | Random |
| 919BJ-6-ORG | Silicone Jacket, Static Dissipative | -6 | Random |
| 919BJ-8-ORG | Silicone Jacket, Static Dissipative | -8 | Random |
| 919BJ-10-ORG | Silicone Jacket, Static Dissipative | -10 | Random |
| 919BJ-12-ORG | Silicone Jacket, Static Dissipative | -12 | Random |
| 919J-16-RED | Silicone Jacket, Natural | -16 | Random |
| 919BJ-16-ORG | Silicone Jacket, Static Dissipative | -16 | Random |
| 919BJ-5-ORG | Silicone Jacket, Static Dissipative | -5 | Random |
