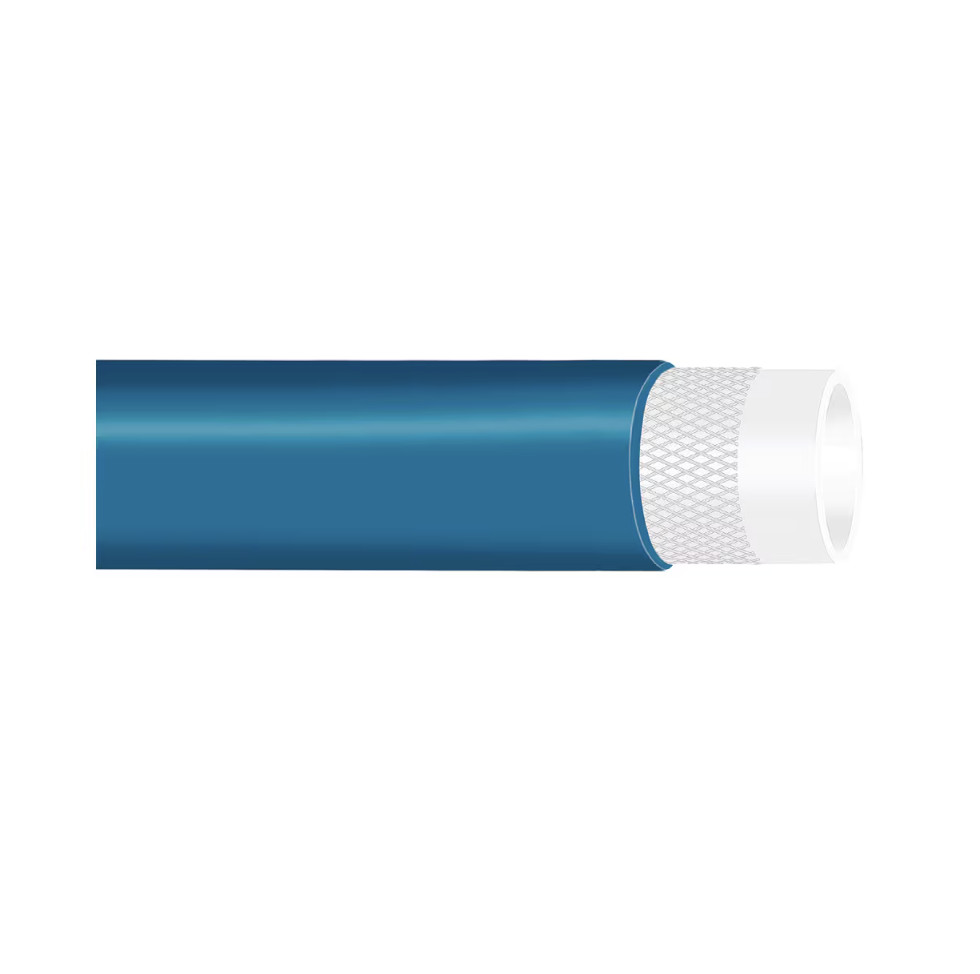

Beverage & Food Transfer Hose - Drinkpress WB/L 10

Brand : Parker Hannifin

Parker Hannifin M6d43359ba1ca4b8162a5e04cea5a764d3 Beverage & Food Transfer Hose - Drinkpress WB/L 10

Drinkpress WB/L 10 bar is a hose formulated to handle liquid food and beverages such as milk, wine, fruit juices and liqueurs but also to withstand detergents and disinfectants used during wash-down service in food processing areas indoors or outdoors. This dual usage is an important plus for your activity. Breweries, dairies, wine cellars are typical example where this hose can be utilized with success. The hose construction incorporates multiple plies of textile reinforcement that provide flexibility, and the blue non-marking cover is resistant to abrasion, heat and ozone.

Markets
• Food processing
• Agriculture
• Industrial

Features/Benefits
• Meet Government & Industry sanitary requirements, thus wide acceptance
• Designed to withstand the rugged cleaning cycles used in Food & Beverage processing systems with hot water and detergents, thus good service life expectation
• Dual use food transfer and wash-down applications to optimize your stock
• Design Factor 3:1 enhances safety of operators and equipment

Applications
• Liquid foodstuff transfer
• Hot water cleaning processes
• Room and equipment sanitization



Weight:0.31 to 1.05 kg/m, 0.21 to 0.71 lb/ft
Industry:Food & Beverage
Hose Inner Tube Material:Nitrile Butadiene Rubber (NBR) Food Quality
Brand:Parker
Maximum Operating Temperature:110 °C, 230 °F
Minimum Operating Temperature:-22 °F, -30 °C
Length:40 m
Maximum Operating Pressure:1 MPa, 10 bar, 150 psi
Product Type:Food Grade Hose, Transfer Hose
Technology:Fluid & Gas Handling
Cover Material:Nitrile Butadiene Rubber (NBR)/PVC Ozone and Weather Resistant
Materials of Construction:Rubber
Design Factor:3:1
Division:Polymer Hose Division Europe
Product Style:Delivery
Minimum Bend Radius:3.150 to 7.874 inch, 80 to 200 mm
Media:Food & Beverage
Specifications Met:CE 1935/2004, FDA 21 CFR 177
Compatible Fitting:Refer to www.parker.com/crimpsource-euro
Inside Diameter:0.394 to 0.984 inch, 10 to 25 mm
Application:Food & Beverage Processing
Hose Reinforcement Material:High Tensile Synthetic Yarn
Outside Diameter:0.748 to 1.417 inch, 19 to 36 mm



ProductsHose I.D. (mm)Hose I.D. (inch)
IH30240022/40100.394
IH30240020/40130.512
IH30240025/40165/8
IH30240030/40193/4
IH30240035/40250.984
