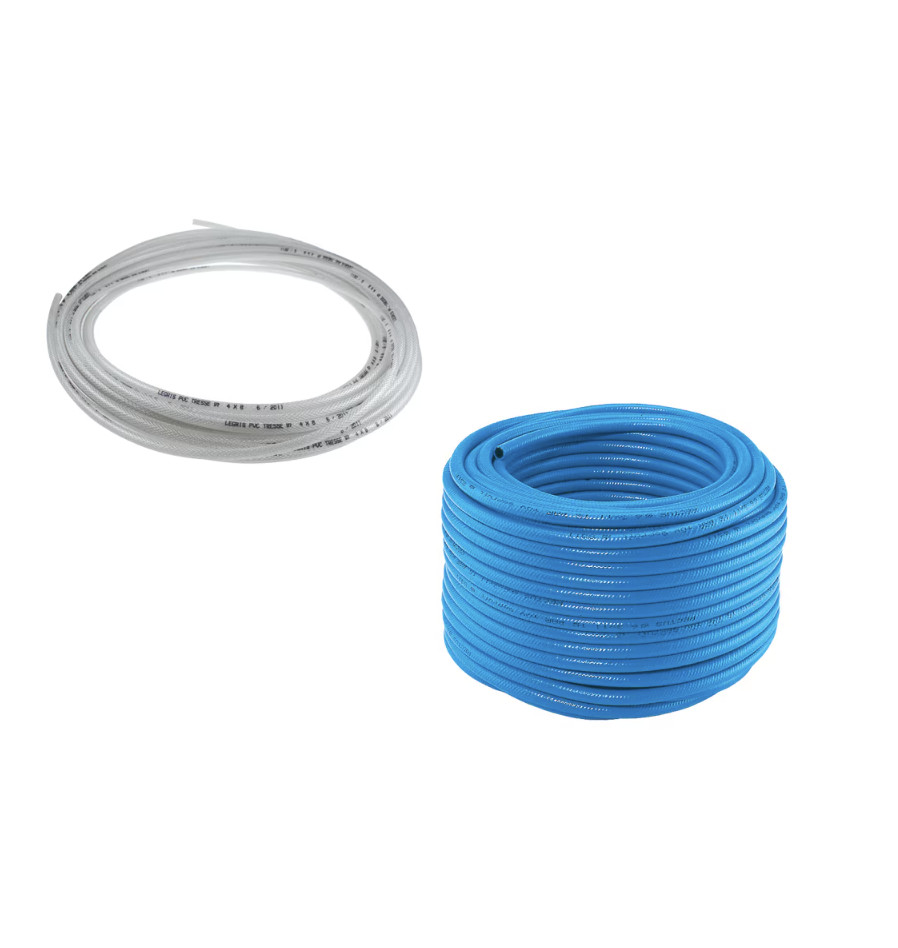

Parker Legris offers two grades of PVC hose with textile braid which cover a wide range of industrial applications for the transportation of various fluids.
Features/Benefits:
- Food-Grade PVC
• Monograde tubing reinforced with a braided polyester ply
• Flexible: space saving during installation
• Translucent for visual identification:
of the fluid
of inner cleanliness
of fluid flow
• Food-grade, without phthalates
• Silicone-free
- Industrial PVC
• Tubing with a braided polyester ply between 2 grades of PVC
• Resistant to abrasion, impact and crushing
• Increased durability
• Lightweight and easy-to-use
• Silicone-free
Markets:
• Factory Automation
• Miscellaneous Manufacturing
• Vehicle Assembly Facilities
• Semiconductors
• Wearing Apparel
• Packaging
• Food and Beverage
Applications:
• Compressed Air Conveying
• Areas Subjected to Intensive Cleaning
Technologies:
• PVC Braided Hose
•Fluid and Gas Handling
• Pneumatics
• Process Control
• Industrial Hose
Technical Characteristics:
• Fluids:
Food-Grade PVC: Compressed air,Water, Food & Beverages
Industrial PVC: Compressed air
• Materials:
Food-Grade PVC: Translucent food-grade PVC, phthalate-free with polyester braid
Industrial PVC: Industrial blue PVC, multi-layer, with polyester braid
• Pressure:
Food-Grade PVC: 0 to 15 bar
Industrial PVC: 0 to 15 bar
• Temperature:
Food-Grade PVC: -20°C to +70°C
Industrial PVC: -25°C to +60°C
| Weight: | 0.004 to 0.035 kg, 0.008 to 0.085 lb, 0.033 to 0.191 lb/ft, 0.05 to 0.292 kg/m, 1.26 to 14.6 kg/package |
| Industry: | Industrial Manufacturing Equipment |
| Hose Inner Tube Material: | PVC |
| Maximum Operating Temperature: | 140 to 158 °F, 60 to 70 °C |
| Minimum Operating Temperature: | 5 to -13 °F, -25 to -15 °C |
| Maximum Operating Pressure: | 1.5 MPa, 15 bar, 217 psi |
| Cover Material: | PVC, Treated Steel |
| Materials of Construction: | PVC with Textile Braid, Treated Steel |
| Division: | Low Pressure Connectors Europe Division |
| Brand: | Legris |
| Vacuum Pressure Rating: | 30 inch-Hg, 755 mm-Hg, 1.0 bar |
| Number of Tubes: | 1 |
| Length per Package: | 25 to 50 m |
| Product Style: | Straight Hose, Pipe Clamp, Braided Hose, Clip for Braided Hose, PVC |
| Technology: | Fluid & Gas Handling, Pneumatics, Process Control |
| Minimum Bend Radius: | 0.39 to 3.56 inch, 10 to 89 mm |
| Cover Color: | Blue, Natural, Red, Silver, Transparent |
| Media: | Air (Pneumatics), Food & Beverage, Water |
| Specifications Met: | CE DI 2007/10/EC, FDA, REACH, CE RG:1935/2004, RoHS 2011/65/EC |
| Compatible Fitting: | Compression (Brass), Compression (Stainless Steel) |
| Application: | Industrial Assembly, In-Plant Automotive, Machine Tools, Pneumatics, Workshops |
| Product Type: | Coolant Hose, Food Grade Hose, Pneumatic Hose, Water Hose |
| Design Factor: | 3:4 |
| Inside Diameter: | 0.16 to 0.76 inch, 4 to 19 mm |
| Hose Reinforcement Material: | Braid of Textile |
| Products | Materials of Construction | Hose Inside Diameter | Hose Outside Diameter | Cover Color | Length per Package |
|---|---|---|---|---|---|
| 1025V08 00 04 | PVC with textile braid | 0.16 INCH | 0.32 INCH | Natural | 25 M |
| 1025V11 00 06 | PVC with textile braid | 0.16 INCH | 0.32 INCH | Natural | 25 M |
| 1025V13 00 07 | PVC with textile braid | 0.28 INCH | 0.32 INCH | Natural | 25 M |
| 1025V14 00 08 | PVC with textile braid | 0.32 INCH | 0.56 INCH | Natural | 25 M |
| 1025V16 00 10 | PVC with textile braid | 0.4 INCH | 0.64 INCH | Natural | 25 M |
| 1025V18 00 12 | PVC with textile braid | 0.48 INCH | 0.72 INCH | Natural | 25 M |
| 1025V23 00 15 | PVC with textile braid | 0.6 INCH | 0.92 INCH | Natural | 25 M |
| 1025V26 00 19 | PVC with textile braid | 0.76 INCH | 1.04 INCH | Natural | 25 M |
| 1050V11 00 06 | PVC with textile braid | 0.24 INCH | 0.44 INCH | Natural | 50 M |
| 1050V14 00 08 | PVC with textile braid | 0.32 INCH | 0.56 INCH | Natural | 50 M |
| 1050V16 00 10 | PVC with textile braid | 0.4 INCH | 0.64 INCH | Natural | 50 M |
| 1050V18 00 12 | PVC with textile braid | 0.48 INCH | 0.72 INCH | Natural | 50 M |
| 1050V23 00 15 | PVC with textile braid | 0.6 INCH | 0.92 INCH | Natural | 50 M |
| 1050V26 00 19 | PVC with textile braid | 0.76 INCH | 1.04 INCH | Natural | 50 M |
| 1025V11C04 06 | PVC with textile braid | 0.16 INCH | 0.32 INCH | Blue | 25 M |
| 1025V14C04 09 | PVC with textile braid | 0.36 INCH | 0.56 INCH | Blue | 25 M |
| 1025V19C04 13 | PVC with textile braid | 0.52 INCH | 0.76 INCH | Blue | 25 M |
| MHP1030B | PVC with textile braid | 0.4 INCH | 0.64 INCH | Blue | 30 M |
| MHP1030R | PVC with textile braid | 0.4 INCH | 0.64 INCH | Red | 30 M |
| MHP1030T | PVC with textile braid | 0.4 INCH | 0.64 INCH | Transparent | 30 M |
| MHP1330B | PVC with textile braid | 0.52 INCH | 0.76 INCH | Blue | 30 M |
| MHP1330R | PVC with textile braid | 0.52 INCH | 0.76 INCH | Red | 30 M |
| MHP1330T | PVC with textile braid | 0.52 INCH | 0.76 INCH | Transparent | 30 M |
| PVC06/050/03 | PVC with textile braid | 0.252 INCH | 0.44 INCH | Blue | 50 M |
| PVC09/050/03 | PVC with textile braid | 0.36 INCH | 0.58 INCH | Blue | 50 M |
| PVC12/050/03 | PVC with textile braid | 0.508 INCH | 0.76 INCH | Blue | 50 M |
