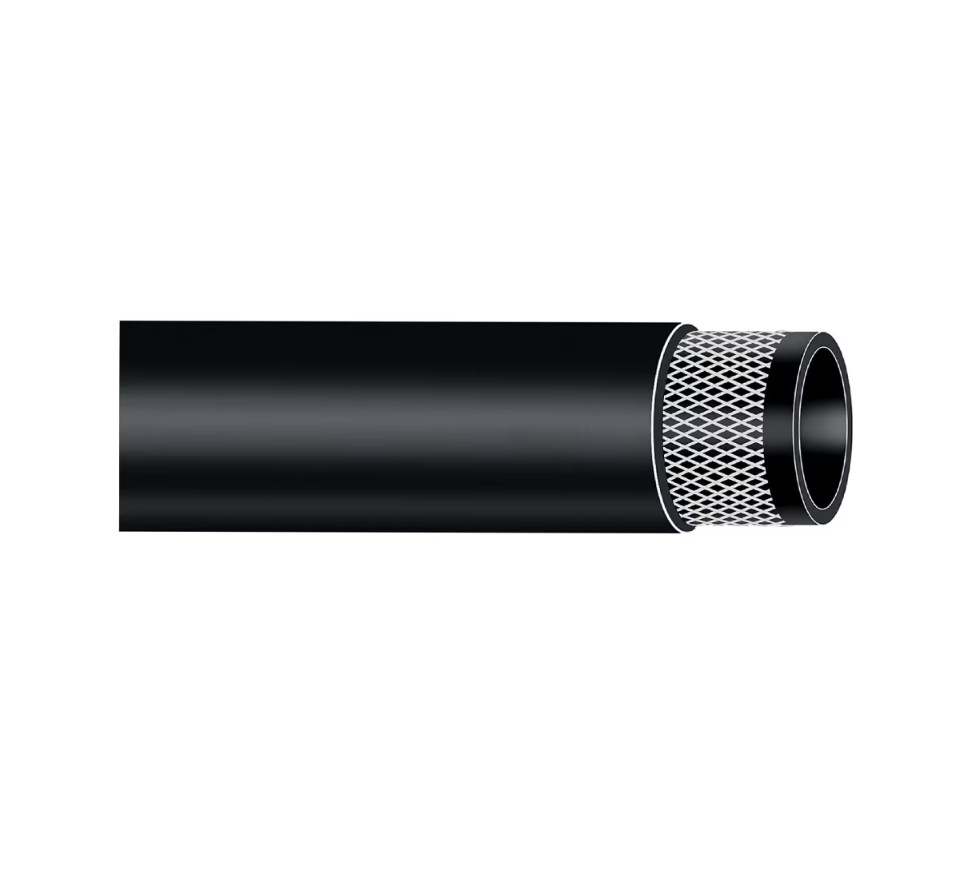

Radior 10 bar hose is engineered to serve at its best - but not limited to - in automotive heating/cooling system specially those with alternative fuels such as LPG and methane. The hose construction incorporates premium grade materials that provide electrochemical resistance to inhibit striations and rusting of hose-to-metal interfaces and high temperatures perfomance. A reliable and competitive solution for all engines.
Markets
• Automotive
• Transportation
• Agriculture
• General Industrial
Features/benefits
• Nitrosamine free compounds to protect the natural environment and the quality of life
• Design Factor 3:1 enhances safety of equipments and engines
• Robust structure to avoid kinking and increase service life
• 10 bar WP to satisfy the most demanding applications
Applications
• Hot water, coolant, mild chemicals
• Cooling and heating
| Industry: | General Industrial, Off-road Machinery, Transportation |
| Hose Inner Tube Material: | Ethylene Propylene Diene Monomer (EPDM), Nitrosamine Free |
| Brand: | Parker |
| Minimum Operating Temperature: | -22 °F, -30 °C |
| Maximum Operating Pressure: | 10 bar, 150 psi |
| Application: | Automotive, Boat |
| Product Type: | Transfer Hose, Coolant Hose, Water Hose |
| Cover Material: | Ethylene Propylene Diene Monomer (EPDM) |
| Hose Reinforcement Material: | Textile |
| Technology: | Fluid & Gas Handling |
| Design Factor: | 3:1 |
| Materials of Construction: | Rubber |
| Weight: | 0.08 lb/ft, 0.23 lb/ft, 0.13 to 0.35 kg/m |
| Product Style: | Delivery |
| Division: | Polymer Hose Division Europe |
| Media: | Water |
| Specifications Met: | Parker Specifications |
| Compatible Fitting: | Refer to www.parker.com/crimpsource-euro |
| Inside Diameter: | 0.276 to 0.591 inch, 7 to 15 mm |
| Maximum Operating Temperature: | 100, 212 |
| Minimum Bend Radius: | 1.969 to 3.543 inch, 50 to 90 mm |
| Outside Diameter: | 0.512 to 0.905 inch, 13 to 23 mm |
| Products | Hose I.D. (mm) |
|---|---|
| IH30114029/100 | 7 |
| IH30114030/100 | 15 |
