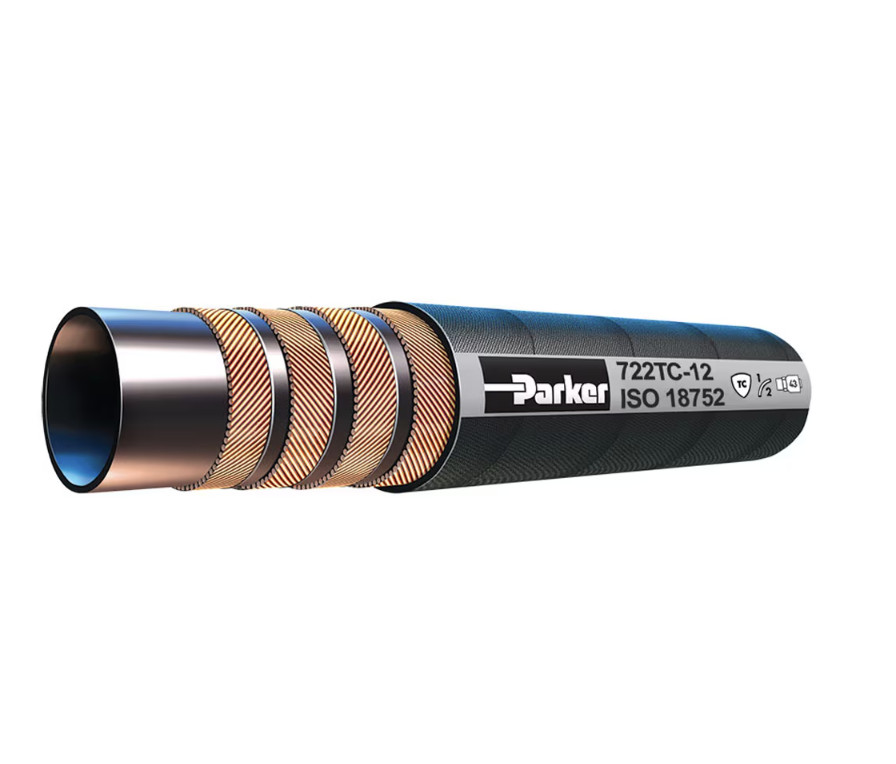

Parker's 722 hose, within the GlobalCore product line, was designed to deliver consistency and reliability with a constant working pressure of 4,000 PSI in all sizes. It is light, durable, and easily bent making installation easier and quicker. The 722 Hose is designed, built and tested to the ISO 18752 performance specifications. Sizes range from 3/8” to 1” in diameter with different cover options available for various markets
Markets:
• Transportation
• Military
• Construction
• Agriculture
• Grounds & Building Maintenance
• Forestry
• Utility Equipment
• Waste & Refuse
Features/Benefits:
• Standard, ToughCover or SuperTough cover options to prevent abrasion
• Half SAE bend radius for ease of installation and low force to flex
• 4,000 PSI constant working pressure in all sizes
• 4-spiral construction for longer life in high-impulse, heavy-duty cycle applications
Applications:
• Petroleum base hydraulic fluids and lubricating oils
Compatible Fittings:
• 43 series fittings
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Media: | Lubricants, Petroleum Hydraulic Fluids |
| Maximum Operating Pressure: | 280 bar, 4000 psi, 28 MPa |
| Specifications Met: | ISO 18752, MSHA TC & ST covers only |
| Compatible Fitting: | 43 Series |
| Weight: | 0.60 to 2.99 kg/m, 0.40 to 2.01 lb/ft |
| Inside Diameter: | 3/8 to 1-1/2 inch, 10 to 38 mm |
| Maximum Operating Temperature: | 100 °C (TC & ST), 125 °C (TC & ST), 212 °F (TC & ST), 257 °F (TC & ST) |
| Application: | Agriculture Equipment, Construction Equipment, Forestry, Hydraulics, Transportation |
| Hose Reinforcement Material: | 4 Spirals |
| Minimum Bend Radius: | 2-1/2 to 10 inch, 65 to 250 mm |
| Size: | -6 to -16 |
| Outside Diameter: | 0.78 to 2.06 inch, 19.8 to 52.5 mm |
| Cover Material: | Synthetic Rubber, Synthetic Rubber Abrasion Resistant, Synthetic Rubber Super Abrasion Resistant |
| Hose Inner Tube Material: | Synthetic Rubber |
| Products | Hose I.D. (size) | Hose Cover Type |
|---|---|---|
| 722-6 | -6 | Standard Cover |
| 722-8 | -8 | Standard Cover |
| 722-10 | -10 | Standard Cover |
| 722-12 | -12 | Standard Cover |
| 722-16 | -16 | Standard Cover |
| 722TC-6 | -6 | ToughCover |
| 722TC-8 | -8 | ToughCover |
| 722TC-10 | -10 | ToughCover |
| 722TC-12 | -12 | ToughCover |
| 722TC-16 | -16 | ToughCover |
| 722ST-6 | -6 | SuperTough Cover |
| 722ST-8 | -8 | SuperTough Cover |
| 722ST-10 | -10 | SuperTough Cover |
| 722ST-12 | -12 | SuperTough Cover |
| 722ST-16 | -16 | SuperTough Cover |
