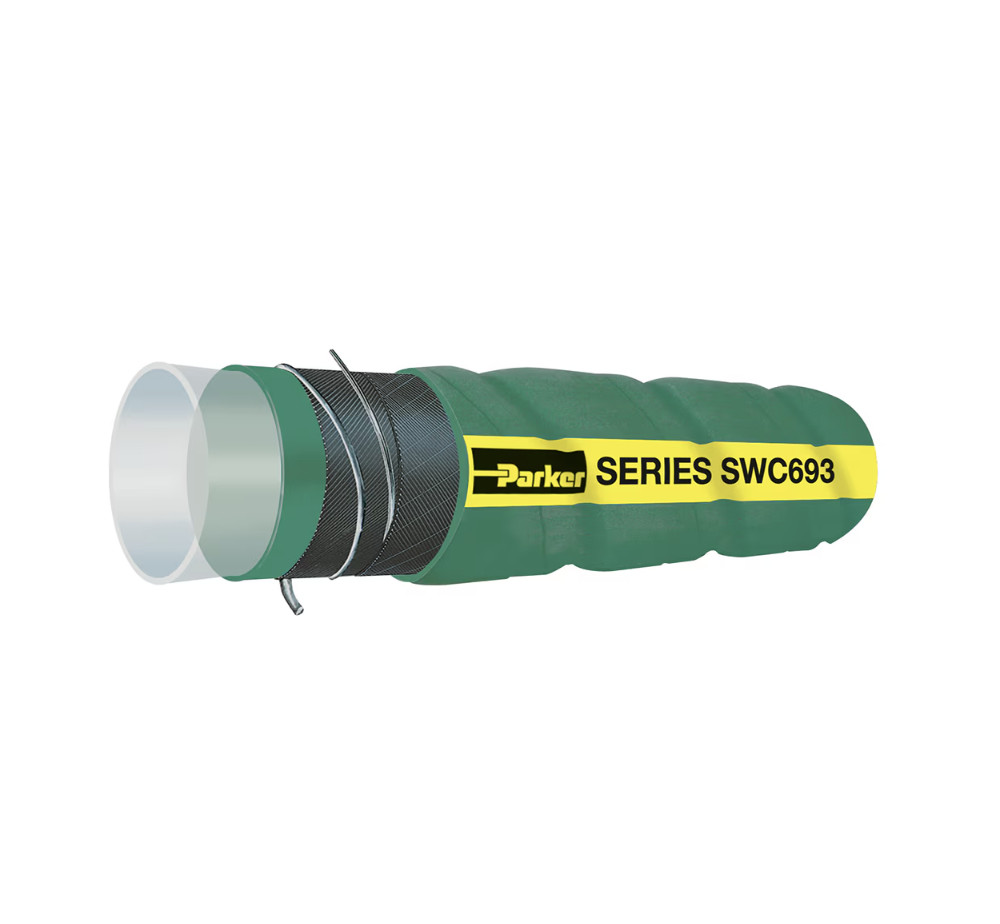

Parker's Wildcatter UHMWPE Corrugated Chemical Suction Hose provides superior service across a wide variety of chemical media in high pressure and high temperature applications. The hose provides full suction capability, superior kink resistance and minimal force-to-bend for easy operator handling. The hose will not contaminate the product being conveyed, and is crush resistant and durable. The blue or geen cover is easily identified and resists abrasion, chemicals and weathering for maximum performance. Wildcatter Chemical Hose is qualified with permanent crimp couplings for a safe and secure connection and provides robust service in challenging applications.
The Wildcatter trade name indicates the product is designed and manufactured for premium service in oilfield applications. However, Wildcatter products may be used in other industries, markets and applications where the product meets the required performance criteria.
Markets:
• General Industrial
• Oilfield
• Oil & Gas
• Transportation
Features/Benefits:
• Tube: Translucent ultra-high molecular weight polyethylene UHMWPE for chemical resistance to 180°F.
• Reinforcement: Multiple textile plies for strength and durability, and a dual wire helix for full suction capability and a path to conduct a static charge to ground.
• Cover: Blue or green EPDM for abrasion and chemical resistance.
• Couplings: Qualified with steel crimp couplings for a durable, safe and secure connection.
Applications:
• Acids
• Chemicals
• Solvents
• Oilfield equipment and service trucks
• Bulk depots and storage facilities
• In-plant transfer
• Refineries
• Transport tank trucks
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Cover Material: | Ethylene Propylene Diene Monomer (EPDM) |
| Media: | Chemicals - Check your fluid compatibility with our catalogue chart. |
| Specifications Met: | n/a |
| Compatible Fitting: | n/a |
| Inside Diameter: | 1 to 4 inch, 25.4 to 101.6 mm |
| Cover Color: | Blue, Green |
| Maximum Operating Pressure: | 14 to 17 bar, 1.4 to 1.7 MPa, 200 to 250 psi |
| Hose Reinforcement Material: | Multiple Plies of Textile with Dual Wire Helix |
| Outside Diameter: | 1.47 to 4.61 inch, 37.3 to 117.0 mm |
| Application: | Chemical Transfer |
| Hose Inner Tube Material: | Ultra High Molecular Weight Polyethylene (UHMWPE) (UHMWPE) |
| Cover Structure: | Corrugated |
| Maximum Operating Temperature: | 180 °F, 82 °C |
| Nominal Hose Inside Diameter: | 25 to 100 mm |
| Weight: | 0.38 to 2.7 lb/ft, 0.57 to 2.16 kg/m |
| Minimum Bend Radius: | 1 to 8 inch, 25 to 203 mm |
| Products | Hose I.D. (inch) | Color |
|---|---|---|
| SWC693-1000 | 1 | Green |
| SWC693-1250 | 1-1/4 | Green |
| SWC693-1500 | 1-1/2 | Green |
| SWC693-2000 | 2 | Green |
| SWC693-3000 | 3 | Green |
| SWC693-4000 | 4 | Green |
| SWC693B-1000 | 1 | Blue |
| SWC693B-1250 | 1-1/4 | Blue |
| SWC693B-1500 | 1-1/2 | Blue |
| SWC693B-2000 | 2 | Blue |
| SWC693B-3000 | 3 | Blue |
| SWC693B-4000 | 4 | Blue |
