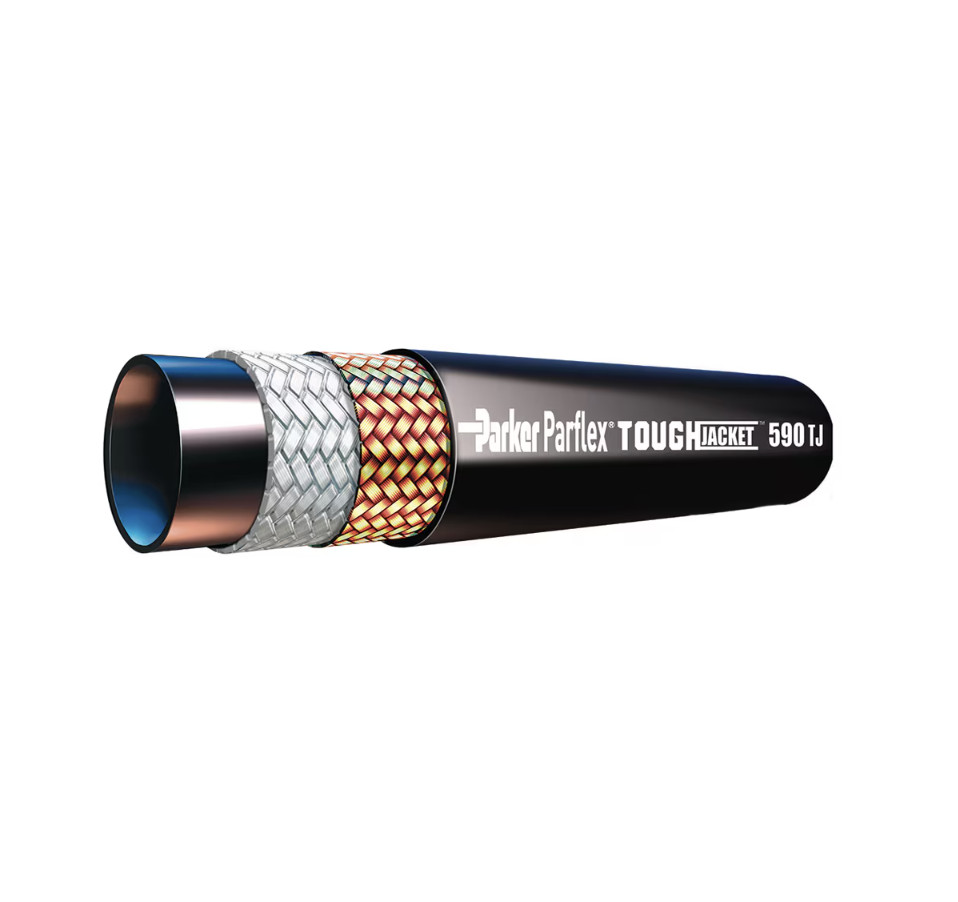

The TOUGHACKET™ 590TJ compact hydraulic hose from Parker Parflex is a flexible thermoplastic hose featuring the abrasion-resistant TOUGHJACKET cover. The 590TJ hose delivers low length change under pressure and consistent long lengths. Designed to withstand the strains of demanding use, the compact 590TJ hydraulic hose is the optimal solution for large-scale, heavy-duty applications, including construction equipment, agriculture equipment, transportation, and more. Parflex 590TJ is also light-weight for easier routing and handles temperatures from -40°F to +250°F.
Markets:
• Fluid Handling
• Industrial
• Mobile Equipment
• Transportation
Features/Benefits:
• TOUGHJACKET Polyurethane cover for best abrasion resistance
• Low length change under pressure
• Consistent long lengths
• Smaller O.D. than rubber 100R16 hose for easier routing
• 23% to 42% lighter weight than rubber 100R2 hose
• Twin and multi-line constructions available
Applications:
• Construction Equipment
• Over-the-Sheave Installations
• Booms and Cable Tracks
• Machine Tools
• Hydrostatic Transmissions
• Refuse Vehicles
• Agriculture Machinery
Certifications/Compliance:
• MSHA compliant cover
Technical Specifications:
• Hose I.D. is nominal
• Hose O.D. is maximum
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Design Factor: | 4 |
| Cover Material: | Polyurethane |
| Media: | Petroleum Hydraulic Fluids, Water |
| Specifications Met: | MSHA |
| Compatible Fitting: | 43 Series, 56 Series |
| Weight: | 0.21 to 0.88 kg/m, 0.14 to 0.59 lb/ft |
| Inside Diameter: | 1/4 to 1 inch, 6 to 25 mm |
| Maximum Operating Temperature: | 250 °F, 121 °C |
| Maximum Operating Pressure: | 140 to 350 bar, 14.0 to 35.0 MPa, 2030 to 5076 psi |
| Application: | Agriculture Equipment, Construction Equipment, Hydrostatic Drive, Industrial Machinery, Mobile Hydraulic Equipment, Over-the-Sheave |
| Hose Reinforcement Material: | Braid of High Tensile Steel Wire |
| Product Style: | Single Line, Twin-Line |
| Hose Inner Tube Material: | Copolyester |
| Hose Cover Type: | ToughJACKET™ |
| Minimum Bend Radius: | 1-3/4 to 6 inch, 44.5 to 150 mm |
| Size: | -4 to -16 |
| Products | Hose I.D. (inch) | Hose Style |
|---|---|---|
| 590TJ-4 | 1/4 | Single |
| 590TJ-6 | 3/8 | Single |
| 590TJ-8 | 1/2 | Single |
| 590TJ-12 | 3/4 | Single |
| 590TJ-16 | 1 | Single |
| 590TJ-6-50 | 3/8 | Single |
| 590TJ-6-6 | 3/8 | Twin-Line |
| 590TJ-8-50 | 1/2 | Single |
| 590TJ-8-8 | 1/2 | Twin-Line |
