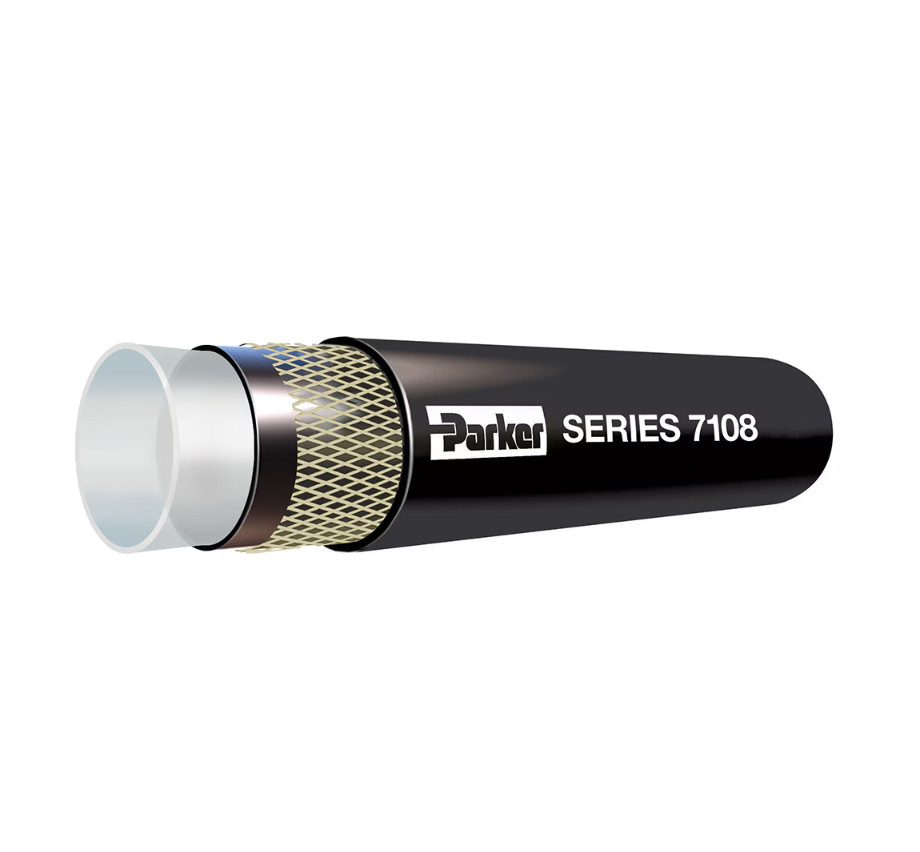

Acid & Chemicals Transfer hose - Series 7108

Brand : Parker Hannifin

Parker Hannifin M6d43359ba1ca4b8162a5e04cea5a764d3 Acid & Chemicals Transfer hose - Series 7108
Parker's Series 7108 provides excellent service across a wide variety of chemical media used in paint transfer and air powered paint spray systems. The hose tube will not leach into and contaminate the product being conveyed and resists mild chemicals, oil and weathering to provide maximum performance. Series 7108 is qualified with Parker permanent crimp couplings Series 43 for a safe and secure connection. Do not use in high pressure paint spray applications requiring a statically conductive hose.

Markets
• Construction
• General Industrial
• Manufacturing

Features/Benefits
• Tube: Translucent nylon for chemical resistance to 93°C
• Reinforcement: Multiple aramid plies for strength and durability
• Black chloroprene cover for abrasion and oil resistance.
• Qualified with steel crimp couplings for a durable, safe and secure connection
• Design Factor 4:1  enhances safety for operators and equipment

Applications
• Mild chemicals
• Lacquers
• Paints & paint thinners
• Solvents
• Air powered paint systems
• In-plant and tank transfer
• Mixing operations

Minimum Operating Temperature:-40 °F, -40 °C
Cover Structure:Smooth
Media:Chemicals - Check your fluid compatibility with our catalogue chart.
Specifications Met:n/a
Compatible Fitting:HY Series, 43 Series
Weight:0.13 to 0.24 kg/m, 0.09 to 0.16 lb/ft
Inside Diameter:1/4 to 3/8 inch, 6.4 to 9.5 mm
Application:Chemical Transfer
Hose Reinforcement Material:Multiple Plies of Aramid
Nominal Hose Inside Diameter:DN6 to 12
Minimum Bend Radius:2.992 to 4.016 inch, 76 to 102 mm
Outside Diameter:0.488 to 0.681 inch, 12.4 to 17.3 mm
Size:-4 to -8
Cover Material:Chloroprene Rubber (CR)
Hose Inner Tube Material:Translucent, Polyamide (PA)
Maximum Operating Pressure:35 bar, 500 psi, 3.5 MPa
Maximum Operating Temperature:180 °F, 82 °C



ProductsMaximum Working Pressure (psi)Hose I.D. (inch)Maximum Working Pressure (Bar)Hose I.D. (mm)
#7108-2515001/434,56,4
#7108-3815003/834,59,5
