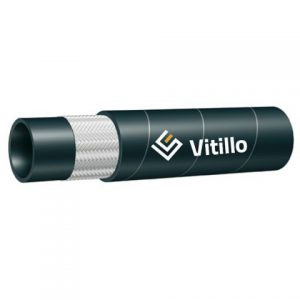

TEKNO 2TE

Brand : Vitillo

Code	D.N.	Hose size	Outside Diameter	Max Working Pressure	Minimum Burst Pressure	Minimum Bend Radius	Weight	Cover Type
TH2TE03	5	4.8 mm 3/16 “	11.8 mm 0.46 inch	80 bar 1160 psi	320 bar 4640 psi	25 mm 0.98 inch	0.12 kg/mt 0.08 lb/ft	Standard
TH2TE04	6	6.4 mm 1/4 “	13.2 mm 0.52 inch	75 bar 1088 psi	300 bar 4350 psi	40 mm 1.57 inch	0.15 kg/mt 0.10 lb/ft	Standard
TH2TE05	8	7.9 mm 5/16 “	14.8 mm 0.58 inch	68 bar 986 psi	272 bar 3944 psi	50 mm 1.97 inch	0.17 kg/mt 0.11 lb/ft	Standard
TH2TE06	10	9.5 mm 3/8 “	16.4 mm 0.65 inch	63 bar 914 psi	252 bar 3654 psi	60 mm 2.36 inch	0.20 kg/mt 0.13 lb/ft	Standard
TH2TE08	12	12.8 mm 1/2 “	19.7 mm 0.78 inch	58 bar 841 psi	232 bar 3364 psi	70 mm 2.75 inch	0.24 kg/mt 0.16 lb/ft	Standard
TH2TE10	16	16.0 mm 5/8 “	23.6 mm 0.93 inch	50 bar 725 psi	200 bar 2900 psi	90 mm 3.54 inch	0.33 kg/mt 0.22 lb/ft	Standard
TH2TE12	19	19.0 mm 3/4 “	27.0 mm 1.06 inch	45 bar 653 psi	180 bar 2610 psi	110 mm 4.33 inch	0.38 kg/mt 0.26 lb/ft	Standard
TH2TE16	25	25.4 mm 1 “	34.0 mm 1.34 inch	40 bar 580 psi	160 bar 2320 psi	150 mm 5.90 inch	0.55 kg/mt 0.37 lb/ft	Standard
TH2TE20	31	31.8 mm 1 1/4 “	41.0 mm 1.61 inch	35 bar 508 psi	140 bar 2030 psi	170 mm 6.69 inch	0.74 kg/mt 0.50 lb/ft	Standard
