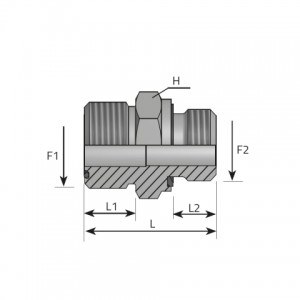

| Koд | F1 inch | F2 inch | H mm | L mm | L1 mm | L2 mm | Давление |
|---|---|---|---|---|---|---|---|
| AMO06MG02R | 9/16 | 1/8 | 17 | 25.50 | 10.00 | 8.00 | 630 bar 9136 psi |
| AMO06MG04R | 9/16 | 1/4 | 19 | 31.00 | 10.00 | 12.00 | 630 bar 9136 psi |
| AMO06MG06R | 9/16 | 3/8 | 22 | 31.50 | 10.00 | 12.00 | 630 bar 9136 psi |
| AMO06MG08R | 9/16 | 1/2 | 27 | 35.50 | 10.00 | 14.00 | 630 bar 9136 psi |
| AMO09MG02R | 11/16 | 1/8 | 19 | 27.50 | 11.00 | 8.00 | 630 bar 9136 psi |
| AMO09MG04R | 11/16 | 1/4 | 19 | 32.00 | 11.00 | 12.00 | 630 bar 9136 psi |
| AMO09MG06R | 11/16 | 3/8 | 22 | 32.50 | 11.00 | 12.00 | 630 bar 9136 psi |
| AMO09MG08R | 11/16 | 1/2 | 27 | 36.50 | 11.00 | 14.00 | 630 bar 9136 psi |
| AMO09MG12R | 11/16 | 3/4 | 32 | 40.00 | 11.00 | 16.00 | 420 bar 6091 psi |
| AMO11MG04R | 13/16 | 1/4 | 22 | 41.00 | 13.00 | 12.00 | 630 bar 9136 psi |
| AMO11MG06R | 13/16 | 3/8 | 22 | 34.50 | 13.00 | 12.00 | 630 bar 9136 psi |
| AMO11MG08R | 13/16 | 1/2 | 27 | 44.00 | 13.00 | 14.00 | 630 bar 9136 psi |
| AMO11MG12R | 13/16 | 3/4 | 32 | 46.00 | 13.00 | 16.00 | 420 bar 6091 psi |
| AMO13MG04R | 1 | 1/4 | 27 | 38.00 | 15.50 | 12.00 | 420 bar 6091 psi |
| AMO13MG06R | 1 | 3/8 | 27 | 38.50 | 15.50 | 12.00 | 420 bar 6091 psi |
| AMO13MG08R | 1 | 1/2 | 27 | 41.00 | 15.50 | 14.00 | 420 bar 6091 psi |
| AMO13MG12R | 1 | 3/4 | 32 | 44.50 | 15.50 | 16.00 | 420 bar 6091 psi |
| AMO13MG16R | 1 | 1 | 41 | 48.00 | 15.50 | 18.00 | 420 bar 6091 psi |
| AMO14MG04R | 1 3/16 | 1/4 | 32 | 41.00 | 17.00 | 12.00 | 420 bar 6091 psi |
| AMO14MG08R | 1 3/16 | 1/2 | 32 | 44.00 | 17.00 | 14.00 | 420 bar 6091 psi |
| AMO14MG12R | 1 3/16 | 3/4 | 32 | 46.00 | 17.00 | 16.00 | 420 bar 6091 psi |
| AMO14MG16R | 1 3/16 | 1 | 41 | 49.50 | 17.00 | 18.00 | 420 bar 6091 psi |
| AMO14MG20R | 1 3/16 | 1 1/4 | 50 | 53.50 | 17.00 | 20.00 | 420 bar 6091 psi |
| AMO15MG04R | 1 7/16 | 1/4 | 41 | 43.00 | 17.50 | 12.00 | 420 bar 6091 psi |
| AMO15MG06R | 1 7/16 | 3/8 | 41 | 43.50 | 17.50 | 12.00 | 420 bar 6091 psi |
| AMO15MG12R | 1 7/16 | 3/4 | 41 | 48.00 | 17.50 | 16.00 | 420 bar 6091 psi |
| AMO15MG16R | 1 7/16 | 1 | 41 | 50.00 | 17.50 | 18.00 | 420 bar 6091 psi |
| AMO15MG20R | 1 7/16 | 1 1/4 | 50 | 54.00 | 17.50 | 20.00 | 420 bar 6091 psi |
| AMO15MG24R | 1 7/16 | 1 1/2 | 55 | 57.50 | 17.50 | 22.00 | 280 bar 4060 psi |
| AMO21MG16R | 1 11/16 | 1 | 46 | 52.00 | 17.50 | 18.00 | 280 bar 4060 psi |
| AMO21MG20R | 1 11/16 | 1 1/4 | 50 | 54.00 | 17.50 | 20.00 | 280 bar 4060 psi |
| AMO21MG24R | 1 11/16 | 1 1/2 | 55 | 57.50 | 17.50 | 22.00 | 280 bar 4060 psi |
| AMO32MG24R | 2 | 1 1/2 | 55 | 57.50 | 17.50 | 22.00 | 280 bar 4060 psi |
