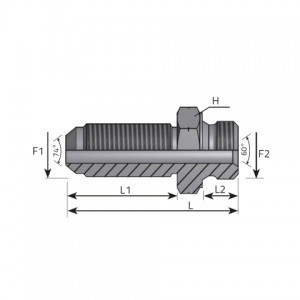

| Koд | F1 inch | F2 mm | F2 Pitch mm | H mm | L mm | L1 mm | L2 mm | Давление |
|---|---|---|---|---|---|---|---|---|
| AMJ04MM10L | 7/16 | M 10.0 | X 1.00 | 14 | 51.00 | 35.00 | 9.00 | 350 bar 5075 psi |
| AMJ05MM10L | 1/2 | M 10.0 | X 1.00 | 14 | 53.00 | 37.00 | 9.00 | 350 bar 5075 psi |
| AMJ05MM12L | 1/2 | M 12.0 | X 1.50 | 17 | 55.50 | 37.00 | 11.00 | 350 bar 5075 psi |
| AMJ05MM14L | 1/2 | M 14.0 | X 1.50 | 19 | 56.50 | 37.00 | 11.00 | 350 bar 5075 psi |
| AMJ06MM14L | 9/16 | M 14.0 | X 1.50 | 19 | 58.50 | 39.00 | 11.00 | 350 bar 5075 psi |
| AMJ06MM16L | 9/16 | M 16.0 | X 1.50 | 22 | 60.00 | 39.00 | 12.50 | 350 bar 5075 psi |
| AMJ08MM16L | 3/4 | M 16.0 | X 1.50 | 22 | 69.00 | 48.00 | 12.50 | 350 bar 5075 psi |
| AMJ08MM18L | 3/4 | M 18.0 | X 1.50 | 24 | 70.50 | 48.00 | 13.50 | 350 bar 5075 psi |
| AMJ10MM18L | 7/8 | M 18.0 | X 1.50 | 24 | 75.50 | 53.00 | 13.50 | 350 bar 5075 psi |
| AMJ10MM22L | 7/8 | M 22.0 | X 1.50 | 27 | 78.00 | 53.00 | 15.00 | 315 bar 4568 psi |
| AMJ12MM22L | 1 1/16 | M 22.0 | X 1.50 | 30 | 89.00 | 63.00 | 15.00 | 315 bar 4568 psi |
| AMJ12MM27L | 1 1/16 | M 27.0 | X 2.00 | 32 | 92.50 | 63.00 | 18.50 | 315 bar 4568 psi |
| AMJ16MM27L | 1 5/16 | M 27.0 | X 2.00 | 36 | 102.00 | 72.00 | 18.50 | 280 bar 4060 psi |
| AMJ16MM33L | 1 5/16 | M 33.0 | X 2.00 | 41 | 102.50 | 72.00 | 18.50 | 280 bar 4060 psi |
| AMJ20MM42L | 1 5/8 | M 42.0 | X 2.00 | 50 | 121.00 | 88.00 | 19.00 | 240 bar 3480 psi |
| AMJ24MM48L | 1 7/8 | M 48.0 | X 2.00 | 55 | 136.00 | 98.00 | 22.00 | 240 bar 3480 psi |
