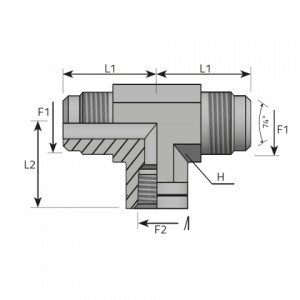

| Koд | F1 inch | F2 inch | H mm | L1 mm | L2 mm | Давление |
|---|---|---|---|---|---|---|
| TMJ04FFN02P | 7/16 | 1/8 | 14 | 27.50 | 17.00 | 345 bar 5003 psi |
| TMJ04FFN04P | 7/16 | 1/4 | 19 | 29.00 | 22.50 | 345 bar 5003 psi |
| TMJ05FFN02P | 1/2 | 1/8 | 14 | 27.50 | 17.00 | 345 bar 5003 psi |
| TMJ05FFN04P | 1/2 | 1/4 | 19 | 29.00 | 22.50 | 345 bar 5003 psi |
| TMJ06FFN02P | 9/16 | 1/8 | 14 | 27.50 | 17.00 | 345 bar 5003 psi |
| TMJ06FFN04P | 9/16 | 1/4 | 19 | 31.00 | 22.50 | 345 bar 5003 psi |
| TMJ06FFN06P | 9/16 | 3/8 | 22 | 31.50 | 26.00 | 310 bar 4495 psi |
| TMJ08FFN04P | 3/4 | 1/4 | 19 | 32.00 | 22.50 | 310 bar 4495 psi |
| TMJ08FFN06P | 3/4 | 3/8 | 22 | 36.00 | 36.00 | 310 bar 4495 psi |
| TMJ08FFN08P | 3/4 | 1/2 | — | — | — | 240 bar 3480 psi |
| TMJ10FFN08P | 7/8 | 1/2 | 27 | 42.00 | 31.00 | 240 bar 3480 psi |
| TMJ12FFN08P | 1 1/16 | 1/2 | 27 | 42.00 | 31.00 | 240 bar 3480 psi |
| TMJ12FFN12P | 1 1/16 | 3/4 | 33 | 48.00 | 34.50 | 240 bar 3480 psi |
| TMJ16FFN16P | 1 5/16 | 1 | 41 | 55.00 | 41.00 | 210 bar 3045 psi |
