Адаптер IG-JIC вращающаяся / AG метрический с кольцом и зажимом. (AFGJ..MM.R)

Brand : Vitillo

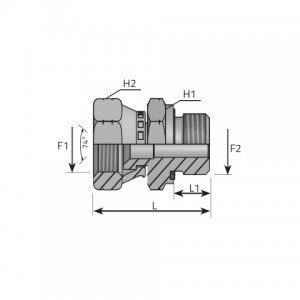

Koд	F1 inch	F2 mm	F2 Pitch mm	H1 mm	H2 mm	L mm	L1 mm	Давление	Нота
AFGJ04MM10R	7/16	M 10.0	X 1.00	14	15	34.50	8.00	310 bar 4495 psi
AFGJ04MM12R	7/16	M 12.0	X 1.50	17	15	34.50	8.00	275 bar 3988 psi
AFGJ05MM10R	1/2	M 10.0	X 1.00	14	17	34.50	8.00	275 bar 3988 psi
AFGJ05MM12R	1/2	M 12.0	X 1.50	17	17	39.00	8.00	275 bar 3988 psi
AFGJ05MM14R	1/2	M 14.0	X 1.50	19	17	38.00	12.00	275 bar 3988 psi
AFGJ06MM14R	9/16	M 14.0	X 1.50	19	19	38.80	12.00	275 bar 3988 psi
AFGJ06MM16R	9/16	M 16.0	X 1.50	22	19	39.30	12.00	210 bar 3045 psi
AFGJ08MM16R	3/4	M 16.0	X 1.50	22	24	41.60	12.00	275 bar 3988 psi
AFGJ08MM18R	3/4	M 18.0	X 1.50	24	24	42.60	12.00	275 bar 3988 psi
AFGJ10MM18R	7/8	M 18.0	X 1.50	24	27	46.60	12.00	210 bar 3045 psi
AFGJ10MM20R	7/8	M 20.0	X 1.50	27	27	49.60	14.00	210 bar 3045 psi
AFGJ10MM22R	7/8	M 22.0	X 1.50	27	27	50.10	14.00	210 bar 3045 psi
AFGJ12MM22R	1 1/16	M 22.0	X 1.50	27	32	50.20	14.00	210 bar 3045 psi	*
AFGJ12MM27R	1 1/16	M 27.0	X 2.00	32	32	52.70	16.00	210 bar 3045 psi	*
AFGJ16MM27R	1 5/16	M 27.0	X 2.00	32	41	56.40	16.00	170 bar 2465 psi	*
AFGJ16MM33R	1 5/16	M 33.0	X 2.00	41	41	59.40	18.00	170 bar 2465 psi	*
AFGJ20MM42R	1 5/8	M 42.0	X 2.00	50	50	63.80	20.00	140 bar 2030 psi	*
AFGJ24MM48R	1 7/8	M 48.0	X 2.00	55	55	73.30	22.00	105 bar 1523 psi	*
