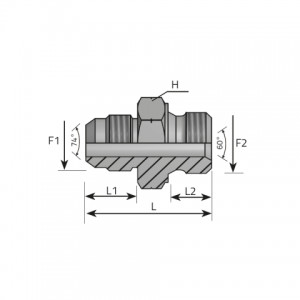

| Koд | F1 inch | F2 mm | F2 Pitch mm | H mm | L mm | L1 mm | L2 mm | Давление |
|---|---|---|---|---|---|---|---|---|
| AMJ04MM10 | 7/16 | M 10.0 | X 1.00 | 14 | 30.00 | 14.00 | 9.00 | 345 bar 5003 psi |
| AMJ04MM12 | 7/16 | M 12.0 | X 1.50 | 17 | 33.00 | 14.00 | 11.00 | 345 bar 5003 psi |
| AMJ05MM10 | 1/2 | M 10.0 | X 1.00 | 14 | 30.00 | 14.00 | 9.00 | 345 bar 5003 psi |
| AMJ05MM12 | 1/2 | M 12.0 | X 1.50 | 17 | 33.00 | 14.00 | 11.00 | 345 bar 5003 psi |
| AMJ05MM14 | 1/2 | M 14.0 | X 1.50 | 19 | 34.00 | 14.00 | 11.00 | 310 bar 4495 psi |
| AMJ06MM14 | 9/16 | M 14.0 | X 1.50 | 19 | 34.10 | 14.10 | 11.00 | 310 bar 4495 psi |
| AMJ06MM16 | 9/16 | M 16.0 | X 1.50 | 22 | 35.10 | 14.10 | 12.50 | 240 bar 3480 psi |
| AMJ08MM14 | 3/4 | M 14.0 | X 1.50 | 19 | 38.00 | 16.70 | 11.00 | 310 bar 4495 psi |
| AMJ08MM16 | 3/4 | M 16.0 | X 1.50 | 22 | 38.00 | 16.70 | 12.50 | 240 bar 3480 psi |
| AMJ08MM18 | 3/4 | M 18.0 | X 1.50 | 24 | 39.50 | 16.70 | 13.50 | 240 bar 3480 psi |
| AMJ10MM18 | 7/8 | M 18.0 | X 1.50 | 24 | 42.00 | 19.30 | 13.50 | 240 bar 3480 psi |
| AMJ10MM20 | 7/8 | M 20.0 | X 1.50 | 27 | 44.50 | 19.30 | 15.00 | 240 bar 3480 psi |
| AMJ10MM22 | 7/8 | M 22.0 | X 1.50 | 27 | 44.50 | 19.30 | 15.00 | 240 bar 3480 psi |
| AMJ12MM22 | 1 1/16 | M 22.0 | X 1.50 | 30 | 48.00 | 21.90 | 15.00 | 240 bar 3480 psi |
| AMJ12MM27 | 1 1/16 | M 27.0 | X 2.00 | 32 | 52.00 | 21.90 | 18.50 | 240 bar 3480 psi |
| AMJ16MM27 | 1 5/16 | M 27.0 | X 2.00 | 36 | 53.00 | 23.10 | 18.50 | 210 bar 3045 psi |
| AMJ16MM33 | 1 5/16 | M 33.0 | X 2.00 | 41 | 53.00 | 23.10 | 18.50 | 210 bar 3045 psi |
| AMJ20MM42 | 1 5/8 | M 42.0 | X 2.00 | 50 | 58.00 | 24.30 | 19.00 | 170 bar 2465 psi |
| AMJ24MM48 | 1 7/8 | M 48.0 | X 2.00 | 55 | 65.50 | 27.50 | 22.00 | 140 bar 2030 psi |
