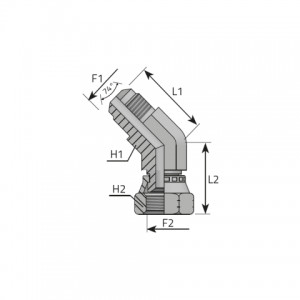

| Koд | F1 inch | F2 inch | H1 mm | H2 mm | L1 mm | L2 mm | Давление | |
|---|---|---|---|---|---|---|---|---|
| QMJ04FGJ04 | 7/16 | 7/16 | 14 | 15 | 19.50 | 24.50 | 310 bar 4495 psi |
|
| QMJ05FGJ05 | 1/2 | 1/2 | 14 | 17 | 20.00 | 25.50 | 275 bar 3988 psi |
|
| QMJ06FGJ06 | 9/16 | 9/16 | 14 | 19 | 21.50 | 27.30 | 275 bar 3988 psi |
|
| QMJ08FGJ08 | 3/4 | 3/4 | 19 | 24 | 25.50 | 23.10 | 275 bar 3988 psi |
|
| QMJ10FGJ10 | 7/8 | 7/8 | 22 | 27 | 29.00 | 36.60 | 210 bar 3045 psi |
|
| QMJ12FGJ12 | 1 1/16 | 1 1/16 | 27 | 32 | 33.00 | 37.20 | 210 bar 3045 psi |
|
| QMJ16FGJ16 | 1 5/16 | 1 5/16 | 33 | 41 | 38.00 | 45.40 | 170 bar 2465 psi |
|
| QMJ20FGJ20 | 1 5/8 | 1 5/8 | 41 | 50 | 40.00 | 51.30 | 140 bar 2030 psi |
