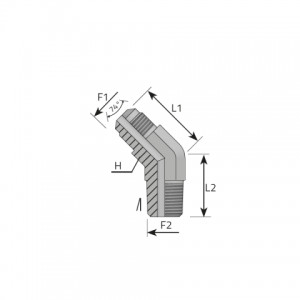

| Koд | F1 inch | F2 inch | H mm | L1 mm | L2 mm | Давление | |
|---|---|---|---|---|---|---|---|
| QMJ04MGK02 | 7/16 | 1/8 | 14 | 19.50 | 16.50 | 345 bar 5003 psi |
|
| QMJ04MGK04 | 7/16 | 1/4 | 14 | 20.00 | 22.00 | 345 bar 5003 psi |
|
| QMJ05MGK02 | 1/2 | 1/8 | 14 | 20.00 | 16.50 | 345 bar 5003 psi |
|
| QMJ05MGK04 | 1/2 | 1/4 | 14 | 20.00 | 22.00 | 345 bar 5003 psi |
|
| QMJ06MGK02 | 9/16 | 1/8 | 14 | 21.50 | 16.50 | 345 bar 5003 psi |
|
| QMJ06MGK04 | 9/16 | 1/4 | 14 | 21.50 | 22.00 | 345 bar 5003 psi |
|
| QMJ06MGK06 | 9/16 | 3/8 | 19 | 23.00 | 24.00 | 310 bar 4495 psi |
|
| QMJ06MGK08 | 9/16 | 1/2 | 22 | 23.50 | 29.50 | 240 bar 3480 psi |
|
| QMJ08MGK04 | 3/4 | 1/4 | 19 | 25.50 | 24.00 | 310 bar 4495 psi |
|
| QMJ08MGK06 | 3/4 | 3/8 | 19 | 25.50 | 24.00 | 310 bar 4495 psi |
|
| QMJ08MGK08 | 3/4 | 1/2 | 22 | 26.00 | 29.50 | 240 bar 3480 psi |
|
| QMJ08MGK12 | 3/4 | 3/4 | 27 | 27.00 | 30.50 | 240 bar 3480 psi |
|
| QMJ10MGK06 | 7/8 | 3/8 | 22 | 29.00 | 25.50 | 240 bar 3480 psi |
|
| QMJ10MGK08 | 7/8 | 1/2 | 22 | 29.00 | 29.50 | 240 bar 3480 psi |
|
| QMJ10MGK12 | 7/8 | 3/4 | 27 | 30.00 | 30.50 | 240 bar 3480 psi |
|
| QMJ12MGK08 | 1 1/16 | 1/2 | 27 | 33.00 | 30.50 | 240 bar 3480 psi |
|
| QMJ12MGK12 | 1 1/16 | 3/4 | 27 | 33.00 | 30.50 | 240 bar 3480 psi |
|
| QMJ12MGK16 | 1 1/16 | 1 | 33 | 37.00 | 38.00 | 210 bar 3045 psi |
|
| QMJ16MGK12 | 1 5/16 | 3/4 | 33 | 38.00 | 33.00 | 210 bar 3045 psi |
|
| QMJ16MGK16 | 1 5/16 | 1 | 33 | 38.00 | 38.00 | 210 bar 3045 psi |
|
| QMJ20MGK16 | 1 5/8 | 1 | 41 | 40.00 | 41.00 | 170 bar 2465 psi |
|
| QMJ20MGK20 | 1 5/8 | 1 1/4 | 41 | 40.00 | 42.00 | 170 bar 2465 psi |
