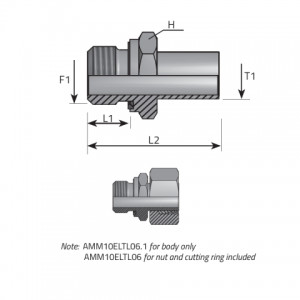

| Koд | F1 mm | F1 Pitch mm | H mm | L1 mm | L2 mm | T1 mm | Давление | Серия |
|---|---|---|---|---|---|---|---|---|
| AMM10ELTL06.1 | M 10.0 | X 1.00 | 14 | 8.00 | 32.50 | 6 | 315 bar 4568 psi |
L |
| AMM12ELTL08.1 | M 12.0 | X 1.50 | 17 | 12.00 | 38.50 | 8 | 315 bar 4568 psi |
L |
| AMM12ELTS06.1 | M 12.0 | X 1.50 | 17 | 12.00 | 39.00 | 6 | 630 bar 9137 psi |
S |
| AMM14ELTL10.1 | M 14.0 | X 1.50 | 19 | 12.00 | 39.00 | 10 | 315 bar 4568 psi |
L |
| AMM14ELTS08.1 | M 14.0 | X 1.50 | 19 | 12.00 | 41.50 | 8 | 630 bar 9137 psi |
S |
| AMM16ELTL12.1 | M 16.0 | X 1.50 | 22 | 12.00 | 42.50 | 12 | 315 bar 4568 psi |
L |
| AMM16ELTS10.1 | M 16.0 | X 1.50 | 22 | 12.00 | 44.00 | 10 | 630 bar 9137 psi |
S |
| AMM18ELTL15.1 | M 18.0 | X 1.50 | 24 | 12.00 | 43.50 | 15 | 315 bar 4568 psi |
L |
| AMM18ELTS12.1 | M 18.0 | X 1.50 | 24 | 12.00 | 46.00 | 12 | 630 bar 9137 psi |
S |
| AMM20ELTS14.1 | M 20.0 | X 1.50 | 27 | 14.00 | 50.50 | 14 | 630 bar 9137 psi |
S |
| AMM22ELTL18.1 | M 22.0 | X 1.50 | 27 | 14.00 | 45.50 | 18 | 315 bar 4568 psi |
L |
| AMM22ELTS16.1 | M 22.0 | X 1.50 | 27 | 14.00 | 51.00 | 16 | 400 bar 5801 psi |
S |
| AMM26ELTL22.1 | M 26.0 | X 1.50 | 32 | 16.00 | 48.50 | 22 | 160 bar 2320 psi |
L |
| AMM27ELTS20.1 | M 27.0 | X 2.00 | 32 | 16.00 | 59.00 | 20 | 400 bar 5801 psi |
S |
| AMM33ELTL28.1 | M 33.0 | X 2.00 | 41 | 18.00 | 53.50 | 28 | 160 bar 2320 psi |
L |
| AMM33ELTS25.1 | M 33.0 | X 2.00 | 41 | 18.00 | 66.00 | 25 | 400 bar 5801 psi |
S |
| AMM42ELTL35.1 | M 42.0 | X 2.00 | 50 | 20.00 | 62.50 | 35 | 160 bar 2320 psi |
L |
| AMM42ELTS30.1 | M 42.0 | X 2.00 | 50 | 20.00 | 71.00 | 30 | 250 bar 3626 psi |
S |
| AMM48ELTL42.1 | M 48.0 | X 2.00 | 55 | 22.00 | 68.50 | 42 | 160 bar 2320 psi |
L |
| AMM48ELTS38.1 | M 48.0 | X 2.00 | 55 | 22.00 | 82.00 | 38 | 250 bar 3626 psi |
S |
