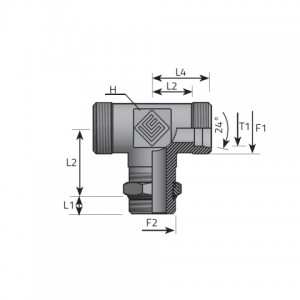

| Koд | F1 mm | F1 Pitch mm | F2 mm | F2 Pitch mm | H mm | L1 mm | L2 mm | L3 mm | L4 mm | T1 mm | Давление | Серия |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TME06LMOMR10P.1 | M 12.0 | X 1.50 | M 10.0 | X 1.00 | 14 | 7.50 | 14.00 | 20.00 | 21.00 | 6 | 315 bar 4568 psi |
L |
| TME06SMOMR12P.1 | M 14.0 | X 1.50 | M 12.0 | X 1.50 | 14 | 9.50 | 15.50 | 23.50 | 22.50 | 6 | 315 bar 4568 psi |
S |
| TME08LMOMR12P.1 | M 14.0 | X 1.50 | M 12.0 | X 1.50 | 14 | 9.50 | 16.00 | 22.50 | 23.00 | 8 | 315 bar 4568 psi |
L |
| TME08SMOMR14P.1 | M 16.0 | X 1.50 | M 14.0 | X 1.50 | 14 | 9.50 | 18.00 | 26.50 | 25.00 | 8 | 315 bar 4568 psi |
S |
| TME10LMOMR14P.1 | M 16.0 | X 1.50 | M 14.0 | X 1.50 | 14 | 9.50 | 17.00 | 25.50 | 24.00 | 10 | 315 bar 4568 psi |
L |
| TME10SMOMR16P.1 | M 18.0 | X 1.50 | M 16.0 | X 1.50 | 19 | 11.00 | 18.00 | 27.00 | 25.50 | 10 | 315 bar 4568 psi |
S |
| TME12LMOMR16P.1 | M 18.0 | X 1.50 | M 16.0 | X 1.50 | 19 | 10.00 | 19.00 | 26.00 | 26.00 | 12 | 315 bar 4568 psi |
L |
| TME12SMOMR18P.1 | M 20.0 | X 1.50 | M 18.0 | X 1.50 | 19 | 12.50 | 22.00 | 30.50 | 29.50 | 12 | 315 bar 4568 psi |
S |
| TME15LMOMR18P.1 | M 22.0 | X 1.50 | M 18.0 | X 1.50 | 22 | 11.00 | 21.00 | 30.00 | 28.00 | 15 | 315 bar 4568 psi |
L |
| TME16SMOMR22P.1 | M 24.0 | X 1.50 | M 22.0 | X 1.50 | 27 | 13.00 | 25.00 | 37.00 | 33.00 | 16 | 250 bar 3626 psi |
S |
| TME18LMOMR22P.1 | M 26.0 | X 1.50 | M 22.0 | X 1.50 | 27 | 11.00 | 24.00 | 34.00 | 31.50 | 18 | 250 bar 3626 psi |
L |
| TME20SMOMR27P.1 | M 30.0 | X 2.00 | M 27.0 | X 2.00 | 27 | 14.00 | 28.00 | 39.50 | 38.50 | 20 | 250 bar 3626 psi |
S |
| TME22LMOMR27P.1 | M 30.0 | X 2.00 | M 27.0 | X 2.00 | 27 | 13.50 | 28.00 | 36.00 | 35.50 | 22 | 160 bar 2320 psi |
L |
| TME25SMOMR33P.1 | M 36.0 | X 2.00 | M 33.0 | X 2.00 | 33 | 14.00 | 30.50 | 43.00 | 42.50 | 25 | 160 bar 2320 psi |
S |
| TME28LMOMR33P.1 | M 36.0 | X 2.00 | M 33.0 | X 2.00 | 33 | 13.50 | 31.00 | 40.50 | 38.50 | 28 | 160 bar 2320 psi |
L |
| TME30SMOMR42P.1 | M 42.0 | X 2.00 | M 42.0 | X 2.00 | 41 | 16.00 | 36.00 | 52.00 | 49.50 | 30 | 160 bar 2320 psi |
S |
| TME35LMOMR42P.1 | M 45.0 | X 2.00 | M 42.0 | X 2.00 | 41 | 13.50 | 38.00 | 48.50 | 48.50 | 35 | 160 bar 2320 psi |
L |
| TME38SMOMR48P.1 | M 52.0 | X 2.00 | M 48.0 | X 2.00 | 48 | 18.00 | 34.00 | 51.00 | 50.00 | 38 | 160 bar 2320 psi |
S |
| TME42LMOMR48P.1 | M 52.0 | X 2.00 | M 48.0 | X 2.00 | 48 | 15.00 | 38.00 | 50.00 | 49.00 | 42 | 160 bar 2320 psi |
L |
