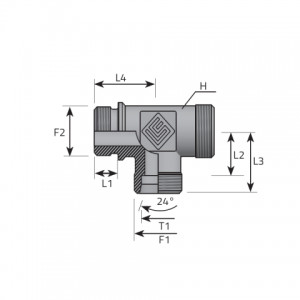

| Koд | F1 mm | F1 Pitch mm | F2 inch | H mm | L1 mm | L2 mm | L3 mm | L4 mm | T1 mm | Давление | Серия |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TME20SMG12B.1 | M 30.0 | X 2.00 | 3/4 | 27 | 16.00 | 26.50 | 26.00 | 37.00 | 20 | 400 bar 5801 psi |
S |
| TME22LMG12B.1 | M 30.0 | X 2.00 | 3/4 | 27 | 16.00 | 27.50 | 26.00 | 35.00 | 22 | 160 bar 2320 psi |
L |
| TME25SMG16B.1 | M 36.0 | X 2.00 | 1 | 36 | 18.00 | 31.00 | 30.00 | 43.00 | 25 | 400 bar 5801 psi |
S |
| TME28LMG16B.1 | M 36.0 | X 2.00 | 1 | 36 | 18.00 | 30.50 | 30.00 | 38.00 | 28 | 160 bar 2320 psi |
L |
| TME30SMG20B.1 | M 42.0 | X 2.00 | 1 1/4 | 41 | 20.00 | 55.00 | 34.00 | 49.00 | 30 | 250 bar 3626 psi |
S |
| TME35LMG20B.1 | M 45.0 | X 2.00 | 1 1/4 | 41 | 20.00 | 55.00 | 34.00 | 45.00 | 35 | 160 bar 2320 psi |
L |
| TME38SMG24B.1 | M 52.0 | X 2.00 | 1 1/2 | 50 | 22.00 | 41.00 | 39.00 | 57.00 | 38 | 250 bar 3626 psi |
S |
| TME42LMG24B.1 | M 52.0 | X 2.00 | 1 1/2 | 50 | 22.00 | 40.00 | 39.00 | 51.00 | 42 | 160 bar 2320 psi |
L |
