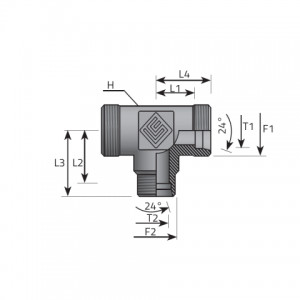

| Koд | F1 mm | F1 Pitch mm | F2 mm | F2 Pitch mm | H mm | L1 mm | L2 mm | L3 mm | L4 mm | T1 mm | T2 mm | Давление | Серия |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TME0608LP.1 | M 12.0 | X 1.50 | M 14.0 | X 1.50 | 12 | 12.00 | 12.00 | 19.00 | 19.00 | 6 | 8 | 315 bar 4568 psi |
L |
| TME0610LP.1 | M 12.0 | X 1.50 | M 16.0 | X 1.50 | 14 | 15.00 | 15.00 | 22.00 | 22.00 | 6 | 10 | 315 bar 4568 psi |
L |
| TME0806LP.1 | M 14.0 | X 1.50 | M 12.0 | X 1.50 | 12 | 12.00 | 12.00 | 19.00 | 19.00 | 8 | 6 | 315 bar 4568 psi |
L |
| TME0810LP.1 | M 14.0 | X 1.50 | M 16.0 | X 1.50 | 14 | 15.00 | 15.00 | 22.00 | 22.00 | 8 | 10 | 315 bar 4568 psi |
L |
| TME0812LP.1 | M 14.0 | X 1.50 | M 18.0 | X 1.50 | 17 | 17.00 | 17.00 | 24.00 | 24.00 | 8 | 12 | 315 bar 4568 psi |
L |
| TME1006LP.1 | M 16.0 | X 1.50 | M 12.0 | X 1.50 | 14 | 15.00 | 15.00 | 22.00 | 22.00 | 10 | 6 | 315 bar 4568 psi |
L |
| TME1006SP.1 | M 18.0 | X 1.50 | M 14.0 | X 1.50 | 17 | 17.50 | 17.50 | 25.00 | 24.50 | 10 | 6 | 630 bar 9137 psi |
S |
| TME1008LP.1 | M 16.0 | X 1.50 | M 14.0 | X 1.50 | 14 | 15.00 | 15.00 | 22.00 | 22.00 | 10 | 8 | 315 bar 4568 psi |
L |
| TME1015LP.1 | M 16.0 | X 1.50 | M 22.0 | X 1.50 | 19 | 21.00 | 21.00 | 28.00 | 28.00 | 10 | 15 | 315 bar 4568 psi |
L |
| TME1206LP.1 | M 18.0 | X 1.50 | M 12.0 | X 1.50 | 17 | 17.00 | 17.00 | 24.00 | 24.00 | 12 | 6 | 315 bar 4568 psi |
L |
| TME1208LP.1 | M 18.0 | X 1.50 | M 14.0 | X 1.50 | 17 | 17.00 | 17.00 | 24.00 | 24.00 | 12 | 8 | 315 bar 4568 psi |
L |
| TME1208SP.1 | M 20.0 | X 1.50 | M 16.0 | X 1.50 | 17 | 21.50 | 21.50 | 29.00 | 28.50 | 12 | 8 | 630 bar 9137 psi |
S |
| TME1210LP.1 | M 18.0 | X 1.50 | M 16.0 | X 1.50 | 17 | 17.00 | 17.00 | 24.00 | 24.00 | 12 | 10 | 315 bar 4568 psi |
L |
| TME1210SP.1 | M 20.0 | X 1.50 | M 18.0 | X 1.50 | 17 | 21.50 | 21.50 | 29.00 | 29.00 | 12 | 10 | 630 bar 9137 psi |
S |
| TME1215LP.1 | M 18.0 | X 1.50 | M 22.0 | X 1.50 | 19 | 21.00 | 21.00 | 28.00 | 28.00 | 12 | 15 | 315 bar 4568 psi |
L |
| TME1216SP.1 | M 20.0 | X 1.50 | M 24.0 | X 1.50 | 24 | 24.50 | 24.50 | 32.00 | 33.00 | 12 | 16 | 400 bar 5801 psi |
S |
| TME1218LP.1 | M 18.0 | X 1.50 | M 26.0 | X 1.50 | 24 | 23.50 | 23.50 | 30.50 | 30.50 | 12 | 18 | 315 bar 4568 psi |
L |
| TME1506LP.1 | M 22.0 | X 1.50 | M 12.0 | X 1.50 | 19 | 21.00 | 21.00 | 28.00 | 28.00 | 15 | 6 | 315 bar 4568 psi |
L |
| TME1510LP.1 | M 22.0 | X 1.50 | M 16.0 | X 1.50 | 19 | 21.00 | 21.00 | 28.00 | 28.00 | 15 | 10 | 315 bar 4568 psi |
L |
| TME1512LP.1 | M 22.0 | X 1.50 | M 18.0 | X 1.50 | 19 | 21.00 | 21.00 | 28.00 | 28.00 | 15 | 12 | 315 bar 4568 psi |
L |
| TME1606SP.1 | M 24.0 | X 1.50 | M 14.0 | X 1.50 | 24 | 24.50 | 24.50 | 33.00 | 31.50 | 16 | 6 | 400 bar 5801 psi |
S |
| TME1608SP.1 | M 24.0 | X 1.50 | M 16.0 | X 1.50 | 24 | 24.50 | 24.50 | 33.00 | 31.50 | 16 | 8 | 400 bar 5801 psi |
S |
| TME1610SP.1 | M 24.0 | X 1.50 | M 18.0 | X 1.50 | 24 | 24.50 | 24.50 | 33.00 | 32.00 | 16 | 10 | 400 bar 5801 psi |
S |
| TME1612SP.1 | M 24.0 | X 1.50 | M 20.0 | X 1.50 | 24 | 24.50 | 24.50 | 33.00 | 32.00 | 16 | 12 | 400 bar 5801 psi |
S |
| TME1620SP.1 | M 24.0 | X 1.50 | M 30.0 | X 2.00 | 27 | 26.50 | 26.50 | 35.00 | 37.00 | 16 | 20 | 400 bar 5801 psi |
S |
| TME1810LP.1 | M 26.0 | X 1.50 | M 16.0 | X 1.50 | 24 | 23.50 | 23.50 | 30.50 | 30.50 | 18 | 10 | 315 bar 4568 psi |
L |
| TME1812LP.1 | M 26.0 | X 1.50 | M 18.0 | X 1.50 | 24 | 23.50 | 23.50 | 31.00 | 30.50 | 18 | 12 | 315 bar 4568 psi |
L |
| TME1815LP.1 | M 26.0 | X 1.50 | M 22.0 | X 1.50 | 24 | 23.50 | 23.50 | 31.00 | 30.50 | 18 | 15 | 315 bar 4568 psi |
L |
| TME2010SP.1 | M 30.0 | X 2.00 | M 18.0 | X 1.50 | 27 | 26.50 | 26.50 | 35.00 | 37.00 | 20 | 10 | 400 bar 5801 psi |
S |
| TME2012SP.1 | M 30.0 | X 2.00 | M 20.0 | X 1.50 | 27 | 26.50 | 26.50 | 37.00 | 34.00 | 20 | 12 | 400 bar 5801 psi |
S |
| TME2016SP.1 | M 30.0 | X 2.00 | M 24.0 | X 1.50 | 27 | 26.50 | 26.50 | 37.00 | 35.00 | 20 | 16 | 400 bar 5801 psi |
S |
| TME2025SP.1 | M 30.0 | X 2.00 | M 36.0 | X 2.00 | 36 | 30.00 | 30.00 | 40.50 | 42.00 | 20 | 25 | 400 bar 5801 psi |
S |
| TME2210LP.1 | M 30.0 | X 2.00 | M 16.0 | X 1.50 | 27 | 27.50 | 27.50 | 35.00 | 34.50 | 22 | 10 | 160 bar 2320 psi |
L |
| TME2212LP.1 | M 30.0 | X 2.00 | M 18.0 | X 1.50 | 27 | 27.50 | 27.50 | 35.00 | 34.50 | 22 | 12 | 160 bar 2320 psi |
L |
| TME2215LP.1 | M 30.0 | X 2.00 | M 22.0 | X 1.50 | 27 | 27.50 | 27.50 | 35.00 | 34.50 | 22 | 15 | 160 bar 2320 psi |
L |
| TME2218LP.1 | M 30.0 | X 2.00 | M 26.0 | X 1.50 | 27 | 27.50 | 27.50 | 35.00 | 35.00 | 22 | 18 | 160 bar 2320 psi |
L |
| TME2516SP.1 | M 36.0 | X 2.00 | M 24.0 | X 1.50 | 36 | 30.00 | 30.00 | 42.00 | 38.50 | 25 | 16 | 400 bar 5801 psi |
S |
| TME2520SP.1 | M 36.0 | X 2.00 | M 30.0 | X 2.00 | 36 | 30.00 | 30.00 | 42.00 | 40.50 | 25 | 20 | 400 bar 5801 psi |
S |
| TME2530SP.1 | M 36.0 | X 2.00 | M 42.0 | X 2.00 | 41 | 35.50 | 35.50 | 47.50 | 49.00 | 25 | 30 | 400 bar 5801 psi |
S |
| TME2810LP.1 | M 36.0 | X 2.00 | M 16.0 | X 1.50 | 36 | 30.50 | 30.50 | 38.00 | 37.50 | 28 | 10 | 160 bar 2320 psi |
L |
| TME2812LP.1 | M 36.0 | X 2.00 | M 18.0 | X 1.50 | 36 | 30.50 | 30.50 | 38.00 | 37.50 | 28 | 12 | 160 bar 2320 psi |
L |
| TME2815LP.1 | M 36.0 | X 2.00 | M 22.0 | X 1.50 | 36 | 30.50 | 30.50 | 38.00 | 37.50 | 28 | 15 | 160 bar 2320 psi |
L |
| TME2818LP.1 | M 36.0 | X 2.00 | M 26.0 | X 1.50 | 36 | 30.50 | 30.50 | 38.00 | 38.00 | 28 | 18 | 160 bar 2320 psi |
L |
| TME2822LP.1 | M 36.0 | X 2.00 | M 30.0 | X 2.00 | 36 | 30.50 | 30.50 | 38.00 | 38.00 | 28 | 22 | 160 bar 2320 psi |
L |
