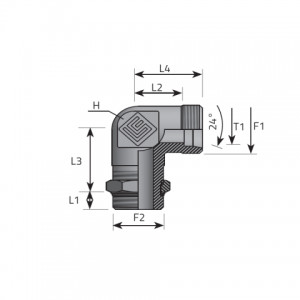

| Koд | F1 mm | F1 Pitch mm | F2 mm | F2 Pitch mm | H mm | L1 mm | L2 mm | L3 mm | L4 mm | T1 mm | Давление | Серия |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LME06LMOM10.1 | M 12.0 | X 1.50 | M 10.0 | X 1.00 | 14 | 8.50 | 14.00 | 19.00 | 21.00 | 6 | 315 bar 4568 psi |
L |
| LME06SMOM12.1 | M 14.0 | X 1.50 | M 12.0 | X 1.50 | 14 | 11.00 | 15.50 | 22.00 | 22.50 | 6 | 400 bar 5801 psi |
S |
| LME08LMOM12.1 | M 14.0 | X 1.50 | M 12.0 | X 1.50 | 14 | 11.00 | 16.00 | 21.00 | 23.00 | 8 | 315 bar 4568 psi |
L |
| LME08SMOM14.1 | M 16.0 | X 1.50 | M 14.0 | X 1.50 | 14 | 11.00 | 18.00 | 25.00 | 25.00 | 8 | 400 bar 5801 psi |
S |
| LME10LMOM14.1 | M 16.0 | X 1.50 | M 14.0 | X 1.50 | 14 | 11.00 | 17.00 | 24.00 | 24.00 | 10 | 315 bar 4568 psi |
L |
| LME10SMOM16.1 | M 18.0 | X 1.50 | M 16.0 | X 1.50 | 19 | 12.50 | 18.00 | 25.50 | 25.50 | 10 | 400 bar 5801 psi |
S |
| LME12LMOM16.1 | M 18.0 | X 1.50 | M 16.0 | X 1.50 | 19 | 11.50 | 19.00 | 24.50 | 26.00 | 12 | 250 bar 3626 psi |
L |
| LME12SMOM18.1 | M 20.0 | X 1.50 | M 18.0 | X 1.50 | 19 | 14.00 | 22.00 | 29.00 | 29.50 | 12 | 400 bar 5801 psi |
S |
| LME15LMOM18.1 | M 22.0 | X 1.50 | M 18.0 | X 1.50 | 22 | 12.50 | 21.00 | 28.50 | 28.00 | 15 | 250 bar 3626 psi |
L |
| LME16SMOM22.1 | M 24.0 | X 1.50 | M 22.0 | X 1.50 | 27 | 14.50 | 25.00 | 35.50 | 33.50 | 16 | 400 bar 5801 psi |
S |
| LME18LMOM22.1 | M 26.0 | X 1.50 | M 22.0 | X 1.50 | 27 | 12.50 | 24.00 | 32.50 | 31.50 | 18 | 250 bar 3626 psi |
L |
| LME20SMOM27.1 | M 30.0 | X 2.00 | M 27.0 | X 2.00 | 27 | 16.00 | 28.00 | 37.50 | 38.50 | 20 | 400 bar 5801 psi |
S |
| LME22LMOM27.1 | M 30.0 | X 2.00 | M 27.0 | X 2.00 | 27 | 15.50 | 28.00 | 34.00 | 35.50 | 22 | 160 bar 2320 psi |
L |
| LME25SMOM33.1 | M 36.0 | X 2.00 | M 33.0 | X 2.00 | 33 | 16.00 | 30.50 | 41.00 | 42.50 | 25 | 315 bar 4568 psi |
S |
| LME28LMOM33.1 | M 36.0 | X 2.00 | M 33.0 | X 2.00 | 33 | 15.50 | 31.00 | 38.50 | 38.50 | 28 | 160 bar 2320 psi |
L |
| LME30SMOM42.1 | M 42.0 | X 2.00 | M 42.0 | X 2.00 | 41 | 18.00 | 36.00 | 50.00 | 49.50 | 30 | 250 bar 3626 psi |
S |
| LME35LMOM42.1 | M 45.0 | X 2.00 | M 42.0 | X 2.00 | 41 | 15.50 | 38.00 | 46.50 | 48.50 | 35 | 160 bar 2320 psi |
L |
| LME38SMOM48.1 | M 52.0 | X 2.00 | M 48.0 | X 2.00 | 48 | 20.00 | 34.00 | 49.00 | 50.00 | 38 | 200 bar 2901 psi |
S |
| LME42LMOM48.1 | M 52.0 | X 2.00 | M 48.0 | X 2.00 | 48 | 17.00 | 38.00 | 48.00 | 49.00 | 42 | 160 bar 2320 psi |
L |
