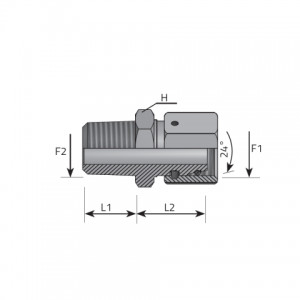

| Koд | F1 mm | F1 Pitch mm | F2 inch | H mm | L1 mm | L2 mm | T mm | Давление | Серия |
|---|---|---|---|---|---|---|---|---|---|
| AFE06LMN02 | M 12.0 | X 1.50 | 1/8 | 12 | 10.00 | 23.00 | 6 | 315 bar 4568 psi |
L |
| AFE06SMN04 | M 14.0 | X 1.50 | 1/4 | 14 | 15.00 | 25.00 | 6 | 630 bar 9137 psi |
S |
| AFE08LMN04 | M 14.0 | X 1.50 | 1/4 | 14 | 15.00 | 27.50 | 8 | 315 bar 4568 psi |
L |
| AFE08SMN04 | M 16.0 | X 1.50 | 1/4 | 14 | 15.00 | 27.50 | 8 | 630 bar 9137 psi |
S |
| AFE10LMN04 | M 16.0 | X 1.50 | 1/4 | 14 | 15.00 | 25.50 | 10 | 315 bar 4568 psi |
L |
| AFE10SMN06 | M 18.0 | X 1.50 | 3/8 | 19 | 15.00 | 29.50 | 10 | 630 bar 9137 psi |
S |
| AFE12LMN06 | M 18.0 | X 1.50 | 3/8 | 19 | 15.00 | 31.50 | 12 | 315 bar 4568 psi |
L |
| AFE12SMN06 | M 20.0 | X 1.50 | 3/8 | 19 | 15.00 | 31.50 | 12 | 630 bar 9137 psi |
S |
| AFE14SMN08 | M 22.0 | X 1.50 | 1/2 | 22 | 19.50 | 33.50 | 14 | 630 bar 9137 psi |
S |
| AFE15LMN08 | M 22.0 | X 1.50 | 1/2 | 22 | 19.50 | 29.00 | 15 | 315 bar 4568 psi |
L |
| AFE16SMN08 | M 24.0 | X 1.50 | 1/2 | 22 | 19.50 | 34.00 | 16 | 400 bar 5801 psi |
S |
| AFE18LMN08 | M 26.0 | X 1.50 | 1/2 | 24 | 19.50 | 28.50 | 18 | 315 bar 4568 psi |
L |
| AFE20SMN12 | M 30.0 | X 2.00 | 3/4 | 27 | 20.00 | 40.00 | 20 | 400 bar 5801 psi |
S |
| AFE22LMN12 | M 30.0 | X 2.00 | 3/4 | 27 | 20.00 | 29.50 | 22 | 160 bar 2320 psi |
L |
| AFE25SMN16 | M 36.0 | X 2.00 | 1 | 36 | 25.00 | 45.00 | 25 | 400 bar 5801 psi |
S |
| AFE28LMN16 | M 36.0 | X 2.00 | 1 | 36 | 25.00 | 32.00 | 28 | 160 bar 2320 psi |
L |
| AFE30SMN20 | M 42.0 | X 2.00 | 1 1/4 | 46 | 25.50 | 48.00 | 30 | 400 bar 5801 psi |
S |
| AFE35LMN20 | M 45.0 | X 2.00 | 1 1/4 | 46 | 25.50 | 39.50 | 35 | 160 bar 2320 psi |
L |
| AFE38SMN24 | M 52.0 | X 2.00 | 1 1/2 | 50 | 26.00 | 57.00 | 38 | 315 bar 4568 psi |
S |
| AFE42LMN24 | M 52.0 | X 2.00 | 1 1/2 | 50 | 26.00 | 43.50 | 42 | 160 bar 2320 psi |
L |
