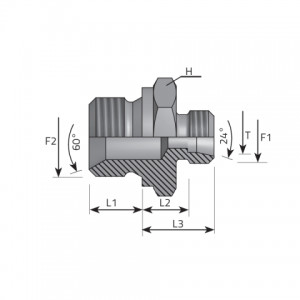

| Koд | F1 mm | F1 Pitch mm | F2 inch | H mm | L1 mm | L2 mm | L3 mm | T mm | Давление | Серия |
|---|---|---|---|---|---|---|---|---|---|---|
| AME06LMG02SV.1 | M 12.0 | X 1.50 | 1/8 | 14 | 8.00 | 8.50 | 15.50 | 6 | 315 bar 4568 psi |
L |
| AME06LMG04SV.1 | M 12.0 | X 1.50 | 1/4 | 19 | 12.00 | 10.00 | 17.00 | 6 | 315 bar 4568 psi |
L |
| AME06LMG06SV.1 | M 12.0 | X 1.50 | 3/8 | 22 | 12.00 | 11.50 | 18.50 | 6 | 315 bar 4568 psi |
L |
| AME06LMG08SV.1 | M 12.0 | X 1.50 | 1/2 | 27 | 14.00 | 12.00 | 19.00 | 6 | 315 bar 4568 psi |
L |
| AME06SMG04SV.1 | M 14.0 | X 1.50 | 1/4 | 19 | 12.00 | 13.00 | 20.00 | 6 | 630 bar 9137 psi |
S |
| AME06SMG08SV.1 | M 14.0 | X 1.50 | 1/2 | 27 | 14.00 | 18.00 | 25.00 | 6 | 630 bar 9137 psi |
S |
| AME08LMG02SV.1 | M 14.0 | X 1.50 | 1/8 | 14 | 8.00 | 8.50 | 15.50 | 8 | 315 bar 4568 psi |
L |
| AME08LMG04SV.1 | M 14.0 | X 1.50 | 1/4 | 19 | 12.00 | 10.00 | 17.00 | 8 | 315 bar 4568 psi |
L |
| AME08LMG06SV.1 | M 14.0 | X 1.50 | 3/8 | 22 | 12.00 | 11.50 | 18.50 | 8 | 315 bar 4568 psi |
L |
| AME08LMG08SV.1 | M 14.0 | X 1.50 | 1/2 | 27 | 14.00 | 12.00 | 19.00 | 8 | 315 bar 4568 psi |
L |
| AME08SMG04SV.1 | M 16.0 | X 1.50 | 1/4 | 19 | 12.00 | 15.00 | 22.00 | 8 | 630 bar 9137 psi |
S |
| AME08SMG06SV.1 | M 16.0 | X 1.50 | 3/8 | 22 | 12.00 | 15.50 | 22.50 | 8 | 630 bar 9137 psi |
S |
| AME10LMG02SV.1 | M 16.0 | X 1.50 | 1/8 | 17 | 8.00 | 10.50 | 17.50 | 10 | 315 bar 4568 psi |
L |
| AME10LMG04SV.1 | M 16.0 | X 1.50 | 1/4 | 19 | 12.00 | 11.00 | 18.00 | 10 | 315 bar 4568 psi |
L |
| AME10LMG06SV.1 | M 16.0 | X 1.50 | 3/8 | 22 | 12.00 | 12.50 | 19.50 | 10 | 315 bar 4568 psi |
L |
| AME10LMG08SV.1 | M 16.0 | X 1.50 | 1/2 | 27 | 14.00 | 13.00 | 20.00 | 10 | 315 bar 4568 psi |
L |
| AME10SMG04SV.1 | M 18.0 | X 1.50 | 1/4 | 19 | 12.00 | 14.50 | 22.00 | 10 | 630 bar 9137 psi |
S |
| AME10SMG06SV.1 | M 18.0 | X 1.50 | 3/8 | 22 | 12.00 | 15.00 | 22.50 | 10 | 630 bar 9137 psi |
S |
| AME10SMG08SV.1 | M 18.0 | X 1.50 | 1/2 | 27 | 14.00 | 17.50 | 25.00 | 10 | 630 bar 9137 psi |
S |
| AME12LMG04SV.1 | M 18.0 | X 1.50 | 1/4 | 19 | 12.00 | 12.00 | 19.00 | 12 | 315 bar 4568 psi |
L |
| AME12LMG06SV.1 | M 18.0 | X 1.50 | 3/8 | 22 | 12.00 | 12.50 | 19.50 | 12 | 315 bar 4568 psi |
L |
| AME12LMG08SV.1 | M 18.0 | X 1.50 | 1/2 | 27 | 14.00 | 13.00 | 20.00 | 12 | 315 bar 4568 psi |
L |
| AME12LMG12SV.1 | M 18.0 | X 1.50 | 3/4 | 32 | 16.00 | 14.00 | 21.00 | 12 | 315 bar 4568 psi |
L |
| AME12SMG04SV.1 | M 20.0 | X 1.50 | 1/4 | 22 | 12.00 | 16.50 | 24.00 | 12 | 630 bar 9137 psi |
S |
| AME12SMG06SV.1 | M 20.0 | X 1.50 | 3/8 | 22 | 12.00 | 17.00 | 24.50 | 12 | 630 bar 9137 psi |
S |
| AME12SMG08SV.1 | M 20.0 | X 1.50 | 1/2 | 27 | 14.00 | 17.50 | 25.00 | 12 | 630 bar 9137 psi |
S |
| AME14SMG06SV.1 | M 22.0 | X 1.50 | 3/8 | 24 | 12.00 | 18.50 | 26.50 | 14 | 630 bar 9137 psi |
S |
| AME14SMG08SV.1 | M 22.0 | X 1.50 | 1/2 | 27 | 14.00 | 19.00 | 27.00 | 14 | 630 bar 9137 psi |
S |
| AME15LMG06SV.1 | M 22.0 | X 1.50 | 3/8 | 24 | 12.00 | 13.50 | 20.50 | 15 | 315 bar 4568 psi |
L |
| AME15LMG08SV.1 | M 22.0 | X 1.50 | 1/2 | 27 | 14.00 | 14.00 | 21.00 | 15 | 315 bar 4568 psi |
L |
| AME15LMG12SV.1 | M 22.0 | X 1.50 | 3/4 | 32 | 16.00 | 15.00 | 22.00 | 15 | 315 bar 4568 psi |
L |
| AME16SMG06SV.1 | M 24.0 | X 1.50 | 3/8 | 27 | 12.00 | 18.00 | 26.50 | 16 | 400 bar 5801 psi |
S |
| AME16SMG08SV.1 | M 24.0 | X 1.50 | 1/2 | 27 | 14.00 | 18.50 | 27.00 | 16 | 400 bar 5801 psi |
S |
| AME16SMG12SV.1 | M 24.0 | X 1.50 | 3/4 | 32 | 16.00 | 20.50 | 29.00 | 16 | 400 bar 5801 psi |
S |
| AME18LMG06SV.1 | M 26.0 | X 1.50 | 3/8 | 27 | 12.00 | 14.00 | 21.50 | 18 | 315 bar 4568 psi |
L |
| AME18LMG08SV.1 | M 26.0 | X 1.50 | 1/2 | 27 | 14.00 | 14.50 | 22.00 | 18 | 315 bar 4568 psi |
L |
| AME18LMG12SV.1 | M 26.0 | X 1.50 | 3/4 | 32 | 16.00 | 14.50 | 22.00 | 18 | 315 bar 4568 psi |
L |
| AME20SMG08SV.1 | M 30.0 | X 2.00 | 1/2 | 32 | 14.00 | 20.50 | 31.00 | 20 | 400 bar 5801 psi |
S |
| AME20SMG12SV.1 | M 30.0 | X 2.00 | 3/4 | 32 | 16.00 | 20.50 | 31.00 | 20 | 400 bar 5801 psi |
S |
| AME20SMG16SV.1 | M 30.0 | X 2.00 | 1 | 41 | 18.00 | 22.50 | 33.00 | 20 | 400 bar 5801 psi |
S |
| AME22LMG08SV.1 | M 30.0 | X 2.00 | 1/2 | 32 | 14.00 | 16.50 | 24.00 | 22 | 160 bar 2320 psi |
L |
| AME22LMG12SV.1 | M 30.0 | X 2.00 | 3/4 | 32 | 16.00 | 16.50 | 24.00 | 22 | 160 bar 2320 psi |
L |
| AME22LMG16SV.1 | M 30.0 | X 2.00 | 1 | 41 | 18.00 | 17.50 | 25.00 | 22 | 160 bar 2320 psi |
L |
| AME25SMG12SV.1 | M 36.0 | X 2.00 | 3/4 | 41 | 16.00 | 23.00 | 35.00 | 25 | 400 bar 5801 psi |
S |
| AME25SMG16SV.1 | M 36.0 | X 2.00 | 1 | 41 | 18.00 | 23.00 | 35.00 | 25 | 400 bar 5801 psi |
S |
| AME28LMG12SV.1 | M 36.0 | X 2.00 | 3/4 | 41 | 16.00 | 17.50 | 25.00 | 28 | 160 bar 2320 psi |
L |
| AME28LMG16SV.1 | M 36.0 | X 2.00 | 1 | 41 | 18.00 | 17.50 | 25.00 | 28 | 160 bar 2320 psi |
L |
| AME30SMG16SV.1 | M 42.0 | X 2.00 | 1 | 46 | 18.00 | 23.50 | 37.00 | 30 | 400 bar 5801 psi |
S |
| AME30SMG20SV.1 | M 42.0 | X 2.00 | 1 1/4 | 50 | 20.00 | 23.50 | 37.00 | 30 | 400 bar 5801 psi |
S |
| AME35LMG16SV.1 | M 45.0 | X 2.00 | 1 | 46 | 18.00 | 17.50 | 28.00 | 35 | 160 bar 2320 psi |
L |
| AME35LMG20SV.1 | M 45.0 | X 2.00 | 1 1/4 | 50 | 20.00 | 17.50 | 28.00 | 35 | 160 bar 2320 psi |
L |
| AME38SMG20SV.1 | M 52.0 | X 2.00 | 1 1/4 | 55 | 20.00 | 26.00 | 42.00 | 38 | 315 bar 4568 psi |
S |
| AME38SMG24SV.1 | M 52.0 | X 2.00 | 1 1/2 | 55 | 22.00 | 26.00 | 42.00 | 38 | 315 bar 4568 psi |
S |
| AME42LMG20SV.1 | M 52.0 | X 2.00 | 1 1/4 | 55 | 20.00 | 19.00 | 30.00 | 42 | 160 bar 2320 psi |
L |
| AME42LMG24SV.1 | M 52.0 | X 2.00 | 1 1/2 | 55 | 22.00 | 19.00 | 30.00 | 42 | 160 bar 2320 psi |
L |
