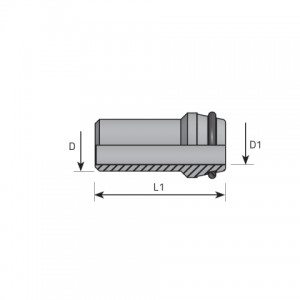

| Koд | L1 mm | D mm | D1 mm | S mm | T1 mm | Давление | Серия |
|---|---|---|---|---|---|---|---|
| TL15W | 34.00 | 15.00 | 10.00 | 2.50 | 15 | 315 bar 4568 psi |
L |
| TL18W | 35.50 | 18.00 | 13.00 | 2.50 | 18 | 315 bar 4568 psi |
L |
| TL22W | 38.50 | 22.00 | 17.00 | 2.50 | 22 | 160 bar 2320 psi |
L |
| TL28W | 41.50 | 28.00 | 23.00 | 2.50 | 28 | 160 bar 2320 psi |
L |
| TL35W | 47.50 | 35.00 | 29.00 | 3.00 | 35 | 160 bar 2320 psi |
L |
| TL42W | 47.50 | 42.00 | 36.00 | 3.00 | 42 | 160 bar 2320 psi |
L |
| TLS06W | 31.00 | 6.00 | 2.50 | 1.75 | 6 | 630 bar 9137 psi |
L / S |
| TLS08W | 31.00 | 8.00 | 4.00 | 2.00 | 8 | 630 bar 9137 psi |
L / S |
| TLS10W | 32.50 | 10.00 | 7.00 | 1.50 | 10 | 315 bar 4568 psi |
L / S |
| TLS10WX2 | 32.50 | 10.00 | 6.00 | 2.00 | 10 | 400 bar 5801 psi |
L / S |
| TLS12W | 32.50 | 12.00 | 9.00 | 1.50 | 12 | 315 bar 4568 psi |
L / S |
| TLS12WX2 | 32.50 | 12.00 | 8.00 | 2.00 | 12 | 400 bar 5801 psi |
L / S |
| TLS12WX2.5 | 32.50 | 12.00 | 7.00 | 2.50 | 12 | 630 bar 9137 psi |
L / S |
| TS14W | 38.50 | 14.00 | 8.00 | 3.00 | 14 | 400 bar 5801 psi |
S |
| TS16W | 39.00 | 16.00 | 12.00 | 2.00 | 16 | 250 bar 3626 psi |
S |
| TS16WX2.5 | 39.00 | 16.00 | 11.00 | 2.50 | 16 | 315 bar 4568 psi |
S |
| TS16WX3 | 39.00 | 16.00 | 10.00 | 3.00 | 16 | 400 bar 5801 psi |
S |
| TS20W | 45.00 | 20.00 | 15.00 | 2.50 | 20 | 250 bar 3626 psi |
S |
| TS20WX3 | 45.00 | 20.00 | 14.00 | 3.00 | 20 | 315 bar 4568 psi |
S |
| TS20WX4 | 45.00 | 20.00 | 12.00 | 4.00 | 20 | 400 bar 5801 psi |
S |
| TS25W | 49.50 | 25.00 | 19.00 | 3.00 | 25 | 250 bar 3626 psi |
S |
| TS25WX4 | 49.50 | 25.00 | 17.00 | 4.00 | 25 | 315 bar 4568 psi |
S |
| TS25WX5 | 49.50 | 25.00 | 15.00 | 5.00 | 25 | 400 bar 5801 psi |
S |
| TS30W | 52.00 | 30.00 | 24.00 | 3.00 | 30 | 160 bar 2320 psi |
S |
| TS30WX4 | 52.00 | 30.00 | 22.00 | 4.00 | 30 | 250 bar 3626 psi |
S |
| TS30WX5 | 52.00 | 30.00 | 20.00 | 5.00 | 30 | 315 bar 4568 psi |
S |
| TS30WX6 | 52.00 | 30.00 | 18.00 | 6.00 | 30 | 315 bar 4568 psi |
S |
| TS38W | 56.50 | 38.00 | 32.00 | 3.00 | 38 | 160 bar 2320 psi |
S |
| TS38WX5 | 56.50 | 38.00 | 28.00 | 5.00 | 38 | 250 bar 3626 psi |
S |
| TS38WX6 | 56.50 | 38.00 | 26.00 | 6.00 | 38 | 315 bar 4568 psi |
S |
| TS38WX8 | 56.50 | 38.00 | 22.00 | 8.00 | 38 | 315 bar 4568 psi |
S |
