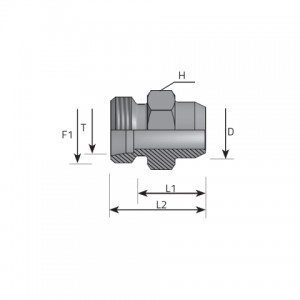

| Koд | F1 mm | F1 Pitch mm | H mm | L1 mm | L2 mm | D mm | T1 mm | Давление | Серия |
|---|---|---|---|---|---|---|---|---|---|
| AME06LW.1 | M 12.0 | X 1.50 | 12 | 14.00 | 21.00 | 10.00 | 6 | 315 bar 4568 psi |
L |
| AME06SW.1 | M 14.0 | X 1.50 | 14 | 19.00 | 26.00 | 11.00 | 6 | 630 bar 9137 psi |
S |
| AME08LW.1 | M 14.0 | X 1.50 | 14 | 16.00 | 23.00 | 12.00 | 8 | 315 bar 4568 psi |
L |
| AME08SW.1 | M 16.0 | X 1.50 | 17 | 21.00 | 28.00 | 13.00 | 8 | 630 bar 9137 psi |
S |
| AME10LW.1 | M 16.0 | X 1.50 | 17 | 18.00 | 25.00 | 14.00 | 10 | 315 bar 4568 psi |
L |
| AME10SW.1 | M 18.0 | X 1.50 | 19 | 22.50 | 30.00 | 15.00 | 10 | 630 bar 9137 psi |
S |
| AME12LW.1 | M 18.0 | X 1.50 | 19 | 18.00 | 25.00 | 16.00 | 12 | 315 bar 4568 psi |
L |
| AME12SW.1 | M 20.0 | X 1.50 | 22 | 24.50 | 32.00 | 17.00 | 12 | 630 bar 9137 psi |
S |
| AME14SW.1 | M 22.0 | X 1.50 | 24 | 27.00 | 35.00 | 19.00 | 14 | 630 bar 9137 psi |
S |
| AME15LW.1 | M 22.0 | X 1.50 | 22 | 22.00 | 29.00 | 19.00 | 15 | 315 bar 4568 psi |
L |
| AME16SW.1 | M 24.0 | X 1.50 | 27 | 26.50 | 35.00 | 21.00 | 16 | 400 bar 5801 psi |
S |
| AME18LW.1 | M 26.0 | X 1.50 | 27 | 23.50 | 31.00 | 22.00 | 18 | 315 bar 4568 psi |
L |
| AME20SW.1 | M 30.0 | X 2.00 | 32 | 29.50 | 40.00 | 26.00 | 20 | 400 bar 5801 psi |
S |
| AME22LW.1 | M 30.0 | X 2.00 | 32 | 28.50 | 36.00 | 27.00 | 22 | 160 bar 2320 psi |
L |
| AME25SW.1 | M 36.0 | X 2.00 | 41 | 32.00 | 44.00 | 31.00 | 25 | 400 bar 5801 psi |
S |
| AME28LW.1 | M 36.0 | X 2.00 | 41 | 30.50 | 38.00 | 32.00 | 28 | 160 bar 2320 psi |
L |
| AME30SW.1 | M 42.0 | X 2.00 | 46 | 35.50 | 49.00 | 36.00 | 30 | 400 bar 5801 psi |
S |
| AME35LW.1 | M 45.0 | X 2.00 | 46 | 32.50 | 43.00 | 40.00 | 35 | 160 bar 2320 psi |
L |
| AME38SW.1 | M 52.0 | X 2.00 | 55 | 38.00 | 54.00 | 44.00 | 38 | 315 bar 4568 psi |
S |
| AME42LW.1 | M 52.0 | X 2.00 | 55 | 35.00 | 46.00 | 46.00 | 42 | 160 bar 2320 psi |
L |
