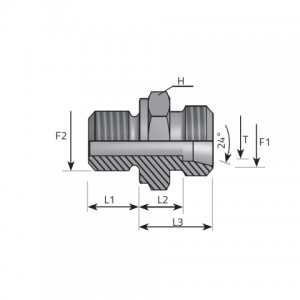

| Koд | F1 mm | F1 Pitch mm | F2 mm | F2 Pitch mm | H mm | L1 mm | L2 mm | L3 mm | T mm | Давление | Серия |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AME06LMM10.1 | M 12.0 | X 1.50 | M 10.0 | X 1.00 | 14 | 8.00 | 8.50 | 15.50 | 6 | 315 bar 4568 psi |
L |
| AME06SMM12.1 | M 14.0 | X 1.50 | M 12.0 | X 1.50 | 17 | 12.00 | 13.00 | 20.00 | 6 | 630 bar 9137 psi |
S |
| AME08LMM12.1 | M 14.0 | X 1.50 | M 12.0 | X 1.50 | 17 | 12.00 | 10.00 | 17.00 | 8 | 315 bar 4568 psi |
L |
| AME08LMM14.1 | M 14.0 | X 1.50 | M 14.0 | X 1.50 | 19 | 12.00 | 10.00 | 17.00 | 8 | 315 bar 4568 psi |
L |
| AME08LMM16.1 | M 14.0 | X 1.50 | M 16.0 | X 1.50 | 22 | 12.00 | 11.50 | 18.50 | 8 | 315 bar 4568 psi |
L |
| AME08LMM18.1 | M 14.0 | X 1.50 | M 18.0 | X 1.50 | 24 | 12.00 | 11.50 | 18.50 | 8 | 315 bar 4568 psi |
L |
| AME08SMM14.1 | M 16.0 | X 1.50 | M 14.0 | X 1.50 | 19 | 12.00 | 15.00 | 22.00 | 8 | 630 bar 9137 psi |
S |
| AME10LMM14.1 | M 16.0 | X 1.50 | M 14.0 | X 1.50 | 19 | 12.00 | 11.00 | 18.00 | 10 | 315 bar 4568 psi |
L |
| AME10LMM16.1 | M 16.0 | X 1.50 | M 16.0 | X 1.50 | 22 | 12.00 | 12.00 | 19.00 | 10 | 315 bar 4568 psi |
L |
| AME10LMM18.1 | M 16.0 | X 1.50 | M 18.0 | X 1.50 | 24 | 12.00 | 12.50 | 19.50 | 10 | 315 bar 4568 psi |
L |
| AME10LMM22.1 | M 16.0 | X 1.50 | M 22.0 | X 1.50 | 27 | 14.00 | 13.00 | 20.00 | 10 | 315 bar 4568 psi |
L |
| AME10SMM16.1 | M 18.0 | X 1.50 | M 16.0 | X 1.50 | 22 | 12.00 | 15.00 | 22.50 | 10 | 630 bar 9137 psi |
S |
| AME10SMM18.1 | M 18.0 | X 1.50 | M 18.0 | X 1.50 | 24 | 12.00 | 15.50 | 23.00 | 10 | 630 bar 9137 psi |
S |
| AME12LMM14.1 | M 18.0 | X 1.50 | M 14.0 | X 1.50 | 19 | 12.00 | 11.00 | 18.00 | 12 | 315 bar 4568 psi |
L |
| AME12LMM16.1 | M 18.0 | X 1.50 | M 16.0 | X 1.50 | 22 | 12.00 | 12.50 | 19.50 | 12 | 315 bar 4568 psi |
L |
| AME12LMM18.1 | M 18.0 | X 1.50 | M 18.0 | X 1.50 | 24 | 12.00 | 12.50 | 19.50 | 12 | 315 bar 4568 psi |
L |
| AME12LMM22.1 | M 18.0 | X 1.50 | M 22.0 | X 1.50 | 27 | 14.00 | 14.00 | 21.00 | 12 | 315 bar 4568 psi |
L |
| AME12SMM18.1 | M 20.0 | X 1.50 | M 18.0 | X 1.50 | 24 | 12.00 | 17.00 | 24.50 | 12 | 630 bar 9137 psi |
S |
| AME12SMM22.1 | M 20.0 | X 1.50 | M 22.0 | X 1.50 | 27 | 14.00 | 17.50 | 25.00 | 12 | 630 bar 9137 psi |
S |
| AME14SMM20.1 | M 22.0 | X 1.50 | M 20.0 | X 1.50 | 27 | 14.00 | 19.00 | 27.00 | 14 | 630 bar 9137 psi |
S |
| AME15LMM16.1 | M 22.0 | X 1.50 | M 16.0 | X 1.50 | 24 | 12.00 | 13.50 | 20.50 | 15 | 315 bar 4568 psi |
L |
| AME15LMM18.1 | M 22.0 | X 1.50 | M 18.0 | X 1.50 | 24 | 14.00 | 14.00 | 21.00 | 15 | 315 bar 4568 psi |
L |
| AME15LMM22.1 | M 22.0 | X 1.50 | M 22.0 | X 1.50 | 27 | 14.00 | 15.00 | 22.00 | 15 | 315 bar 4568 psi |
L |
| AME16SMM18.1 | M 24.0 | X 1.50 | M 18.0 | X 1.50 | 27 | 12.00 | 18.00 | 26.50 | 16 | 400 bar 5801 psi |
S |
| AME16SMM22.1 | M 24.0 | X 1.50 | M 22.0 | X 1.50 | 27 | 14.00 | 18.50 | 27.00 | 16 | 400 bar 5801 psi |
S |
| AME18LMM18.1 | M 26.0 | X 1.50 | M 18.0 | X 1.50 | 27 | 12.00 | 14.00 | 21.50 | 18 | 315 bar 4568 psi |
L |
| AME18LMM22.1 | M 26.0 | X 1.50 | M 22.0 | X 1.50 | 27 | 14.00 | 14.50 | 22.00 | 18 | 315 bar 4568 psi |
L |
| AME18LMM26.1 | M 26.0 | X 1.50 | M 26.0 | X 1.50 | 32 | 16.00 | 16.50 | 24.00 | 18 | 315 bar 4568 psi |
L |
| AME20SMM27.1 | M 30.0 | X 2.00 | M 27.0 | X 2.00 | 32 | 16.00 | 20.50 | 31.00 | 20 | 400 bar 5801 psi |
S |
| AME22LMM22.1 | M 30.0 | X 2.00 | M 22.0 | X 1.50 | 32 | 14.00 | 16.50 | 24.00 | 22 | 160 bar 2320 psi |
L |
| AME22LMM26.1 | M 30.0 | X 2.00 | M 26.0 | X 1.50 | 32 | 16.00 | 16.50 | 24.00 | 22 | 160 bar 2320 psi |
L |
| AME25SMM27.1 | M 36.0 | X 2.00 | M 27.0 | X 2.00 | 41 | 16.00 | 23.00 | 35.00 | 25 | 400 bar 5801 psi |
S |
| AME25SMM33.1 | M 36.0 | X 2.00 | M 33.0 | X 2.00 | 41 | 18.00 | 23.00 | 35.00 | 25 | 400 bar 5801 psi |
S |
| AME28LMM33.1 | M 36.0 | X 2.00 | M 33.0 | X 2.00 | 41 | 18.00 | 17.50 | 25.00 | 28 | 160 bar 2320 psi |
L |
| AME30SMM42.1 | M 42.0 | X 2.00 | M 42.0 | X 2.00 | 50 | 20.00 | 23.50 | 37.00 | 30 | 400 bar 5801 psi |
S |
| AME35LMM42.1 | M 45.0 | X 2.00 | M 42.0 | X 2.00 | 50 | 20.00 | 17.50 | 27.50 | 35 | 160 bar 2320 psi |
L |
| AME38SMM48.1 | M 52.0 | X 2.00 | M 48.0 | X 2.00 | 55 | 22.00 | 26.00 | 42.00 | 38 | 315 bar 4568 psi |
S |
| AME42LMM48.1 | M 52.0 | X 2.00 | M 48.0 | X 2.00 | 55 | 22.00 | 19.00 | 30.00 | 42 | 160 bar 2320 psi |
L |
