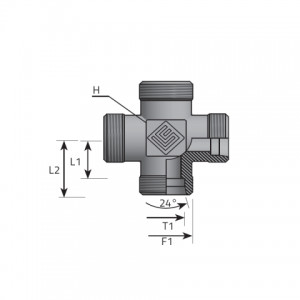

| Koд | F1 mm | F1 Pitch mm | H mm | L1 mm | L2 mm | T1 mm | Давление | Серия |
|---|---|---|---|---|---|---|---|---|
| CME06L.1 | M 12.0 | X 1.50 | 12 | 12.00 | 19.00 | 6 | 315 bar 4568 psi |
L |
| CME06S.1 | M 14.0 | X 1.50 | 12 | 16.00 | 23.00 | 6 | 630 bar 9137 psi |
S |
| CME08L.1 | M 14.0 | X 1.50 | 12 | 14.00 | 21.00 | 8 | 315 bar 4568 psi |
L |
| CME08S.1 | M 16.0 | X 1.50 | 14 | 17.00 | 24.00 | 8 | 630 bar 9137 psi |
S |
| CME10L.1 | M 16.0 | X 1.50 | 14 | 15.00 | 22.00 | 10 | 315 bar 4568 psi |
L |
| CME10S.1 | M 18.0 | X 1.50 | 17 | 17.50 | 25.00 | 10 | 630 bar 9137 psi |
S |
| CME12L.1 | M 18.0 | X 1.50 | 17 | 17.00 | 24.00 | 12 | 315 bar 4568 psi |
L |
| CME12S.1 | M 20.0 | X 1.50 | 17 | 21.50 | 29.00 | 12 | 630 bar 9137 psi |
S |
| CME14S.1 | M 22.0 | X 1.50 | 19 | 22.00 | 30.00 | 14 | 630 bar 9137 psi |
S |
| CME15L.1 | M 22.0 | X 1.50 | 19 | 21.00 | 28.00 | 15 | 315 bar 4568 psi |
L |
| CME16S.1 | M 24.0 | X 1.50 | 24 | 24.50 | 33.00 | 16 | 400 bar 5801 psi |
S |
| CME18L.1 | M 26.0 | X 1.50 | 24 | 23.50 | 31.00 | 18 | 315 bar 4568 psi |
L |
| CME20S.1 | M 30.0 | X 2.00 | 27 | 26.50 | 37.00 | 20 | 400 bar 5801 psi |
S |
| CME22L.1 | M 30.0 | X 2.00 | 27 | 27.50 | 35.00 | 22 | 160 bar 2320 psi |
L |
| CME25S.1 | M 36.0 | X 2.00 | 36 | 30.00 | 42.00 | 25 | 400 bar 5801 psi |
S |
| CME28L.1 | M 36.0 | X 2.00 | 36 | 30.50 | 38.00 | 28 | 160 bar 2320 psi |
L |
| CME30S.1 | M 42.0 | X 2.00 | 41 | 35.50 | 49.00 | 30 | 400 bar 5801 psi |
S |
| CME35L.1 | M 45.0 | X 2.00 | 41 | 34.50 | 45.00 | 35 | 160 bar 2320 psi |
L |
| CME38S.1 | M 52.0 | X 2.00 | 50 | 41.00 | 57.00 | 38 | 315 bar 4568 psi |
S |
| CME42L.1 | M 52.0 | X 2.00 | 50 | 40.00 | 51.00 | 42 | 160 bar 2320 psi |
L |
