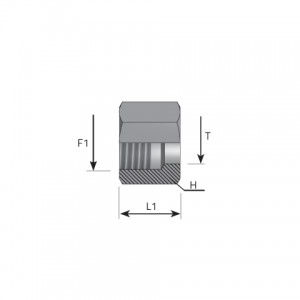

| Koд | F1 mm | F1 Pitch mm | H mm | L1 mm | T mm | Давление | Серия |
|---|---|---|---|---|---|---|---|
| DL06 | M 12.0 | X 1.50 | 14 | 14.50 | 6 | 315 bar 4568 psi |
L |
| DL08 | M 14.0 | X 1.50 | 17 | 14.50 | 8 | 315 bar 4568 psi |
L |
| DL10 | M 16.0 | X 1.50 | 19 | 15.50 | 10 | 315 bar 4568 psi |
L |
| DL12 | M 18.0 | X 1.50 | 22 | 15.50 | 12 | 315 bar 4568 psi |
L |
| DL15 | M 22.0 | X 1.50 | 27 | 17.00 | 15 | 315 bar 4568 psi |
L |
| DL18 | M 26.0 | X 1.50 | 32 | 18.00 | 18 | 315 bar 4568 psi |
L |
| DL22 | M 30.0 | X 2.00 | 36 | 20.00 | 22 | 160 bar 2320 psi |
L |
| DL28 | M 36.0 | X 2.00 | 41 | 21.00 | 28 | 160 bar 2320 psi |
L |
| DL35 | M 45.0 | X 2.00 | 50 | 24.00 | 35 | 160 bar 2320 psi |
L |
| DL42 | M 52.0 | X 2.00 | 60 | 24.00 | 42 | 160 bar 2320 psi |
L |
| DS06 | M 14.0 | X 1.50 | 17 | 16.50 | 6 | 630 bar 9137 psi |
S |
| DS08 | M 16.0 | X 1.50 | 19 | 16.50 | 8 | 630 bar 9137 psi |
S |
| DS10 | M 18.0 | X 1.50 | 22 | 17.50 | 10 | 630 bar 9137 psi |
S |
| DS12 | M 20.0 | X 1.50 | 24 | 17.50 | 12 | 630 bar 9137 psi |
S |
| DS14 | M 22.0 | X 1.50 | 27 | 20.50 | 14 | 630 bar 9137 psi |
S |
| DS16 | M 24.0 | X 1.50 | 30 | 20.50 | 16 | 400 bar 5801 psi |
S |
| DS20 | M 30.0 | X 2.00 | 36 | 24.00 | 20 | 400 bar 5801 psi |
S |
| DS25 | M 36.0 | X 2.00 | 46 | 27.00 | 25 | 400 bar 5801 psi |
S |
| DS30 | M 42.0 | X 2.00 | 50 | 29.00 | 30 | 400 bar 5801 psi |
S |
| DS38 | M 52.0 | X 2.00 | 60 | 32.50 | 38 | 315 bar 4568 psi |
S |
