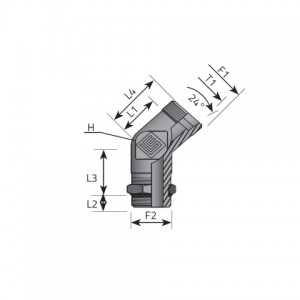

| Koд | F1 mm | F1 Pitch mm | F2 inch | H mm | L1 mm | L2 mm | L3 mm | L4 mm | T1 mm | Давление | Серия |
|---|---|---|---|---|---|---|---|---|---|---|---|
| QME06LMOU04.1 | M 12.0 | X 1.50 | 7/16 | 14 | 9.00 | 9.50 | 20.00 | 16.00 | 6 | 315 bar 4568 psi |
L |
| QME06SMOU04.1 | M 14.0 | X 1.50 | 7/16 | 14 | 9.00 | 11.00 | 21.00 | 16.00 | 6 | 400 bar 5801 psi |
S |
| QME08LMOU04.1 | M 14.0 | X 1.50 | 7/16 | 14 | 9.00 | 12.00 | 20.00 | 16.00 | 8 | 315 bar 4568 psi |
L |
| QME08SMOU06.1 | M 16.0 | X 1.50 | 9/16 | 14 | 10.00 | 13.00 | 23.00 | 17.00 | 8 | 400 bar 5801 psi |
S |
| QME10LMOU06.1 | M 16.0 | X 1.50 | 9/16 | 14 | 10.00 | 12.00 | 24.00 | 17.00 | 10 | 315 bar 4568 psi |
L |
| QME10SMOU06.1 | M 18.0 | X 1.50 | 9/16 | 19 | 10.00 | 13.00 | 23.00 | 17.50 | 10 | 400 bar 5801 psi |
S |
| QME12LMOU06.1 | M 18.0 | X 1.50 | 9/16 | 19 | 10.00 | 14.00 | 26.00 | 17.00 | 12 | 315 bar 4568 psi |
L |
| QME12LMOU08.1 | M 18.0 | X 1.50 | 3/4 | 19 | 11.00 | 14.00 | 26.00 | 18.00 | 12 | 315 bar 4568 psi |
L |
| QME12SMOU08.1 | M 20.0 | X 1.50 | 3/4 | 19 | 11.00 | 17.00 | 25.00 | 18.50 | 12 | 400 bar 5801 psi |
S |
| QME14SMOU10.1 | M 22.0 | X 1.50 | 7/8 | 22 | 12.70 | 16.00 | 26.30 | 20.70 | 14 | 400 bar 5801 psi |
S |
| QME15LMOU08.1 | M 22.0 | X 1.50 | 3/4 | 22 | 11.00 | 17.00 | 26.00 | 18.00 | 15 | 315 bar 4568 psi |
L |
| QME15LMOU10.1 | M 22.0 | X 1.50 | 7/8 | 22 | 12.70 | 17.00 | 26.30 | 19.70 | 15 | 315 bar 4568 psi |
L |
| QME16SMOU10.1 | M 24.0 | X 1.50 | 7/8 | 27 | 12.70 | 16.00 | 32.30 | 21.20 | 16 | 400 bar 5801 psi |
S |
| QME18LMOU10.1 | M 26.0 | X 1.50 | 7/8 | 27 | 12.70 | 17.00 | 32.30 | 20.20 | 18 | 315 bar 4568 psi |
L |
| QME18LMOU12.1 | M 26.0 | X 1.50 | 1 1/16 | 27 | 15.00 | 18.00 | 32.50 | 22.50 | 18 | 315 bar 4568 psi |
L |
| QME20SMOU12.1 | M 30.0 | X 2.00 | 1 1/16 | 27 | 15.00 | 19.00 | 35.00 | 25.50 | 20 | 400 bar 5801 psi |
S |
| QME22LMOU12.1 | M 30.0 | X 2.00 | 1 1/16 | 27 | 15.00 | 19.50 | 35.00 | 22.50 | 22 | 160 bar 2320 psi |
L |
| QME25SMOU16.1 | M 36.0 | X 2.00 | 1 5/16 | 33 | 15.00 | 22.00 | 37.00 | 27.00 | 25 | 400 bar 5801 psi |
S |
| QME28LMOU16.1 | M 36.0 | X 2.00 | 1 5/16 | 33 | 15.00 | 23.00 | 37.00 | 22.50 | 28 | 160 bar 2320 psi |
L |
| QME30SMOU20.1 | M 42.0 | X 2.00 | 1 5/8 | 41 | 15.00 | 24.00 | 39.00 | 28.50 | 30 | 250 bar 3626 psi |
S |
| QME35LMOU20.1 | M 45.0 | X 2.00 | 1 5/8 | 41 | 15.00 | 27.00 | 39.00 | 25.50 | 35 | 160 bar 2320 psi |
L |
| QME38SMOU24.1 | M 52.0 | X 2.00 | 1 7/8 | 48 | 15.00 | 24.00 | 39.00 | 31.00 | 38 | 250 bar 3626 psi |
S |
| QME42LMOU24.1 | M 52.0 | X 2.00 | 1 7/8 | 48 | 15.00 | 26.00 | 39.00 | 26.00 | 42 | 160 bar 2320 psi |
L |
