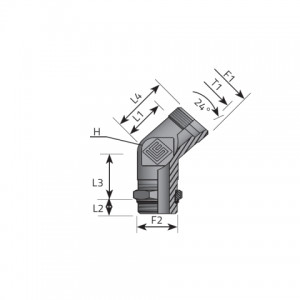

| Koд | F1 mm | F1 Pitch mm | F2 inch | H mm | L1 mm | L2 mm | L3 mm | L4 mm | T1 mm | Давление | Серия |
|---|---|---|---|---|---|---|---|---|---|---|---|
| QME06LMOG02.1 | M 12.0 | X 1.50 | 1/8 | 14 | 6.30 | 9.50 | 21.70 | 13.30 | 6 | 315 bar 4568 psi |
L |
| QME06SMOG04.1 | M 14.0 | X 1.50 | 1/4 | 14 | 9.50 | 11.00 | 18.50 | 16.50 | 6 | 315 bar 4568 psi |
S |
| QME08LMOG04.1 | M 14.0 | X 1.50 | 1/4 | 14 | 9.50 | 12.00 | 19.50 | 16.50 | 8 | 315 bar 4568 psi |
L |
| QME08SMOG04.1 | M 16.0 | X 1.50 | 1/4 | 14 | 9.50 | 13.00 | 22.50 | 16.50 | 8 | 315 bar 4568 psi |
S |
| QME10LMOG04.1 | M 16.0 | X 1.50 | 1/4 | 14 | 9.50 | 12.00 | 24.50 | 16.50 | 10 | 315 bar 4568 psi |
L |
| QME10SMOG06.1 | M 18.0 | X 1.50 | 3/8 | 19 | 9.50 | 13.00 | 24.50 | 17.00 | 10 | 250 bar 3626 psi |
S |
| QME12LMOG06.1 | M 18.0 | X 1.50 | 3/8 | 19 | 9.50 | 14.00 | 27.50 | 16.50 | 12 | 250 bar 3626 psi |
L |
| QME12SMOG06.1 | M 20.0 | X 1.50 | 3/8 | 19 | 9.50 | 17.00 | 24.50 | 17.00 | 12 | 250 bar 3626 psi |
S |
| QME14SMOG08.1 | M 22.0 | X 1.50 | 1/2 | 22 | 13.00 | 16.00 | 25.50 | 21.00 | 14 | 250 bar 3626 psi |
S |
| QME15LMOG08.1 | M 22.0 | X 1.50 | 1/2 | 22 | 13.00 | 17.00 | 26.00 | 20.00 | 15 | 250 bar 3626 psi |
L |
| QME16SMOG08.1 | M 24.0 | X 1.50 | 1/2 | 27 | 13.00 | 16.00 | 31.00 | 21.50 | 16 | 250 bar 3626 psi |
S |
| QME18LMOG08.1 | M 26.0 | X 1.50 | 1/2 | 27 | 13.00 | 17.00 | 32.00 | 20.50 | 18 | 250 bar 3626 psi |
L |
| QME20SMOG12.1 | M 30.0 | X 2.00 | 3/4 | 27 | 13.00 | 19.00 | 33.00 | 23.50 | 20 | 250 bar 3626 psi |
S |
| QME22LMOG12.1 | M 30.0 | X 2.00 | 3/4 | 27 | 13.00 | 19.50 | 37.50 | 20.50 | 22 | 160 bar 2320 psi |
L |
| QME25SMOG16.1 | M 36.0 | X 2.00 | 1 | 33 | 16.00 | 22.00 | 35.00 | 28.00 | 25 | 250 bar 3626 psi |
S |
| QME28LMOG16.1 | M 36.0 | X 2.00 | 1 | 33 | 16.00 | 23.00 | 36.00 | 23.50 | 28 | 160 bar 2320 psi |
L |
| QME30SMOG20.1 | M 42.0 | X 2.00 | 1 1/4 | 41 | 16.00 | 24.00 | 37.00 | 29.50 | 30 | 160 bar 2320 psi |
S |
| QME35LMOG20.1 | M 45.0 | X 2.00 | 1 1/4 | 41 | 16.00 | 27.00 | 38.00 | 26.50 | 35 | 160 bar 2320 psi |
L |
| QME38SMOG24.1 | M 52.0 | X 2.00 | 1 1/2 | 48 | 16.00 | 24.00 | 37.00 | 32.00 | 38 | 160 bar 2320 psi |
S |
| QME42LMOG24.1 | M 52.0 | X 2.00 | 1 1/2 | 48 | 16.00 | 26.00 | 38.00 | 27.00 | 42 | 160 bar 2320 psi |
L |
