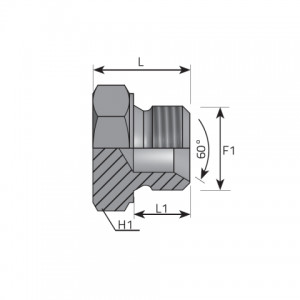

| Koд | F1 inch | H1 mm | L mm | L1 mm | Давление |
|---|---|---|---|---|---|
| ATMG02 | 1/8 | 14 | 15.50 | 9.50 | 350 bar 5075 psi |
| ATMG04 | 1/4 | 19 | 18.00 | 11.00 | 350 bar 5075 psi |
| ATMG06 | 3/8 | 22 | 20.50 | 12.50 | 350 bar 5075 psi |
| ATMG08 | 1/2 | 27 | 24.00 | 14.00 | 315 bar 4568 psi |
| ATMG10 | 5/8 | 30 | 27.00 | 16.00 | 315 bar 4568 psi |
| ATMG12 | 3/4 | 32 | 26.00 | 16.00 | 250 bar 3625 psi |
| ATMG16 | 1 | 41 | 31.00 | 18.00 | 200 bar 2900 psi |
| ATMG20 | 1 1/4 | 50 | 34.00 | 20.00 | 160 bar 2320 psi |
| ATMG24 | 1 1/2 | 55 | 36.00 | 22.00 | 125 bar 1813 psi |
| ATMG32 | 2 | 70 | 41.00 | 25.00 | 80 bar 1160 psi |
