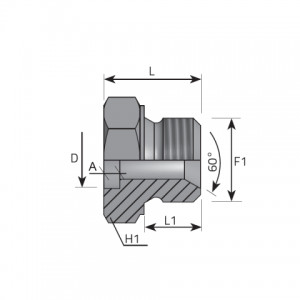

| Koд | F1 inch | H1 mm | L mm | L1 mm | A mm | D mm | Давление |
|---|---|---|---|---|---|---|---|
| AMNS04T08 | 1/4 | 19 | 18.00 | 11.00 | 4.00 | 8.00 | 350 bar 5075 psi |
| AMNS04T10 | 1/4 | 19 | 18.00 | 11.00 | 4.00 | 10.00 | 350 bar 5075 psi |
| AMNS04T12 | 1/4 | 19 | 18.00 | 11.00 | 4.00 | 12.00 | 350 bar 5075 psi |
| AMNS06T10 | 3/8 | 22 | 20.50 | 12.50 | 6.00 | 10.00 | 350 bar 5075 psi |
| AMNS06T12 | 3/8 | 22 | 20.50 | 12.50 | 5.50 | 12.00 | 350 bar 5075 psi |
| AMNS06T14 | 3/8 | 22 | 20.50 | 12.50 | 5.50 | 14.00 | 350 bar 5075 psi |
| AMNS08T14 | 1/2 | 27 | 24.00 | 14.00 | 6.00 | 14.00 | 315 bar 4568 psi |
| AMNS08T15 | 1/2 | 27 | 24.00 | 14.00 | 6.00 | 15.00 | 315 bar 4568 psi |
| AMNS08T15FP | 1/2 | 27 | 24.00 | 14.00 | 6.00 | 15.00 | 315 bar 4568 psi |
| AMNS08T16 | 1/2 | 27 | 24.00 | 14.00 | 6.00 | 16.00 | 315 bar 4568 psi |
| AMNS08T16FP | 1/2 | 27 | 24.00 | 14.00 | 6.00 | 16.00 | 315 bar 4568 psi |
| AMNS12T25 | 3/4 | 32 | 26.00 | 16.00 | 6.00 | 25.00 | 250 bar 3625 psi |
| AMNS16T26 | 1 | 41 | 31.00 | 18.00 | 7.00 | 26.00 | 200 bar 2900 psi |
