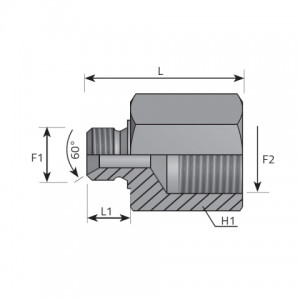

| Koд | F1 inch | F2 inch | H1 mm | L mm | L1 mm | Давление |
|---|---|---|---|---|---|---|
| ARMFL0204 | 1/8 | 1/4 | 19 | 29.00 | 9.50 | 350 bar 5075 psi |
| ARMFL0206 | 1/8 | 3/8 | 22 | 31.50 | 9.50 | 350 bar 5075 psi |
| ARMFL0402 | 1/4 | 1/8 | 19 | 32.00 | 11.00 | 350 bar 5075 psi |
| ARMFL0406 | 1/4 | 3/8 | 22 | 33.00 | 11.00 | 350 bar 5075 psi |
| ARMFL0408 | 1/4 | 1/2 | 27 | 38.00 | 11.00 | 315 bar 4568 psi |
| ARMFL0412 | 1/4 | 3/4 | 32 | 41.00 | 11.00 | 250 bar 3625 psi |
| ARMFL0604 | 3/8 | 1/4 | 22 | 35.00 | 12.50 | 350 bar 5075 psi |
| ARMFL0608 | 3/8 | 1/2 | 27 | 40.00 | 12.50 | 315 bar 4568 psi |
| ARMFL0612 | 3/8 | 3/4 | 32 | 41.50 | 12.50 | 250 bar 3625 psi |
| ARMFL0616 | 3/8 | 1 | 41 | 43.50 | 12.50 | 200 bar 2900 psi |
| ARMFL0804 | 1/2 | 1/4 | 27 | 41.00 | 14.00 | 315 bar 4568 psi |
| ARMFL0806 | 1/2 | 3/8 | 27 | 41.00 | 14.00 | 315 bar 4568 psi |
| ARMFL0812 | 1/2 | 3/4 | 32 | 46.00 | 14.00 | 250 bar 3625 psi |
| ARMFL0816 | 1/2 | 1 | 41 | 53.50 | 14.00 | 200 bar 2900 psi |
| ARMFL0820 | 1/2 | 1 1/4 | 50 | 51.00 | 14.00 | 160 bar 2320 psi |
| ARMFL0824 | 1/2 | 1 1/2 | 55 | 52.50 | 14.00 | 125 bar 1813 psi |
| ARMFL1204 | 3/4 | 1/4 | 32 | 38.00 | 16.00 | 250 bar 3625 psi |
| ARMFL1206 | 3/4 | 3/8 | 32 | 42.00 | 16.00 | 250 bar 3625 psi |
| ARMFL1208 | 3/4 | 1/2 | 32 | 43.00 | 16.00 | 250 bar 3625 psi |
| ARMFL1216 | 3/4 | 1 | 41 | 49.00 | 16.00 | 200 bar 2900 psi |
| ARMFL1220 | 3/4 | 1 1/4 | 50 | 51.00 | 16.00 | 160 bar 2320 psi |
| ARMFL1224 | 3/4 | 1 1/2 | 55 | 54.00 | 16.00 | 125 bar 1813 psi |
| ARMFL1606 | 1 | 3/8 | 41 | 49.50 | 18.00 | 200 bar 2900 psi |
| ARMFL1608 | 1 | 1/2 | 41 | 49.50 | 18.00 | 200 bar 2900 psi |
| ARMFL1612 | 1 | 3/4 | 41 | 64.00 | 18.00 | 200 bar 2900 psi |
| ARMFL1620 | 1 | 1 1/4 | 50 | 54.00 | 18.00 | 160 bar 2320 psi |
| ARMFL1624 | 1 | 1 1/2 | 55 | 54.00 | 18.00 | 125 bar 1813 psi |
| ARMFL1632 | 1 | 2 | 70 | 58.00 | 18.00 | 80 bar 1160 psi |
| ARMFL2012 | 1 1/4 | 3/4 | 50 | 48.00 | 20.00 | 160 bar 2320 psi |
| ARMFL2016 | 1 1/4 | 1 | 50 | 61.00 | 20.00 | 160 bar 2320 psi |
| ARMFL2024 | 1 1/4 | 1 1/2 | 55 | 61.00 | 20.00 | 125 bar 1813 psi |
| ARMFL2032 | 1 1/4 | 2 | 70 | 61.00 | 20.00 | 80 bar 1160 psi |
| ARMFL2412 | 1 1/2 | 3/4 | 55 | 56.00 | 21.00 | 125 bar 1813 psi |
| ARMFL2416 | 1 1/2 | 1 | 55 | 62.00 | 21.00 | 125 bar 1813 psi |
| ARMFL2420 | 1 1/2 | 1 1/4 | 55 | 62.00 | 21.00 | 125 bar 1813 psi |
| ARMFL2432 | 1 1/2 | 2 | 70 | 62.00 | 21.00 | 80 bar 1160 psi |
| ARMFL3216 | 2 | 1 | 70 | 57.00 | 25.00 | 80 bar 1160 psi |
| ARMFL3220 | 2 | 1 1/4 | 70 | 57.00 | 25.00 | 80 bar 1160 psi |
| ARMFL3224 | 2 | 1 1/2 | 70 | 57.00 | 25.00 | 80 bar 1160 psi |
