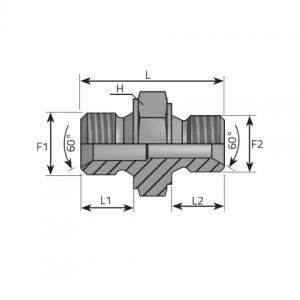

| Koд | F1 inch | F2 inch | H mm | L mm | L1 mm | L2 mm | Давление |
|---|---|---|---|---|---|---|---|
| ARGG0402 | 1/4 | 1/8 | 19 | 27.50 | 11.00 | 9.50 | 350 bar 5075 psi |
| ARGG0602 | 3/8 | 1/8 | 22 | 30.00 | 12.50 | 9.50 | 350 bar 5075 psi |
| ARGG0604 | 3/8 | 1/4 | 22 | 31.50 | 12.50 | 11.00 | 350 bar 5075 psi |
| ARGG0804 | 1/2 | 1/4 | 27 | 35.00 | 14.00 | 11.00 | 315 bar 4568 psi |
| ARGG0806 | 1/2 | 3/8 | 27 | 36.50 | 14.00 | 12.50 | 315 bar 4568 psi |
| ARGG1006 | 5/8 | 3/8 | 30 | 38.50 | 16.00 | 12.50 | 315 bar 4568 psi |
| ARGG1008 | 5/8 | 1/2 | 30 | 40.00 | 16.00 | 14.00 | 315 bar 4568 psi |
| ARGG1204 | 3/4 | 1/4 | 32 | 37.50 | 16.00 | 11.00 | 250 bar 3625 psi |
| ARGG1206 | 3/4 | 3/8 | 32 | 38.50 | 16.00 | 12.50 | 250 bar 3625 psi |
| ARGG1208 | 3/4 | 1/2 | 32 | 40.00 | 16.00 | 14.00 | 250 bar 3625 psi |
| ARGG1210 | 3/4 | 5/8 | 32 | 43.50 | 16.00 | 16.00 | 250 bar 3625 psi |
| ARGG1606 | 1 | 3/8 | 41 | 42.50 | 18.00 | 12.50 | 200 bar 2900 psi |
| ARGG1608 | 1 | 1/2 | 41 | 44.00 | 18.00 | 14.00 | 200 bar 2900 psi |
| ARGG1610 | 1 | 5/8 | 41 | 46.00 | 18.00 | 16.00 | 200 bar 2900 psi |
| ARGG1612 | 1 | 3/4 | 41 | 46.00 | 18.00 | 16.00 | 200 bar 2900 psi |
| ARGG2008 | 1 1/4 | 1/2 | 50 | 48.50 | 20.00 | 14.00 | 160 bar 2320 psi |
| ARGG2012 | 1 1/4 | 3/4 | 50 | 50.50 | 20.00 | 16.00 | 160 bar 2320 psi |
| ARGG2016 | 1 1/4 | 1 | 50 | 52.50 | 20.00 | 18.00 | 160 bar 2320 psi |
| ARGG2412 | 1 1/2 | 3/4 | 55 | 53.00 | 22.00 | 16.00 | 125 bar 1813 psi |
| ARGG2416 | 1 1/2 | 1 | 55 | 55.00 | 22.00 | 18.00 | 125 bar 1813 psi |
| ARGG2420 | 1 1/2 | 1 1/4 | 55 | 57.00 | 22.00 | 20.00 | 125 bar 1813 psi |
| ARGG3216 | 2 | 1 | 70 | 60.00 | 25.00 | 18.00 | 80 bar 1160 psi |
| ARGG3220 | 2 | 1 1/4 | 70 | 60.50 | 25.00 | 20.00 | 80 bar 1160 psi |
| ARGG3224 | 2 | 1 1/2 | 70 | 63.00 | 25.00 | 21.00 | 80 bar 1160 psi |
