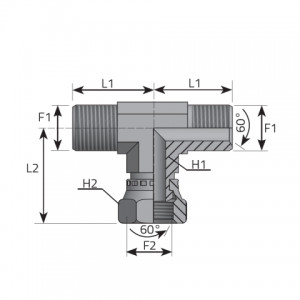

| Koд | F1 mm | F1 Pitch mm | F2 mm | F2 Pitch mm | H1 mm | H2 mm | L1 mm | L2 mm | Давление |
|---|---|---|---|---|---|---|---|---|---|
| TMM12FGM12P | M 12.0 | X 1.50 | M 12.0 | X 1.50 | 14 | 15 | 20.00 | 28.50 | 350 bar 5075 psi |
| TMM14FGM14P | M 14.0 | X 1.50 | M 14.0 | X 1.50 | 14 | 19 | 27.00 | 30.50 | 350 bar 5075 psi |
| TMM16FGM16P | M 16.0 | X 1.50 | M 16.0 | X 1.50 | 19 | 22 | 29.00 | 36.00 | 350 bar 5075 psi |
| TMM18FGM18P | M 18.0 | X 1.50 | M 18.0 | X 1.50 | 19 | 22 | 29.00 | 36.00 | 315 bar 4568 psi |
| TMM20FGM20P | M 20.0 | X 1.50 | M 20.0 | X 1.50 | 22 | 27 | 36.50 | 39.00 | 315 bar 4568 psi |
| TMM22FGM22P | M 22.0 | X 1.50 | M 22.0 | X 1.50 | 22 | 27 | 36.50 | 39.00 | 315 bar 4568 psi |
| TMM26FGM26P | M 26.0 | X 1.50 | M 26.0 | X 1.50 | 27 | 32 | 42.50 | 45.00 | 250 bar 3625 psi |
| TMM30FGM30P | M 30.0 | X 1.50 | M 30.0 | X 1.50 | 33 | 41 | 50.00 | 50.00 | 200 bar 2900 psi |
