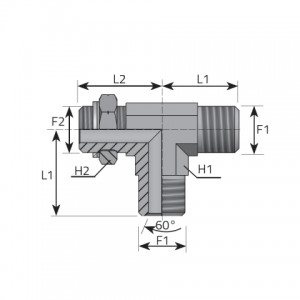

| Koд | F1 mm | F1 Pitch mm | F2 mm | F2 Pitch mm | H1 mm | H2 mm | L1 mm | L2 mm | Давление |
|---|---|---|---|---|---|---|---|---|---|
| TMM10MOMR12B | M 10.0 | X 1.00 | M 12.0 | X 1.50 | 14 | 19 | 26.00 | 21.00 | 350 bar 5075 psi |
| TMM12MOMR12B | M 12.0 | X 1.50 | M 12.0 | X 1.50 | 14 | 19 | 26.00 | 21.00 | 350 bar 5075 psi |
| TMM12MOMR14B | M 12.0 | X 1.50 | M 14.0 | X 1.50 | 14 | 19 | 32.00 | 22.00 | 350 bar 5075 psi |
| TMM14MOMR14B | M 14.0 | X 1.50 | M 14.0 | X 1.50 | 14 | 19 | 34.00 | 26.00 | 350 bar 5075 psi |
| TMM14MOMR16B | M 14.0 | X 1.50 | M 16.0 | X 1.50 | 19 | 19 | 32.00 | 27.00 | 350 bar 5075 psi |
| TMM16MOMR16B | M 16.0 | X 1.50 | M 16.0 | X 1.50 | 19 | 22 | 37.00 | 29.00 | 350 bar 5075 psi |
| TMM16MOMR18B | M 16.0 | X 1.50 | M 18.0 | X 1.50 | 19 | 22 | 37.00 | 29.00 | 315 bar 4568 psi |
| TMM18MOMR18B | M 18.0 | X 1.50 | M 18.0 | X 1.50 | 19 | 22 | 37.00 | 29.00 | 315 bar 4568 psi |
| TMM18MOMR22B | M 18.0 | X 1.50 | M 22.0 | X 1.50 | 22 | 27 | 45.00 | 36.50 | 315 bar 4568 psi |
| TMM22MOMR22B | M 22.0 | X 1.50 | M 22.0 | X 1.50 | 22 | 27 | 45.00 | 36.50 | 315 bar 4568 psi |
| TMM26MOMR22B | M 26.0 | X 1.50 | M 22.0 | X 1.50 | 27 | 36 | 48.50 | 38.00 | 250 bar 3625 psi |
| TMM26MOMR27B | M 26.0 | X 1.50 | M 27.0 | X 2.00 | 27 | 36 | 48.50 | 42.00 | 200 bar 2900 psi |
| TMM30MOMR27B | M 30.0 | X 1.50 | M 27.0 | X 2.00 | 33 | 41 | 53.00 | 47.00 | 180 bar 2610 psi |
| TMM30MOMR33B | M 30.0 | X 1.50 | M 33.0 | X 2.00 | 33 | 41 | 53.00 | 50.00 | 180 bar 2610 psi |
