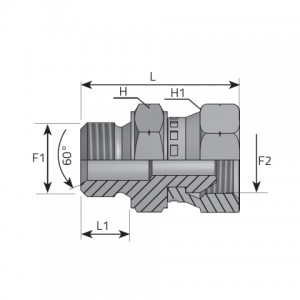

| Koд | F1 mm | F1 Pitch mm | F2 mm | F2 Pitch mm | H mm | H1 mm | L mm | L1 mm | Давление |
|---|---|---|---|---|---|---|---|---|---|
| AMFDM1212 | M 12.0 | X 1.50 | M 12.0 | X 1.50 | 17 | 17 | 34.00 | 11.00 | 350 bar 5075 psi |
| AMFDM1414 | M 14.0 | X 1.50 | M 14.0 | X 1.50 | 19 | 19 | 35.00 | 11.00 | 350 bar 5075 psi |
| AMFDM1616 | M 16.0 | X 1.50 | M 16.0 | X 1.50 | 22 | 22 | 41.50 | 12.50 | 350 bar 5075 psi |
| AMFDM1818 | M 18.0 | X 1.50 | M 18.0 | X 1.50 | 22 | 24 | 42.00 | 14.00 | 315 bar 4568 psi |
| AMFDM2020 | M 20.0 | X 1.50 | M 20.0 | X 1.50 | 27 | 27 | 45.50 | 14.00 | 315 bar 4568 psi |
| AMFDM2222 | M 22.0 | X 1.50 | M 22.0 | X 1.50 | 27 | 27 | 45.50 | 14.00 | 315 bar 4568 psi |
| AMFDM2424 | M 24.0 | X 1.50 | M 24.0 | X 1.50 | 30 | 30 | 49.00 | 16.00 | 315 bar 4568 psi |
| AMFDM2626 | M 26.0 | X 1.50 | M 26.0 | X 1.50 | 32 | 32 | 51.50 | 16.00 | 250 bar 3625 psi |
| AMFDM3030 | M 30.0 | X 1.50 | M 30.0 | X 1.50 | 38 | 36 | 57.50 | 18.00 | 200 bar 2900 psi |
