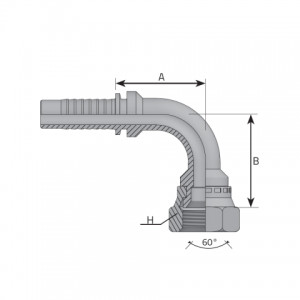

| Kods | D.N. | Šļūtene | T inch | T/1 inch | A mm | A inch | B mm | B inch | H mm | H inch | Spiediens |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F90T0404 | -4 | 6.40 mm 1/4 “ |
1/4 | 19.0 | 23.00 | 0.910 “ | 26.00 | 1.020 “ | 19 | 0.750 “ | 350 bar 5076 psi |
| F90T0606 | -6 | 9.50 mm 3/8 “ |
3/8 | 19.0 | 33.00 | 1.300 “ | 35.50 | 1.400 “ | 22 | 0.870 “ | 280 bar 4061 psi |
| F90T0808 | -8 | 12.80 mm 1/2 “ |
1/2 | 14.0 | 39.00 | 1.540 “ | 41.00 | 1.610 “ | 27 | 1.060 “ | 200 bar 2901 psi |
| F90T1212 | -12 | 19.00 mm 3/4 “ |
3/4 | 14.0 | 53.50 | 2.110 “ | 54.50 | 2.150 “ | 32 | 1.260 “ | 200 bar 2901 psi |
| F90T1616 | -16 | 25.40 mm 1 “ |
1 | 11.0 | 73.00 | 2.870 “ | 68.00 | 2.680 “ | 38 | 1.500 “ | 160 bar 2320 psi |
| F90T2020 | -20 | 31.80 mm 1 1/4 “ |
1 1/2 | 11.0 | 89.00 | 3.500 “ | 88.50 | 3.480 “ | 50 | 1.970 “ | 125 bar 1813 psi |
| F90T2424 | -24 | 38.10 mm 1 1/2 “ |
1 1/2 | 11.0 | 101.00 | 3.980 “ | 109.50 | 4.310 “ | 55 | 2.170 “ | 100 bar 1450 psi |
