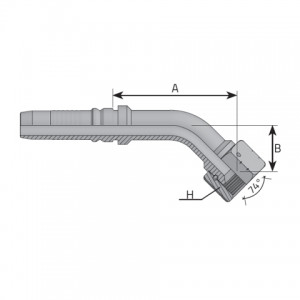

| Kods | D.N. | Šļūtene | T inch | T/1 inch | A mm | A inch | B mm | B inch | H mm | H inch | Spiediens |
|---|---|---|---|---|---|---|---|---|---|---|---|
| KF45J1212 | -12 | 19.00 mm 3/4 “ |
1 1/16 | 12.0 | 59.50 | 2.340 “ | 29.00 | 1.140 “ | 32 | 1.260 “ | 420 bar 6091 psi |
| KF45J1214 | -12 | 19.00 mm 3/4 “ |
1 3/16 | 12.0 | 60.50 | 2.380 “ | 29.00 | 1.140 “ | 36 | 1.420 “ | 420 bar 6091 psi |
| KF45J1216 | -12 | 19.00 mm 3/4 “ |
1 5/16 | 12.0 | 60.50 | 2.380 “ | 29.00 | 1.140 “ | 41 | 1.610 “ | 420 bar 6091 psi |
| KF45J1616 | -16 | 25.40 mm 1 “ |
1 5/16 | 12.0 | 86.00 | 3.390 “ | 39.50 | 1.560 “ | 41 | 1.610 “ | 414 bar 6004 psi |
| KF45J1620 | -16 | 25.40 mm 1 “ |
1 5/8 | 12.0 | 87.00 | 3.430 “ | 38.50 | 1.520 “ | 50 | 1.970 “ | 414 bar 6004 psi |
| KF45J2020 | -20 | 31.80 mm 1 1/4 “ |
1 5/8 | 12.0 | 99.50 | 3.920 “ | 44.00 | 1.730 “ | 50 | 1.970 “ | 414 bar 6004 psi |
| KF45J2024 | -20 | 31.80 mm 1 1/4 “ |
1 7/8 | 12.0 | 101.50 | 4.000 “ | 45.00 | 1.770 “ | 55 | 2.170 “ | 414 bar 6004 psi |
| KF45J2424 | -24 | 38.10 mm 1 1/2 “ |
1 7/8 | 12.0 | 116.50 | 4.590 “ | 45.00 | 1.770 “ | 55 | 2.170 “ | 345 bar 5004 psi |
| KF45J3232 | -32 | 50.80 mm 2 “ |
2 1/2 | 12.0 | 156.00 | 6.140 “ | 65.80 | 2.590 “ | 70 | 2.760 “ | 345 bar 5004 psi |
