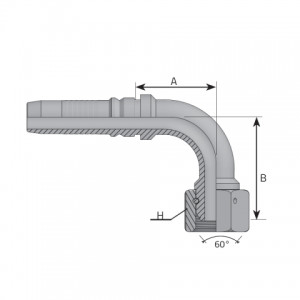

| Kods | D.N. | Šļūtene | T inch | T/1 inch | A mm | A inch | B mm | B inch | H mm | H inch | Spiediens |
|---|---|---|---|---|---|---|---|---|---|---|---|
| KF90G1212 | -12 | 19.00 mm 3/4 “ |
3/4 | 14.0 | 54.00 | 2.130 “ | 59.00 | 2.320 “ | 32 | 1.260 “ | 420 bar 6091 psi |
| KF90G1616 | -16 | 25.40 mm 1 “ |
1 | 11.0 | 70.50 | 2.780 “ | 72.00 | 2.830 “ | 38 | 1.500 “ | 420 bar 6091 psi |
| KF90G1620 | -16 | 25.40 mm 1 “ |
1 1/4 | 11.0 | 70.50 | 2.780 “ | 80.00 | 3.150 “ | 50 | 1.970 “ | 420 bar 6091 psi |
| KF90G2020 | -20 | 31.80 mm 1 1/4 “ |
1 1/4 | 11.0 | 87.70 | 3.450 “ | 93.00 | 3.660 “ | 50 | 1.970 “ | 420 bar 6091 psi |
| KF90G2424 | -24 | 38.10 mm 1 1/2 “ |
1 1/2 | 11.0 | 99.50 | 3.920 “ | 114.00 | 4.490 “ | 55 | 2.170 “ | 345 bar 5004 psi |
| KF90G3232 | -32 | 50.80 mm 2 “ |
2 | 11.0 | 135.00 | 5.310 “ | 136.00 | 5.350 “ | 70 | 2.760 “ | 345 bar 5004 psi |
