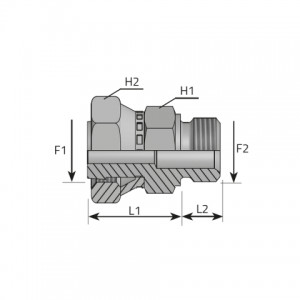

| Kods | F1 inch | F2 inch | H1 mm | H2 mm | L1 mm | L2 mm | Spiediens |
|---|---|---|---|---|---|---|---|
| AFGO06MG02SV | 9/16 | 1/8 | 14 | 17 | 23.50 | 8.00 | 400 bar 5801 psi |
| AFGO06MG04SV | 9/16 | 1/4 | 14 | 17 | 23.50 | 12.00 | 400 bar 5801 psi |
| AFGO06MG06SV | 9/16 | 3/8 | 17 | 17 | 25.00 | 12.00 | 400 bar 5801 psi |
| AFGO09MG04SV | 11/16 | 1/4 | 17 | 22 | 27.00 | 12.00 | 400 bar 5801 psi |
| AFGO09MG06SV | 11/16 | 3/8 | 22 | 22 | 27.00 | 12.00 | 400 bar 5801 psi |
| AFGO09MG08SV | 11/16 | 1/2 | 22 | 22 | 27.50 | 14.00 | 350 bar 5076 psi |
| AFGO11MG04SV | 13/16 | 1/4 | 19 | 24 | 30.50 | 11.00 | 400 bar 5801 psi |
| AFGO11MG06SV | 13/16 | 3/8 | 22 | 24 | 35.50 | 12.00 | 400 bar 5801 psi |
| AFGO11MG08SV | 13/16 | 1/2 | 27 | 24 | 30.50 | 14.00 | 350 bar 5076 psi |
| AFGO11MG12SV | 13/16 | 3/4 | 27 | 24 | 34.00 | 16.00 | 315 bar 4568 psi |
| AFGO13MG06SV | 1 | 3/8 | 24 | 30 | 36.50 | 12.00 | 400 bar 5801 psi |
| AFGO13MG08SV | 1 | 1/2 | 24 | 30 | 36.50 | 14.00 | 350 bar 5076 psi |
| AFGO13MG10SV | 1 | 5/8 | 24 | 30 | 36.50 | 16.00 | 350 bar 5076 psi |
| AFGO13MG12SV | 1 | 3/4 | 27 | 30 | 38.00 | 16.00 | 315 bar 4568 psi |
| AFGO14MG08SV | 1 3/16 | 1/2 | 30 | 36 | 40.50 | 14.00 | 350 bar 5076 psi |
| AFGO14MG12SV | 1 3/16 | 3/4 | 32 | 36 | 41.50 | 16.00 | 315 bar 4568 psi |
| AFGO14MG16SV | 1 3/16 | 1 | 36 | 36 | 42.00 | 19.00 | 250 bar 3625 psi |
| AFGO15MG12SV | 1 7/16 | 3/4 | 36 | 41 | 43.00 | 16.00 | 315 bar 4568 psi |
| AFGO15MG16SV | 1 7/16 | 1 | 41 | 41 | 43.00 | 18.00 | 250 bar 3625 psi |
| AFGO15MG20SV | 1 7/16 | 1 1/4 | 46 | 41 | 44.50 | 20.00 | 200 bar 2900 psi |
| AFGO21MG20SV | 1 11/16 | 1 1/4 | 50 | 50 | 44.50 | 20.00 | 200 bar 2900 psi |
| AFGO32MG24SV | 2 | 1 1/2 | 55 | 60 | 46.50 | 22.00 | 160 bar 2320 psi |
